PROPORTIONAL DIRECTIONAL VALVE 4WRZE10W8-25-7X/6EG24N9EK31/A1D3M

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

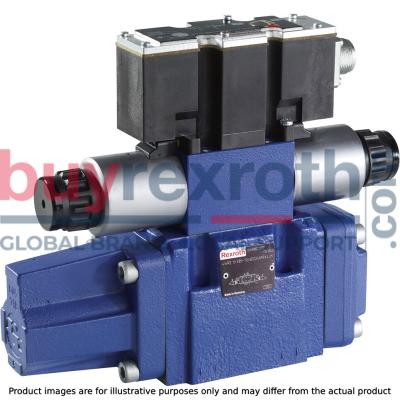

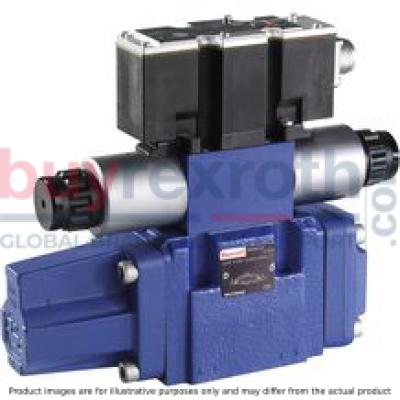

The Bosch Rexroth 4WRZE10W8-25-7X/6EG24N9EK31/A1D3M (R901011741) is a high-performance industrial hydraulic valve designed for reliable control of oil flow direction based on the hydraulic symbol W. This pilot-operated, stage proportional directional valve is equipped with integrated electronics, providing precise control over the flow and direction. The valve features a max pressure capacity and an electrical connection with a connector pole PE according to EN standards. It has multiple ports for connectivity and utilizes electrical actuation with integrated electronics for operation. The 4WRZE10W8-25-7X/6EG24N9EK31/A1D3M valve is designed for subplate mounting with a porting pattern that aligns with ISO standards, ensuring compatibility and ease of installation in diverse hydraulic systems. The nominal flow rate is optimized for efficient performance, while the supply voltage requirement is set at VDC. Users can benefit from its analog connectivity with a command value range of V, allowing for smooth integration into existing control systems. This model includes NBR seals to maintain system integrity and prevent leaks, supporting use with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. Additionally, it comes with an optional manual override feature that allows operators to manually adjust the valve in the absence of electrical power; however, caution must be exercised to prevent accidental activation and potential uncontrolled machine movements. The Bosch Rexroth 4WRZE10W8-25-7X/6EG24N9EK31/A1D3M valve stands out for its robust construction and innovative design that incorporates a spool valve pilot-operated mechanism with internal pilot oil supply and external return. It also includes a pressure-reducing valve to enhance system stability and performance. The spring-centered control spool ensures that the valve returns to its neutral position when de-energized, maintaining safety and reliability in various industrial applications.
