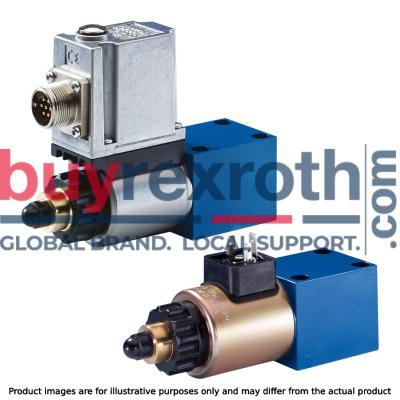

PROPORTIONAL PRESSURE RELIEF VALVE DBET-6X/315G24K4V
Manufacturer: Bosch Rexroth
Material #: R901000847
Model : DBET-6X/315G24K4V
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth DBET-6X/315G24K4V (R901000847) is a high-performance industrial hydraulic valve designed for reliable pressure limitation in accordance with a given command value signal. This direct-actuated proportional pressure relief valve is suitable for electrical actuation with external electronics, ensuring precise control over system pressure limits. With a pressure adjustment range of up to 315 bar and a maximum flow rate of 30 l/min, this valve is capable of handling demanding applications.
The DBET-6X/315G24K4V features a spool symbol P T and supports a maximum pressure of 315 bar. It comes equipped with an electrical connector that adheres to the EN 175301-803 standard, featuring a connector pole + PE. This model is designed for subplate mounting with connection diagrams conforming to both NFPA T3.5.1 R2 D03 and ISO 6264 pattern, ensuring compatibility with standard mounting interfaces.
With its size 6 CETOP designation, the valve supports multiple ports and offers flexibility in hydraulic circuit design. The supply voltage required for operation is 24 VDC, which powers the proportional solenoid responsible for translating electrical signals into mechanical force, thereby controlling the system pressure.
The construction includes FKM seals, making it compatible with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR types. The robust design ensures reliability in various applications where accurate and consistent pressure regulation is critical.
In summary, the Bosch Rexroth DBET-6X/315G24K4V is engineered to provide precise control over system pressures in industrial environments requiring subplate-mounted solutions. Its direct actuation and compatibility with an array of hydraulic fluids make it versatile for use across different systems where performance and reliability are paramount.
$1,697.00 USD
Availability: 2 In Stock
Available for immediate shipmentQty: Delivered as early as May 17, 2024 when ordered in
This product is eligible for factory repair.
Size 6, P → T, electrical with external amplifier, 24 V DC
Industrial hydraulic valve in a high performance range. Reliable limitation of the pressure to the command value signal.
Unpacked Weight: 1.42 kg
Direct operated valve for limiting a system pressure Proportional solenoid operation Proportional solenoid with central thread and detachable coil For subplate mounting: Porting pattern according to ISO 4401 Amplifier in modular design, Euro-card format and as plug-in amplifier Individually adjustable upwards and downwards ramp, fine adjustment of the command value pressure characteristic curve
General information
Proportional pressure relief valves of type DBET are remote control valves with seat design and are used for system pressure limitation. Operation by means of a proportional solenoid with central thread and detachable coil. The interior of the solenoid is connected to port T or Y and is filled with the hydraulic fluid. Dependent on the electric command value, these valves can be used to steplessly set the system pressure to be limited. The valves mainly consist of the housing (1), a proportional solenoid (2), the valve seat (3) and the valve poppet (4).
Basic principle
For the setting of the system pressure, a command value is specified at the control electronics. Dependent on the command value, the electronics actuate the solenoid coil with electric current. The proportional solenoid converts the electric current into mechanical force that acts on the valve poppet (4) via the armature plunger (5). The valve poppet (4) pushes onto the valve seat (3) and blocks the connection between port P and T or Y. If the hydraulic force on the valve poppet (4) equals the solenoid force, the valve controls the set pressure by lifting the valve poppet (4) off the valve seat (3) and thus enabling hydraulic fluid to flow from port P to T or Y. If the command value is zero, the control electronics only apply the minimum control current to the proportional solenoid (2) and the minimum set pressure is set.
Type DBET
(measured with HLP46, ϑOil = 40 ±5 °C)
Pressure in port P dependent on the command value (flow = 0.8 l/min)
| 1) | 1) With valve type DBET, the manufacturing tolerance at the external amplifier can be changed using the command value attenuator potentiometer "Gw". The digital amplifier is set using the "Limit” parameter. Here, the control current according to the technical data must not be exceeded. In order to be able to adjust several valves to the same characteristic curve, do not set the pressure higher than the maximum set pressure of the pressure rating with command value 100%. |
Pressure in port P dependent on command value /Comparison DBET series 5X-6X / Pressure rating 200 bar (with amplifier VT-VSPA-1-1X with 800 mA coil)
Current drop with increasing ambient temperature, 24 V and 100% duty cycle
| 1) |
Notice: With increased temperature, the solenoid current will drop. Thus, the set pressure differs accordingly. |
Pressure rating 50 bar
Pressure rating 100 bar
Pressure rating 200 bar
Pressure rating 315 bar
| 1) | In case of characteristic curve 5, the command value may not exceed the maximum flow of 1.4 l/min |
Pressure rating 350 bar
| 1) | In case of characteristic curve 5, the command value may not exceed the maximum flow of 0.8 l/min |
Pressure rating 420 bar
| 1) | In case of characteristic curve 5, the command value may not exceed the maximum flow of 0.8 l/min |
Pressure rating 50 bar
Pressure rating 100 bar
Pressure rating 200 bar
Pressure rating 315 bar
Pressure rating 350 bar
Pressure rating 420 bar
Notice:
The characteristic curves were measured without counter pressure in port T. (Pt = 0 bar)
Minimum control current ≤ 100 mA
(This current is reached with a command value of 0 V and/or 4 mA.)
Pilot oil return, internal
Pilot oil return, external
Connection at mating connector
Connection at the connector
Dimensions in mm
|
1 |
Proportional solenoid |
|
2 |
Valve housing |
|
3 |
Name plate |
|
4 |
Identical seal rings for ports A, B, P, and T |
|
5 |
mating connector according to DIN EN 175301-803 |
|
6 |
Space required to remove the mating connector |
|
7 |
Blind counterbores A and B |
|
8 |
With version ..Y.. (external pilot oil return) port Y is internally connected to port T. Port T is not plugged. |
|
9 |
Machined valve contact surface; porting pattern according to ISO 4401-03-02-0-05 |
Recommended valve mounting screws (separate order):
4 hexagon socket head cap screws ISO 4762 - M5 x 45 - 10.9-flZn-240h-L
Tightening torque MA = 7 Nm ± 10%; material no. R913000140
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
