LC63DR80E7X/V

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

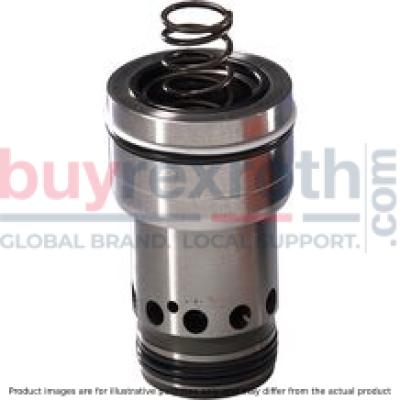

The Bosch Rexroth LC63DR80E7X/V (R900978751) is a sophisticated way cartridge valve designed for pressure functions, which operates as a pilot-controlled valve in seat or spool design. This model is specifically crafted to be integrated into a standardized receiving hole according to DIN ISO norms and is securely sealed with a control cover. The LC63DR80E7X/V features an integrated pilot control valve for manual or electrically proportional pressure adjustment, which can be found within the control cover or mounted on it following DIN specifications. This Bosch Rexroth cartridge valve enables various pressure functions by combining it with different control covers. It is particularly tailored for pressure reducing applications, maintaining an open rest position. The design of this spool valve does not include an area difference, meaning no effective areas at port B, which is crucial for its operation in pressure reduction scenarios. In terms of functionality, the effective pressure at port A is conveyed through the pilot oil supply orifice to the spring side of the spool. This allows the spool to remain open due to spring force under set performance limits and pressures, enabling free flow from port B to port A. When the set pressure is reached, the spool closes and reduces the pressure at port A according to its specific pressure-flow characteristics. The LC63DR80E7X/V model boasts a size that supports a maximum flow rate per minute as specified by its order details. This product's versatility and precision engineering make it suitable for complex hydraulic systems requiring reliable pressure regulation and reduction capabilities.
