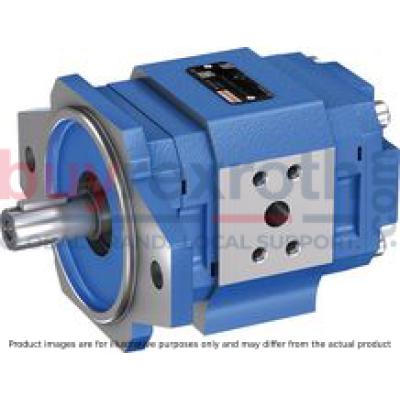

INTERNAL GEAR PUMP PGH3-2X/011RR07VU2

Manufacturer: Bosch Rexroth

Material #: R900961556

Model : PGH3-2X/011RR07VU2

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth PGH3-2X/011RR07VU2 (R900961556) is an advanced internal gear pump designed for industrial applications that require reliable and efficient fluid transfer in an open circuit. This pump is engineered for variable-speed drives, offering a low noise level and reduced pulsation due to its sophisticated design. The pump's high efficiency is attributed to its gap compensation feature, which ensures optimal performance even at low speeds and varying viscosities. Constructed with a durable cast iron housing, the PGH3-2X/011RR07VU2 is built to withstand continuous operation without load cycle limitations. Its flexibility in system integration is evident as it can be combined with other Rexroth pumps for customized hydraulic solutions. The constant displacement type of this model ensures consistent flow rates, while the counterclockwise rotation direction caters to specific system requirements. Equipped with FKM seals, the pump is compatible with a variety of hydraulic fluids including HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDR, and HFDU. The geared shaft type T DP conforms to ISO standards ensuring high-quality performance and compatibility. With a maximum pressure capability and a speed range that accommodates both minimum and maximum operational conditions, this pump maintains optimal fluid dynamics. The PGH3-2X/011RR07VU2 features an involute tooth system that reduces flow and pressure pulsation contributing to its quiet operation. The hydrodynamic and hydrostatic bearings provide stable support for the internal components during operation. This unit's robust construction and precision engineering make it suitable for a wide range of industrial applications where consistent hydraulic power is critical.

Destination

$3,097.00 USD

Availability: 5 In Stock

Ships from US

Add to Cart

Qty:
Delivered as early as June 8, 2026

$3,251.85 USD

Availability: Backordered

Ships from CA

Add to Cart

Qty:
Delivered as early as March 31, 2027

This product is eligible for factory repair.

Repairs from $570.00

INTERNAL GEAR PUMP PGH3-2X/011RR07VU2

Internal gear pump, size 11, pressure 350 bar for industrial applications, open circuit

Suitable for variable-speed drive. Low noise and pulsation level. High efficiency thanks to gap compensation. Cast iron housing, no load cycle limitation. Can be combined flexibly with other Rexroth pumps.

Unpacked Weight: 6.508 kg

Fixed displacement Low operating noise Low flow pulsation High efficiency also at low speed and viscosity due to sealing gap compensation Suitable for broad viscosity and speed ranges All frame sizes and sizes can be arbitrarily combined Can be combined with internal gear pumps, radial piston pumps and external gear pumps

Set-up

Hydraulic pumps of type PGH are gap-compensated internal gear pumps with constant displacement.

They basically comprise of housing (1.1), bearing cover (1.2), internal gear (2), pinion shaft (3), plain bearings (4), axial washers (5), end cover (6), mounting flange (7) and stop pin (8), as well as the segment filler element (9) consisting of segment (9.1), segment support (9.2) and the seal rolls (9.3).

Suction and displacement procedure

The hydrodynamically supported pinion shaft (3) drives the internally geared internal gear (2) in the displayed direction of rotation.

During the rotation, there is a volume increase over an angle of approx. 90° in the suction range. An underpressure results and fluid flows into the chambers.

The sickle-shaped segment filler element (9) separates suction and pressure chamber. In the pressure chamber, the teeth of the pinion shaft (3) engage in the space between the teeth of the internal gear (2) again. The liquid is displaced via the pressure channel (P).

Axial compensation

The axial compensation force FA takes effect in the area of the pressure chamber and is generated with the pressure field (10) in the axial washers (5).

So the axial longitudinal gaps between the rotating and the fixed parts are extraordinarily small and ensure perfect axial sealing of the pressure chamber.

Radial compensation

The radial compensation force FR acts on segment (9.1) and segment support (9.2).

Dependent on the operating pressure, the two segment filler elements (9.1) and (9.2) are pressed against the head diameters of pinion shaft (3) and internal gear (2).

The area ratios and the position of the seal rolls (9.3) between the segment and segment support are designed so that an almost leakage gap-free sealing between internal gear (2), segment filler element (9) and pinion shaft (3) is achieved.

Spring elements under the seal rolls (9.3) ensure sufficient contact pressure, also with very low pressures.

Hydrodynamic and hydrostatic mounting

The forces acting on the pinion shaft (3) are accepted by hydrodynamically lubricated radial plain bearings (4); the forces acting on the internal gear (2) by the hydrostatic bearing (11).

Gear tooth system

The toothing is an involute tooth system. Its large meshing length results in little flow and pressure pulsation; these little pulsation rates considerably contribute to the low-noise running.

PGH-type hydraulic pumps are gap-compensated internal gear pumps with fixed displacement. The hydrodynamically mounted pinion shaft drives the internal gear. The pinion shaft and internal gear tooth clearances opening in the suction range suck in the hydraulic fluid and transport it to the pressure range. The suction and pressure range are separated by the radial compensation elements and the tooth engagement between the internal gear and pinion shaft.

Cast iron housing
Internal gear pump with constant displacement
For industrial applications in open circuit
With FKM seals
Maximum operating pressure 350 bar
Frame size 2, 3
Size 5 … 16

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD

Displacement type	constant
Size	11
Max. pressure	350
Max. flow	33
Shaft end	Geared 16-4, 9T 16/32 DP, ISO 3019-1
Through-drive	with
Direction of rotation	counterclockwise rotation
Shaft end	Geared 16-4, 9T 16/32 DP, ISO 3019-1
Fastening	2-hole mounting flange 101-2 according to ISO 3019-1
Hydraulic fluid	HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDR,HFDU
Seals	FKM
Fastening	2-hole mounting flange 101-2, ISO 3019-1
Speed min.	600
Productgroup ID	9,10,11,12,13,14
Speed max.	3000
Weight	6.508

01	02	03		04		05	06	07	08	09	10	11
PG	H		–	2X	/				07		U2

Type
01	Internal gear pump, fixed displacement, gap-compensated		PG
Series
02	High-pressure pump, peak pressure 350 bar		H
Frame sizes BG
03	BG2		2
	BG3		3
Component series
04	Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions)		2X
Sizes
05	BG2	5	005
		6	006
		8	008
	BG3	11	011
		13	013
		16	016
Directions of rotation
06	Viewed on drive shaft	right	R
		counterclockwise	L
Drive shafts
07	Cylindrical shaft with fitting key, DIN 6885		E
	Splined shaft SAE J744 with involute tooth system according to ANSI B92.1a	16-4 (A) 9T 16/32DP	R
		19-4 11T 16/32DP	S
Line connections
08	Suction and pressure port according to SAE, pressure port standard pressure series		07
Seals
09	FKM (fluor-caoutchouc)		V
	FKM (fluorocarbon rubber), shaft seal ring made of NBR (nitrile rubber) 1)		W
Mounting flange
10	SAE 2-hole		U2
11	Further details in the plain text

1)	For HFC hydraulic fluids

Order example

PGH3-2X/016RE07VU2

Material number

R900951305

Not all variants according to the type key are possible! Please select the desired pump using the selection tables (dimensions) or after consultation with Bosch Rexroth.

01	02		03		04		05		06		07	08	09	10		11	12		13	14	15
		/		+		/		+		/					+			+

Type
01	2-fold		P2
	3-fold		P3
02	Series of the 1st pump 1)
03	Size of the 1st pump 1)
04	Series of the 2nd pump 1)
05	Size of the 2nd pump 1)
06	Series of the 3rd pump 1)
07	Size of the 3rd pump 1)
Direction of rotation
08	Viewed on drive shaft	right	R
		counterclockwise	L
Drive shaft of the 1st pump
09	Cylindrical shaft with fitting key, DIN 6885		E
	Splined shaft SAE J744 with involute tooth system according to ANSI B92.1a	16-4 (A) 9T 16/32DP	R
		19-4 11T 16/32DP	S
Line connection of the 1st pump
10	Suction and pressure port according to SAE, pressure port standard pressure series		07
Drive shaft of the 2nd pump 2)
11	Cylindrical shaft with fitting key, DIN 6885		A
	Splined shaft SAE J744 with involute tooth system according to ANSI B92.1a	16-4 (A) 9T 16/32DP	J
			R
Line connection of the 2nd pump
12	Suction and pressure port according to SAE, pressure port standard pressure series		07
Drive shaft of the 3rd pump 2)
13	Cylindrical shaft with fitting key, DIN 6885		A
	Splined shaft SAE J744 with involute tooth system according to ANSI B92.1a	16-4 (A) 9T 16/32DP	J
			R
Line connection of the 3rd pump
14	Suction and pressure port according to SAE, pressure port standard pressure series		07
Mounting flange of the 1st pump
15	SAE 2-hole 2)		U2

1)	Detailed information see type key
2)	See table Back pump of dimensions

Frame size						2			3
Size						5	6	8	11	13	16
Displacement	geometric			Vg	cm³	5.24	6.5	8.2	11	13.3	16
Drive speed				nmin	rpm	600
				nmax	rpm	3000
Operating pressure, absolute	Inlet 1)			p	bar	0.8 ... 2
	Outlet	continuous	Standard liquid	pN	bar	315
			Special fluid 2)	pN	bar	210
	Outlet	intermittent	Standard liquid	pmax	bar	350 3)	350
			Special fluid 2)	pmax	bar	230
Flow 4)				qV	l/min	7.5	9.3	11.8	15.8	19.1	23
Mass				m	kg	4.3	4.4	4.6	4.8	5	5.3
Shaft load						Radial and axial forces (e.g. belt pulley) only after coordination
Mounting type						Flange mounting

1)	Short-time, during start 0,6 bar
2)	For special fluids, observe the restrictions of the technical data!
3)	Maximum 10 s, at most 50 % of the duty cycle
4)	at n = 1450 rpm, p = 10 bar, v = 45 mm2/s

Hydraulic fluid

Hydraulic fluid
Permissible hydraulic fluid			Mineral oil (HLP) to DIN 51524-2
Special fluid 1)			HEES liquids according to DIN ISO 15380 Flame-resistant, water-free hydraulic fluid HFD-U according to VDMA 24317 Water polymer solutions HFC according to DIN EN ISO 12922
Operating temperature range	Standard liquid	°C	-10 … +80
Operating temperature range	Special fluid	°C	-10 … +50
Ambient temperature range		°C	-20 … +60
Viscosity range		mm²/s	10 … 300
Admissible start viscosity		mm²/s	2000
Maximum admissible degree of contamination of the hydraulic fluid 2)			Class 20/18/15 according to ISO 4406 (c)

1)	Seal design W
2)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

For applications outside these parameters, please consult us!

Average values of frame sizes 2 and 3

Flow

Efficiency

Drive power

Sound pressure level

Notice

Characteristic curves measured with n = 1450 min-1; ν = 41 mm2/s; θ = 50 °C Sound pressure level measured in the sound measuring chamber according to DIN 45635, sheet 26;

Distance: Microphone ‒ pump = 1 m

Frame size 2

With cylindrical shaft or splined shaft SAE J744 and SAE mounting flange 82‒2

Dimensions in mm

1)	With multiple pumps, the combination part will start from here
2)	The figure shows pumps with clockwise rotation; with pumps with counterclockwise rotation, the pressure port is on the opposite side!

Partial view suction port S

Dimensions in mm

Partial view pressure port P

Dimensions in mm

Type					Material numbers	L1	L2	L3	L4	Suction port S 2)	Pressure port P 2)
PGH2-2X/	005	R 1)	E	07VU2	R900968999	110 mm	54,2 mm	89,5 mm	41 mm	1/2 in 344,7 bar	1/2 in 344,7 bar
		L			R900703725
		R 1)	R	07VU2	R900972378				31,5 mm
		L			R900703727
	006	R 1)	E	07VU2	R900951301	112,5 mm	55,5 mm	92 mm	41 mm	1/2 in 344,7 bar	1/2 in 344,7 bar
		L			R900961547
		R 1)	R	07VU2	R900961549				31,5 mm
		L			R900961550
	008	R 1)	E	07VU2	R900951302	116 mm	57,3 mm	95,5 mm	41 mm	1/2 in 344,7 bar	1/2 in 344,7 bar
		L			R900961548
		R 1)	R	07VU2	R900961551				31,5 mm
		L			R900961552

1)	Preferably available
2)	Standard pressure series

Cylindrical shaft with fitting key DIN 6885

Dimensions in mm

Splined shaft SAE J744

R - 16-4 (A) in 9T 16/32DP1)2)
Dimensions in mm

1)	Suitable as central and back pump for multiple pumps
2)	Involute tooth system according to ANSI B92.1a, 30° pressure angle, flat root, side fit, tolerance class 5

Frame size 3
