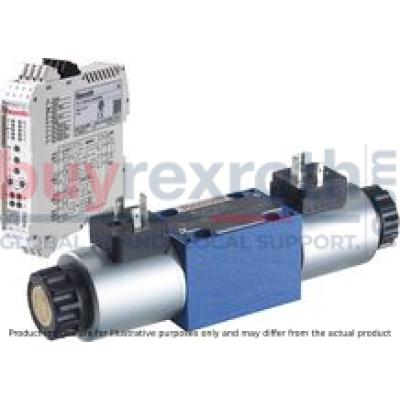

PROPORTIONAL DIRECTIONAL VALVE 4WRA6W15-2X/G24K4/V
Manufacturer: Bosch Rexroth
Material #: R900954056
Model : 4WRA6W15-2X/G24K4/V
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 4WRA6W15-2X/G24K4/V (R900954056) is a high-performance industrial hydraulic valve designed for reliable control of oil flow direction, in accordance with its spool symbol W. As a direct actuated spool valve, it operates through proportional solenoids with a central thread and detachable coil, which are controlled by external electronics. This valve is suitable for subplate mounting with a porting pattern according to ISO standards and is spring-centered. It has a size designation of 6, with the component series X indicating its generation.
The Bosch Rexroth 4WRA6W15-2X/G24K4/V valve has two spool positions and can manage a maximum operating pressure of up to 350 bar, while accommodating a maximum flow of 15 liters per minute. The unit features an electrical connection description with a connector pole PE in accordance with EN standards. The type of actuation is electrical with external electronics, ensuring precise control over the flow direction and magnitude.
This model comes equipped with FKM seals and can be used with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR. Its supply voltage requirement stands at 24 VDC. The robust design includes a housing that supports the connection surface and control spool flanked by compression springs. When de-energized, the solenoids maintain the control spool in the central position by the action of these springs.
The device's function allows for direct operation of the control spool when energizing a proportional solenoid; this results in displacement proportional to the electric input signal—facilitating connection from P to A and B to T through orifice-type cross-sections that offer progressive flow characteristics.
In summary, the Bosch Rexroth 4WRA6W15-2X/G24K4/V (R900954056) is engineered for precise control in hydraulic systems requiring durable valves with flexible fluid compatibility and electrical operation without position feedback.
$1,744.00 USD
More are expected on October 7, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as October 7, 2024 when ordered in
This product is eligible for factory repair.
Size 6, symbol W, electrical with external electronics, 24 V DC
Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol.
Unpacked Weight: 1.981 kg
Direct operated proportional directional valve without electrical position feedback, with external electronics Control of the direction and magnitude of a flow Operation by means of proportional solenoids with central thread and detachable coil For subplate mounting: Porting pattern according to ISO 4401 Spring-centered control spool
The 4/2 and 4/3 proportional directional valves are designed as direct operated devices in plate design. Operation by means of proportional solenoids with central thread and detachable coil. The solenoids are controlled by external control electronics.
Set-up:
The valve basically consists of:
Housing (1) with connection surface Control spool (2) with compression springs (3 and 4) Solenoids (5 and 6) with central threadFunction:
With de-energized solenoids (5 and 6), central position of the control spool (2) by compression springs (3 and 4) Direct operation of the control spool (2) by energization a proportional solenoid, e.g. control of solenoid "b" (6) Displacement of the control spool (2) to the left, proportionally to the electric input signal Connection from P to A and B to T via orifice-type cross-sections with progressive flow characteristics Switching off the solenoid (6) The compression spring (3) brings the control spool (2) back into the central position
Valve with two spool positions (type 4WRA...A...):
The function of this valve version basically corresponds to the valve with three spool positions. This 2 spool position valve is, however, only equipped with solenoid “a”. Instead of the 2nd proportional solenoid, there is a plug screw (8.1) with NG 6 or a cover (8.2) with NG10.
Notice:
The tank line must not be allowed to run empty. With corresponding installation conditions, a preload valve (preload pressure approx. 2 bar) must be installed.
(measured with HLP46, ϑÖl = 40 ±5 °C)
Rated flow 7 l/min at a valve pressure differential of 10 bar
NG6
Rated flow 15 l/min at a valve pressure differential of 10 bar
NG6
Rated flow 30 l/min at a valve pressure differential of 10 bar
NG6
Rated flow 30 l/min at a valve pressure differential of 10 bar
NG10
Transition function with stepped electric input signals
NG6
Performance limit rated flow 7 l/min
NG6
Performance limit rated flow 15 l/min
NG6
Performance limit rated flow 30 l/min
NG6
Rated flow 60 l/min at a valve pressure differential of 10 bar
NG10
Transition function with stepped electric input signals
NG10
Performance limit rated flow 30 l/min
NG10
Performance limit rated flow 60 l/min
NG10
Symbols
|
With control spool symbol E1- and W1-, the following applies: |
|
|
P → A: qvmax |
B → T: qv/2 |
|
P → B: qv/2 |
A → T: qvmax |
|
Notice: |
|
Type 4WRA
Type 4WRA...EA;Type 4WRA...WA
Connection at connector
Connection at mating connector
4WRA 6
Dimensions in mm
|
1 |
Valve housing |
|
2 |
Proportional solenoid "a" |
|
3 |
Proportional solenoid "b" |
|
4.1 |
Mating connector "A", color gray, separate order |
|
4.2 |
Mating connector "B", color black, separate order |
|
5 |
Name plate |
|
6 |
Identical seal rings for ports A, B, P, and T |
|
7 |
Plug screw for valves with one solenoid (2 spool positions, version "EA" or "WA") |
|
8 |
Space required to remove the mating connector |
|
9 |
Machined valve contact surface; Porting pattern according to ISO 4401-03-02-0-05 (with locating hole) |
Recommended valve mounting screws (separate order):
4 hexagon socket head cap screws ISO 4762 - M5 x 50 - 10.9-flZn-240h-L
tightening torque MA = 7 Nm ± 10%, material no. R913000064 or
4 hexagon socket head cap screws ISO 4762 - M5 x 50 - 10.9
tightening torque MA = 8.9 Nm ± 10%
4WRA 10
Dimensions in mm
|
1 |
Valve housing |
|
2 |
Proportional solenoid "a" |
|
3 |
Proportional solenoid "b" |
|
4.1 |
Mating connector "A", color gray, separate order |
|
4.2 |
Mating connector "B", color black, separate order |
|
5 |
Name plate |
|
6 |
Valve bleed screw: Notice: Valves are bled prior to delivery |
|
7 |
Identical seal rings for ports A, B, P and T (T1) |
|
8 |
Cover for valves with one solenoid (2 spool positions, version "EA" or "WA") |
|
9 |
Space required to remove the mating connector |
|
10 |
Machined valve contact surface; Porting pattern according to ISO 4401-05-04-0-05 |
Recommended valve mounting screws (separate order):
4 hexagon socket head cap screws ISO 4762 - M6 x 40 - 10.9-flZn-240h-L
tightening torque MA = 12.5 Nm ± 10 %, material no. R913000058 or
4 hexagon socket head cap screws ISO 4762 - M6 x 40 - 10.9
tightening torque MA = 15.5 Nm ± 10%
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
