4WS2EM6-2X/5B11ET315K17EV
Manufacturer: Bosch Rexroth
Material #: R900951449
Model : 4WS2EM6-2X/5B11ET315K17EV
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 4WS2EM6-2X/5B11ET315K17EV (R900951449) is a state-of-the-art electrically operated stage directional servo valve designed for precision control of position, force, pressure, or velocity in hydraulic systems. This valve incorporates advanced engineering with a torque motor, nozzle-flapper plate amplifier, and a control spool within a sleeve as its core components to ensure responsive and accurate operation.
The torque motor utilizes an electrical input signal to generate movement in the flapper plate via a torque tube, creating a pressure differential that actuates the control spool. The position of the spool is finely tuned by mechanical feedback through a bending spring until equilibrium is achieved between the feedback torque and electromagnetic force. This meticulous process allows for proportional control of the spool stroke and thus the flow rate based on the electrical signal provided.
The model code WSEM X indicates that this particular valve requires external control electronics to operate, which means it needs an external servo amplifier to process analog input signals for flow-controlled operations. In contrast, type WSEEM X comes with On-Board Electronics (OBE), featuring integrated control electronics specifically calibrated for this valve type.
Designed for subplate mounting with porting pattern according to ISO standards, this servo valve ensures clean operation due to its dry control motor which prevents contamination of solenoid gaps by hydraulic fluid. It also offers versatility as it can function as a 4-way version and boasts wear-free elements such as its control spool return element. The valve's pressure chambers are sealed with gap seals minimizing wear on seal rings while maintaining maximum operating pressures up to bar and flow rates up to l/min. Additionally, maintenance is made easier by an externally accessible filter for its first stage.
Each Bosch Rexroth 4WS2EM6-2X/5B11ET315K17EV servo valve is meticulously adjusted and tested to guarantee peak performance in controlling complex hydraulic applications where precision is paramount.
$7,555.00 USD
More are expected on October 1, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as October 1, 2024 when ordered in
This product is eligible for factory repair.
4WS(E)2EM 6-2X/…
Valves of this type are electrically operated, 2-stage directional servo valves with porting pattern according to ISO 4401-03-02-0-05. They are mainly used to control position, force, pressure or velocity.

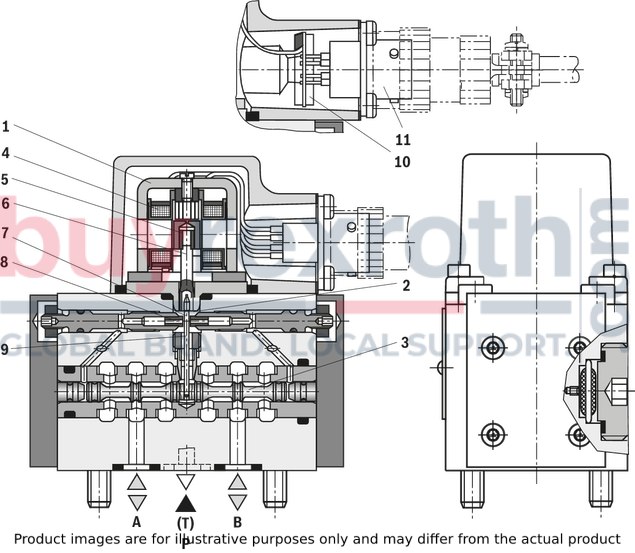

These valves are made of an electro-mechanical converter (torque motor) (1), a hydraulic amplifier (principle: nozzle flapper plate) (2) and a control spool (3) in a sleeve (2nd stage) which is connected with the torque motor via a mechanical feedback.
An electrical input signal at the coils (4) of the torque motor generates a force by means of a permanent magnet which acts on the armature (5), and in connection with a torque tube (6) results in a torque. This causes the flapper plate (7) which is connected to the torque tube (6) via a bolt to move from the central position between the two control nozzles (8), and a pressure differential is created across the front sides of the control spool (3). The pressure differential results in the spool changing its position, which results in the pressure port being connected to one actuator port and, at the same time, the other actuator port being connected to the return flow port.
The control spool is connected to the flapper plate or the torque motor by means of a bending spring (mechanical feedback) (9). The position of the spool is changed until the feedback torque across the bending spring and the electro-magnetic torque of the torque motor are balanced and the pressure differential at the nozzle flapper plate system becomes zero.
The stroke of the control spool and consequently the flow of the servo valve are controlled proportional to the electrical input signal. It must be noted that the flow depends on the valve pressure drop.
Type 4WS2EM 6-2X/… for external control electronics
External control electronics (servo amplifier) serve the actuation of the valve, amplifying an analog input signal (command value) so that with the output signal, the servo valve is actuated in a flow-controlled form.
Type 4WSE2EM 6-2X/… with OBE
For amplification of the analog input signal, special control electronics (10) adjusted to this valve type have been integrated. They are attached to the connector (11) in the cover cap of the torque motor.
For applications outside these parameters, please consult us!
general
|
Type |
4WS(E)2EM | ||
|
Size |
6 | ||
|
Component series |
2X | ||
|
Porting pattern |
ISO 4401-03-02-0-05 | ||
|
Installation position |
any – ensure that during start-up of the system, the pilot control is supplied with sufficient pressure (≥10 bar). | ||
|
Storage temperature range |
°C |
-20 … +80 | |
|
Weight |
kg |
1.1 | |
|
Ambient temperature range |
with OBE |
°C |
-20 … +60 |
|
without OBE |
°C |
-30 … +100 | |
hydraulic
|
Type |
4WS(E)2EM | ||
|
Maximum operating pressure |
bar |
315 | |
|
Maximum operating pressure |
Port A |
bar |
315 |
|
Port B |
bar |
315 | |
|
Port P |
bar |
315 | |
|
Return flow pressure |
Port T |
bar |
Pressure peaks < 100, static < 10 |
|
Rated flows qv nom at 70 bar valve pressure differential (35 bar/control edge) 1) |
l/min |
2 | |
|
Maximum control spool stroke possible 2) |
% |
120 … 170 | |
|
Hydraulic fluid |
see table | ||
|
Hydraulic fluid temperature range |
°C |
-30 … +80 | |
|
preferably |
°C |
+40 … +50 | |
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 3) |
Class 18/16/13 according to ISO 4406 (c) | ||
|
Viscosity range |
mm²/s |
15 … 380 | |
|
preferably |
mm²/s |
30 … 45 | |
|
Feedback system |
mechanical | ||
|
Hysteresis (dither-optimized) |
% |
≤ 1.5 | |
|
Range of inversion (dither-optimized) |
% |
≤ 0.2 | |
|
Response sensitivity (dither-optimized) |
% |
≤ 0.2 | |
|
Pressure amplification with 1 % control spool stroke change (from the hydraulic zero point) 4) |
% |
≥ 50 | |
|
Zero adjustment flow over the entire operating pressure range 5) |
% |
≤ 3 | |
|
Zero shift upon change of |
Hydraulic fluid temperature |
%/20° C |
≤ 1 |
|
Ambient temperature |
%/20° C |
≤ 1 | |
|
Operating pressure 80 … 120 % of pP |
%/100 bar |
≤ 2 | |
|
Return flow pressure 0 … 10 % of pP |
%/bar |
≤ 1 | |
| 1) | Tolerance ±10 % with valve pressure differential Δp = 70 bar |
| 2) | With mechanical end position (in an error case) related to nominal stroke |
| 3) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| 4) | of pp from the hydraulic zero point |
| 5) | long-term ≤ 5% |
|
Zero flow (with spool overlap "E", measured without dither signal) |
l/min |
|
|
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
|
Mineral oils and related hydrocarbons |
HL, HLP |
NBR / FKM |
DIN 51524 |
|
For more information and data on the use of other hydraulic fluids please contact us. |
|||
electrical
|
Type |
4WS(E)2EM | ||
|
Size |
6 | ||
|
Protection class according to EN 60529 |
IP65 (with mating connector mounted and locked) | ||
|
Type of signal |
analog | ||
|
Inductivity 1) |
Serial connection |
H |
1 |
|
Parallel connection |
H |
0.25 | |
| 1) | With 60 Hz and 100% rated current |
(measured with HLP32, ϑOil =40 ±5 °C)

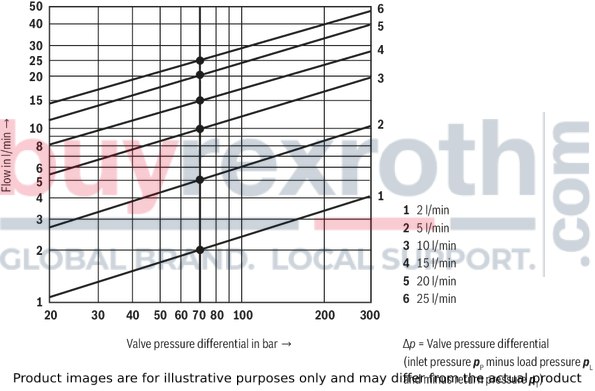

Flow/load function with maximum valve opening (tolerance ±10 %)

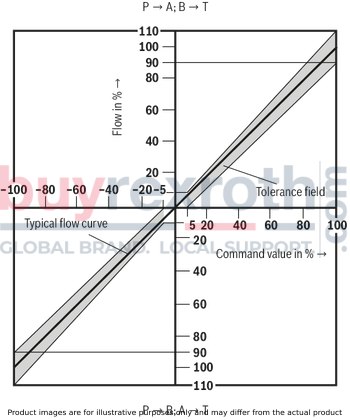

Tolerance field of the flow/signal function with constant valve pressure differential Δp

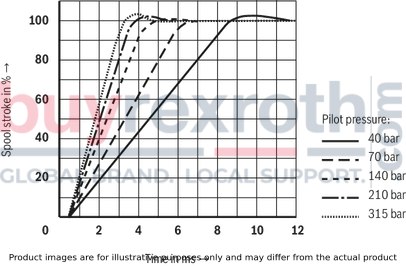

Transition function with pressure rating 315 bar

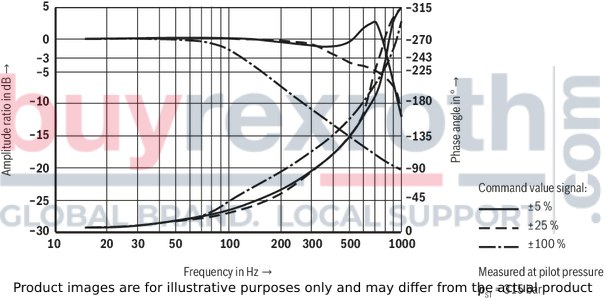

Frequency response with pp = 315 bar - measured with pressure rating 315 barbar

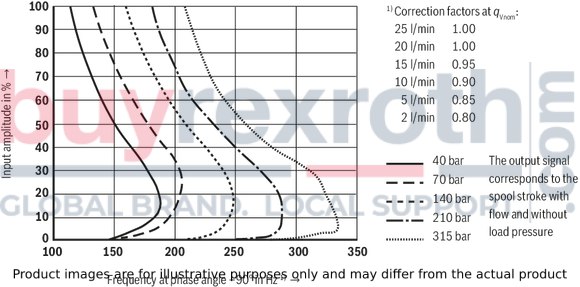

Dependency of the frequency f at -90° of the operating pressure and the inlet amplitude
(measured with HLP46, ϑOil = 40 ±5 °C)
Type 4WSE2EM 6...
Type 4WS2EM 6...
Type 4WS2EM 6...

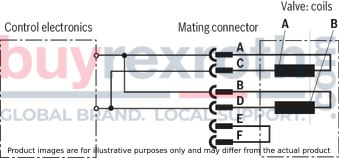

The coils are connected in parallel in the mating connector or to the amplifier (see figure). For serial connection, contacts B and C have to be connected. The bridge E-F can be used for electrical recognition of the correct connection of the connector or for cable break detection.
Electrical control from A (+) to D (-) provides for the direction of flow P → A and B → T. Reverse electrical control provides for direction of flow P → B and A → T.
Type 4WSE2EM 6...
|
Pin assignment |
Contact |
Current control "13" |
Voltage control "9" |
|
Supply voltage (tolerance ±3 %, residual ripple <1 %) Current consumption |
A |
+ 15 V, max. 150 mA |
+ 15 V, max. 150 mA |
|
B |
- 15 V, max. 150 mA |
- 15 V, max. 150 mA |
|
|
C |
⊥ |
⊥ |
|
|
Command value |
D |
±10 mA; Re = 1 kΩ |
± 10 V; Re ≥ 8 kΩ, Ie = 1,2 mA |
|
Command value reference |
E |
||
|
F |
not assigned |
||
Command value:
Command value at the mating connector port D = positive against mating connector port E results in flow from P to A and B to T.
Command value at the mating connector port D = negative against mating connector port E results in flow from P to B and A to T.
Notice:
Electrical signals provided via control electronics (e.g. actual value) must not be used to switch off safety-relevant machine functions!
Connection line:
4- and/or 6-wire, 0.75 mm², shielded, with litz wires according to DIN VDE 0812 (e.g. line type LIYCY 4 and/or 6 x 0.75 mm²)

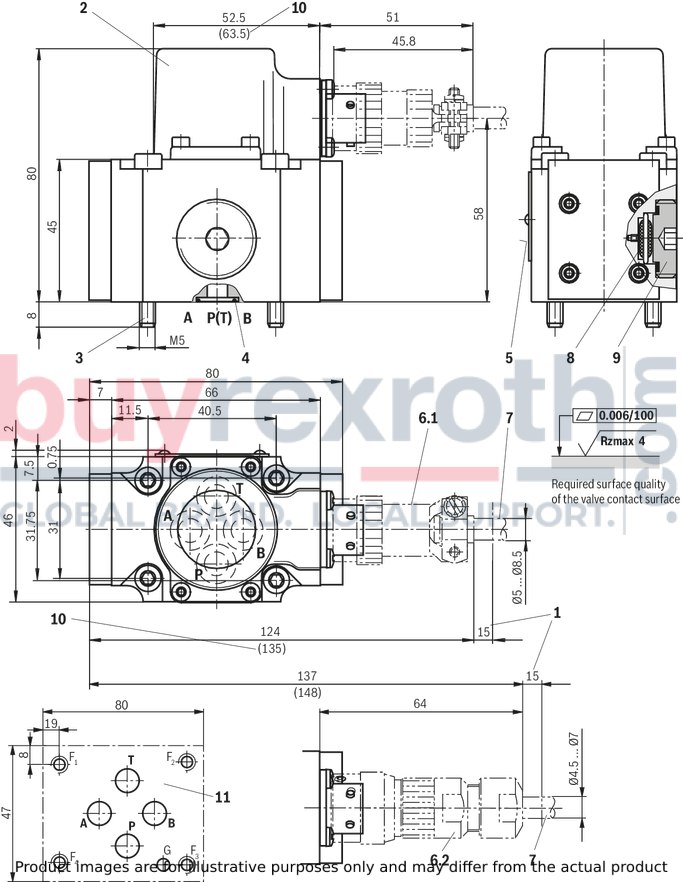

Dimensions in mm
|
1 |
Space required to remove the mating connector |
|
2 |
Cap |
|
3 |
Valve mounting screws (included in the scope of delivery): |
|
4 |
Identical seal rings for ports A, B, P, and T |
|
5 |
Name plate |
|
6.1 |
Mating connector, separate order |
|
6.2 |
Mating connector, separate order |
|
7 |
Connection line |
|
8 |
Filter |
|
9 |
Plug screw (SW6), after filter exchange, tighten it applying a tightening torque MA = 30 Nm |
|
10 |
Dimensions in brackets for valve with integrated control electronics (OBE) |
|
11 |
Machined valve contact surface; Porting pattern according to ISO 4401-03-02-0-05 |
|
Subplates must be ordered separately |
|

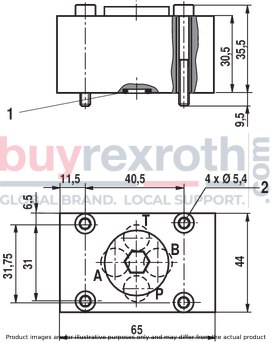

Dimensions in mm
Dimensions in mm
|
1 |
R-ring 9.81 x 1.5 x 1.78 (ports P, A, B, T) |
|
2 |
Mounting screws (included in the scope of delivery):4 hexagon socket head cap screws ISO 4762 - M5 x 40- 10.9-flZn-240h-L, MA = 7 Nm ± 10 % |
To ensure proper operation of the servo valves, it is necessary to flush the system before commissioning.
The following values are guidelines for the flushing time per system: t ≥ V : QV x 5
t = flushing time in h
V = tank capacity in l
QV = Pump flow in l/min
When replenishing more than 10% of the tank capacity, the flushing procedure must be repeated.
The use of a directional valve with port according to ISO 4401-03-02-0-05 is suited better than a flushing plate. With this valve, you can also flush the actuator ports.
