LOGIC COVER LFA16DR2-7X/315
Manufacturer: Bosch Rexroth
Material #: R900951084
Model : LFA16DR2-7X/315
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth LFA16DR2-7X/315 (R900951084) is a sophisticated control cover for way cartridge valves, specifically designed to provide reliable pressure reduction in hydraulic systems. This model features manual pressure reduction capabilities and is equipped with a spool symbol DR for easy identification. It operates at a maximum pressure as indicated in its product specifications, ensuring it can handle demanding applications.
The LFA16DR2-7X/315 is designed for subplate mounting with an ISO connection diagram, and it has a size that conforms to standard component series specifications. The unit's weight and NBR seals are crafted to ensure durability and compatibility with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC.
This Bosch Rexroth valve cover integrates seamlessly with way cartridge valves that are pilot-operated and come in either seat or spool design. The power section of these valves is installed into standardized receiving holes according to DIN ISO norms and is secured with this control cover.
In terms of functionality, the LFA16DR2-7X/315 facilitates different pressure functions by combining cartridge valves with control covers. Its pressure reducing function ensures that the rest position remains closed while allowing for an opening characteristic when needed. The pilot oil flow from port A to port B is regulated by the supply orifice and the pilot control valve, enabling precise management of system pressure.
For systems requiring a pressure reducing function alongside additional blocking capabilities, this model can be set up in conjunction with a directional valve to realize an LFA..DRW... type function. Overall, the Bosch Rexroth LFA16DR2-7X/315 offers robust performance for manual pressure adjustment in complex hydraulic systems.
$1,359.00 USD
More are expected on January 7, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as January 7, 2025 when ordered in
This product is eligible for factory repair.
Size 16, manual pressure reduction
Control cover for 2-way cartridge valves Reliable reduction of the pressure in connection with a 2-way cartridge valve according to the hydraulic symbol.
Unpacked Weight: 3.6 kg
General
2-way cartridge valves for pressure functions are pilot-operated valves in seat or spool design. The power section designed as cartridge valve (1) is installed into a receiving hole standardized according to DIN ISO 7368 and closed with a control cover (2).
The pilot control valve (4) for manual or electrically proportional pressure adjustment is integrated into the control cover (2) or is installed on the control cover (2) as pilot valve with mounting dimensions according to DIN 24 340.
By combination of cartridge valves with the control covers, different pressure functions can be realized. .
Pressure reducing function
Rest position closed
For the pressure reducing function with opening characteristic, a pressure limitation cartridge valve (type LC..DB40D...) and a control cover with a pressure reducing pilot control valve (type LFA..DR...) are applied. The pilot oil is directed from port A via the supply orifice and the opened pilot control valve to side B.
The main spool is opened and the flow from port A to port B is released.
On reaching the set pressure, the spool is closed and the pressure at port B is reduced according to the pressure-flow characteristics. Potential pressure increases on the secondary side are discharged to the tank via the 3rd way of the pilot control valve. Set-up of a directional valve enables realization of an additional blocking function (type LFA..DRW...).
Control cover for pressure reducing function
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
||
|
LFA |
DR |
‒ |
7X |
/ |
|
Type |
||
|
01 |
Control cover LFA |
LFA |
|
Size |
||
|
02 |
NG 16 |
16 |
|
NG 25 |
25 |
|
|
NG 32 |
63 |
|
|
NG 40 |
40 |
|
|
NG 50 |
50 |
|
|
NG 63 |
63 |
|
|
Version |
||
|
03 |
Pressure reducing function - Main spool in rest position closed (LC..DB 40 D..- separate order) |
DR |
|
Adjustment type for pressure adjustment |
||
|
04 |
Rotary knob |
1 |
|
Sleeve with hexagon and protective cap |
2 |
|
|
Lockable rotary knob with scale, incl. H-key |
3 |
|
|
Rotary knob with scale |
4 |
|
|
Component series |
||
|
05 |
Component series 70 ... 79 (70 ... 79: unchanged installation and connection dimensions) |
7X |
|
Pressure rating DBmax. (observe admissible pressure of the pilot control valve) |
||
|
06 |
Set pressure up to 25 bar |
025 |
|
Set pressure up to 75 bar |
075 |
|
|
Set pressure up to 150 bar |
150 |
|
|
Set pressure up to 210 bar |
210 |
|
|
Set pressure up to 315 bar |
315 |
|
|
Seal material |
||
|
07 |
NBR seals |
no code |
|
FKM seals |
V |
|
Additional preferred types and standard units are specified in the EPS (standard price list).
Main spool in rest position closed - LC..DB 40 D..- separate order
|
Orifice symbol |
Symbol in ordering code |
|||
|
A** |
|
A** |
|
This orifice is designed as screw-type orifice. If an orifice is to be installed, the respective code letter with the orifice Ø in 1/10 mm has to be entered in the type designation. Example: A12 = Orifice with Ø1.2 mm in channel A. |
|
Ø1,2 |
|
|
This orifice is designed as bore. No specifications are made in the type designation. (Orifice Ø in mm) |
|
|
Z12 |
|
|
This orifice is designed as screw-type orifice. This is a standard orifice. No specifications are made in the type designation. (Orifice Ø in 1/10 mm) |
|
LFA..DR.-7X/...NG 16
LFA..DR.-7X/...NG 25, 32
LFA..DR.-7X/...NG 40, 50
LFA..DR.-7X/...NG 63
Attention!
Control covers type LFA..DR... are combined with 2-way cartridge valves type LC..DB 40 D... (see ordering code).
The control covers are equipped with standard orifice fitting – optimized in our test area. Orifice specification in the type key is not necessary. Deviating operating conditions may require respective adjustment of the orifice size. The orifices are designed as screw-type orifices.

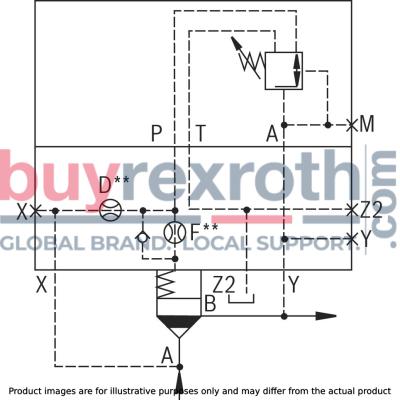

Orifice representation in symbol
(basic symbol) - Pressure reducing function
Installation bore and connection dimensions according to ISO 7368
NG16 ... 63
Dimensions in mm
|
5 |
Bore for locating pin (cover pin assembled according to DIN 24 342) |
|
6 |
Information on porting pattern NG 16: Length L1 (axis x–y bores) is 80 mm |
|
8 |
Bore for locating pin at function as main pressure relief valve (reposition cover pin for assembly accordingly) |
NG 16, 25, 32
Dimensions in mm
|
1 |
Port X optionally as threaded port (at NG 16...50) |
|
3.1 |
Port Z1 optionally as threaded port (at LFA..DREZ.. , LFA..DREWZ..., NG 25..63) |
|
4 |
Locating pin |
|
9.1 |
Name plate (NG16) |
|
9.2 |
Name plate (NG 25, 32) |
NG 40, 50
Dimensions in mm
|
1 |
Port X optionally as threaded port (at NG 16...50) |
|
2 |
Port Y optionally as threaded port (at NG 40, 50) |
|
3.1 |
Port Z1 optionally as threaded port (at LFA..DREZ.. , LFA..DREWZ..., NG 25..63) |
|
3.2 |
Port Z2 optionally as threaded port (at NG 40, 50, 63) |
|
4 |
Locating pin |
|
9.3 |
Name plate (NG 40, 50, 63) |
|
10 |
Check valve (at NG 63 orifice F in poppet) |
NG63
Dimensions in mm
|
3.1 |
Port Z1 optionally as threaded port (at LFA..DREZ.. , LFA..DREWZ..., NG 25..63) |
|
3.2 |
Port Z2 optionally as threaded port (at NG 40, 50, 63) |
|
4 |
Locating pin |
|
9.3 |
Name plate (NG 40, 50, 63) |
|
10 |
Check valve (at NG 63 orifice F in poppet) |
|
11 |
At control cover NG 63, logic element NG 16 |
NG16 ... 63
Dimensions in mm
|
5.1 |
Adjustment element "4" |
|
5.2 |
Adjustment element "3" |
|
6 |
Adjustment element "2" |
|
7 |
Adjustment element "1" |
|
8 |
direct operated pressure reducing valve (included in the scope of delivery) |
|
9 |
Name plate of the pressure reducing valve |
|
11 |
Valve mounting screws M5x50 DIN 912-10.9 MA = 8.9 Nm are included in the scope of delivery of the control cover |
|
12 |
Pressure gauge connection G1/4; 12 mm deep; internal hexagon SW6 |
|
13 |
Space required to remove the key |
|
14 |
Control cover |
|
15 |
Lock nut SW24 |
|
16 |
at type .../315 → 50 mm |
Notice:
The dimensions are nominal dimensions which are subject to tolerances.
|
Mounting screws (included in scope of delivery) |
|||
|
Hexagon socket head cap screw according to DIN 912-10.9 |
|||
|
NG |
Quantity |
Dimensions |
Tightening torque in Nm |
|
16 |
4 |
M 8 x 45 |
32 |
|
25 |
4 |
M 12 x 50 |
110 |
|
32 |
4 |
M 16 x 60 |
270 |
|
40 |
4 |
M 20 x 70 |
520 |
|
50 |
4 |
M 20 x 80 |
520 |
|
63 |
4 |
M 30 x 100 |
1800 |
|
NG |
H1 |
H2 |
H3 |
L1 |
L2 |
L3 |
L7 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 16 |
40 - |
17 - |
15 |
65 - |
80 | 36.5 | 49 |
| 25 |
40 - |
19 - |
24 |
85 - |
85 | 49 | 59 |
| 32 |
50 - |
26 - |
28 |
100 - |
100 | 56.5 | 66.5 |
Valve dimensions
|
NG |
Ø Orifice A** |
Ø Orifice X** 1) |
Ø Orifice F** |
Ø Orifice D** |
L8 |
L9 |
L10 |
L11 |
L12 |
||||||
|
.../315 |
.../315 |
.../315 |
.../315 |
.../315 |
.../315 |
||||||||||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 16 | - | 2.5 | - | 0.8 1) | 0.8 1) | 22 | 30.5 | 119.5 | 116.5 | 143.5 | 140.5 | 99.5 | 96.5 | 99.5 | 96.5 |
| 25 | - | - | 0.8 1) | 3 2) | 1.8 2) | 5.5 | 14 | 131 | 128 | 155 | 152 | 111 | 108 | 111 | 108 |
| 32 | - | - | 1 1) | 3 2) | 1.8 2) | - | 6 | 123.5 | 120.5 | 148.5 | 145.5 | 103.5 | 100.5 | 103.5 | 100.5 |
| 40 | - | - | 1.2 1) | 3 2) | 1.8 2) | - | - | 111 | 108 | 135 | 132 | 91 | 88 | 91 | 88 |
| 50 | - | - | 1.5 1) | 3 2) | 1.8 2) | - | - | 103.5 | 100.5 | 128.5 | 125.5 | 83.5 | 80.5 | 83.5 | 80.5 |
| 63 | 2 1) | - | 1.5 1) | 3 1) | 1.8 1) | - | - | 87.5 | 84.5 | 111.5 | 108.5 | 67.5 | 64.5 | 67.5 | 64.5 |
| 1) | Orifice Ø, orifice M6 conical |
| 2) | Orifice Ø, orifice M8 x 1 conical |
|
NG |
H1 |
H2 |
H3 |
H4 |
H5 |
L1 |
L2 |
L3 |
L4 |
L5 |
L7 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 40 |
60 - |
30 - |
32 | 40 | 40 |
125 - |
125 | 72 | 62.5 | 62.5 | 79 |
| 50 |
68 - |
32 - |
34 | 32 | 32 |
140 - |
140 | 80 | 70 | 70 | 86.5 |
