4WS2EM16-2X/200B12ET315K8DM

Manufacturer: Bosch Rexroth

Material #: R900940675

Model : 4WS2EM16-2X/200B12ET315K8DM

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

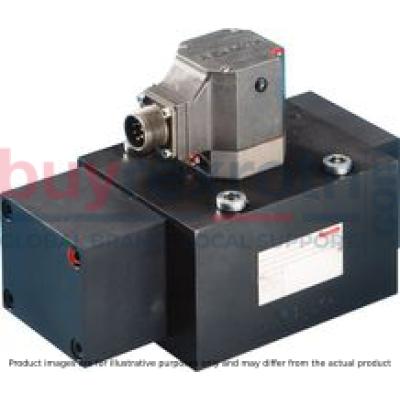

The Bosch Rexroth 4WS2EM16-2X/200B12ET315K8DM (R900940675) is an advanced stage directional servo valve that offers precise control over position, force, pressure, and velocity in hydraulic systems. This valve features a nozzle-flapper plate amplifier for the first stage and can be utilized in either a 4-way or 6-way version depending on the application requirements. It is designed for subplate mounting and conforms to ISO standards with a porting pattern according to DIN form A. With its dry control motor, the 4WS2EM16-2X/200B12ET315K8DM ensures that solenoid gaps remain uncontaminated by hydraulic fluid, thus maintaining the integrity and performance of the system. The valve boasts mechanical feedback or a combination of mechanical and electrical feedback mechanisms, which contribute to its responsive and accurate operation. This model allows for easy maintenance with features such as an exchangeable control sleeve and an externally accessible filter for the first stage. The pilot oil supply can be switched from internal to external without disassembling the valve, demonstrating flexibility in various hydraulic circuit designs. Additionally, whether utilizing external control or opting for integrated electronics (OBE), this servo valve ensures seamless integration into your system as it comes pre-adjusted and tested. With a maximum operating pressure of 315 bar and a maximum flow rate of up to 200 liters per minute, the Bosch Rexroth 4WS2EM16-2X/200B12ET315K8DM servo valve is suitable for high-performance applications that require reliable and precise control over hydraulic functions. Its wear-free control spool return element further emphasizes durability and longevity in demanding operational environments.

$11,807.00 USD

More are expected on July 24, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as July 24, 2025 when ordered in

This product is eligible for factory repair.

Repairs from $2,244.00

Valve to control position, force, pressure or velocity 2-stage servo valve with mechanical or mechanical and electrical feedback 1st stage nozzle/flapper plate amplifier For subplate mounting: Porting pattern according to ISO 4401 Dry control motor, no contamination of the solenoid gaps by the hydraulic fluid Can also be used as 3-way version Wear-free control spool return element Control external or with integrated electronics (OBE) Valve and integrated control electronics are adjusted and tested Pilot oil supply can be changed from internal to external without valve disassembly Control sleeve exchangeable Filter for 1st stage freely accessible from the outside

Valves of type 4WS(E)2E... re electrically operated, 2-stage directional servo valves in 4-way version with integrated or external control electronics. They moreover have a mechanical or mechanical and electrical feedback. The porting pattern is designed according to DIN 24 340 form A16. The valves are mainly used to control position, force and velocity.

01	02	03		04		05		06	07	08	09	10	11	12
		16	-	2X	/		B					E	V	*

01	Electrically operated 2-stage servo valve in 4-way version
	For external analog electronics		4WS2E
	With integrated control electronics		4WSE2E
02	Mechanical feedback		M
	Mechanical and electrical feedback (only available with integrated electronics)		D
03	Size 16		16
04	Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) - Size 6		2X
Rated flow at 70 bar valve pressure differential
05	100 l/min		100
	150 l/min		150
	200 l/min		200
Coil and/or control data
06	Valves for external control electronics: Coil no. 12 (50 mA / 85 Ω per coil)		12
	Valve with integrated control electronics:
	Control	Command value ±10 mA/1 kΩ	8
		Command value ±10 V/≥50 kΩ	9
07	Pilot oil supply and return
	Pilot oil supply internal, pilot oil return internal		ET
	External pilot oil supply, internal pilot oil return		T
08	Inlet pressure range to the 1st stage
	10 … 210 bar		210
	10 … 315 bar		315
Electrical connection
09	Valve for external control electronics:
	Without mating connector, with connector for 4-pole mating connector according to VG 095 342		K8
	Valve with integrated control electronics:
	Without mating connector, with connector for 6-pole mating connector according to E DIN 43 563-AM6-3, separate order		K9
Control spool overlap
10	0 ... 0,5% negativ		E
11	FKM seals		V
12	Further details in the plain text		*

For applications outside these parameters, please consult us!

general

Type			4WS(E)2E
Size			16
Component series			2X
Porting pattern			For subplate mounting: Porting pattern according to DIN 24340 form A16
Installation position			any – ensure that during start-up of the system, the pilot control is supplied with sufficient pressure (≥10 bar).
Storage temperature range		°C	-20 … +80
Ambient temperature range	with OBE	°C	-20 … +60
	without OBE	°C	-30 … +70

hydraulic

Type			4WS(E)2E
Maximum operating pressure	bar	315

electrical

Type	4WS(E)2E
Size	16

4WS2EM16-2X/200B12ET315K8DM

Manufacturer: Bosch Rexroth

Material #: R900940675

Model : 4WS2EM16-2X/200B12ET315K8DM

More are expected on July 24, 2025

This product is eligible for factory repair.

general

hydraulic

electrical

(measured with HLP46, ϑOil = 40 ±5 °C)

(measured with HLP32, ϑOil =40 ±5 °C)
