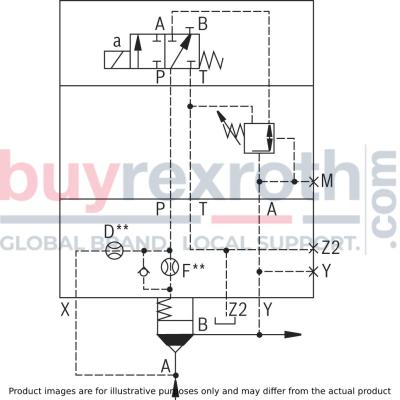

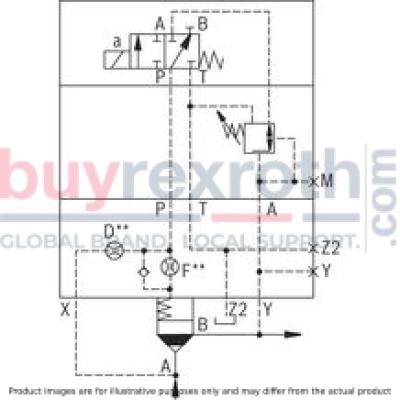

LOGIC COVER LFA25DRW2-7X/150

1

Port X optionally as threaded port (at NG 16...50)

3.1

Port Z1 optionally as threaded port (at LFA..DREZ.. , LFA..DREWZ..., NG 25..63)

4

Locating pin

9.1

Name plate (NG16)

9.2

Name plate (NG 25, 32)

1

Port X optionally as threaded port (at NG 16...50)

2

Port Y optionally as threaded port (at NG 40, 50)

3.1

Port Z1 optionally as threaded port (at LFA..DREZ.. , LFA..DREWZ..., NG 25..63)

3.2

Port Z2 optionally as threaded port (at NG 40, 50, 63)

4

Locating pin

9.3

Name plate (NG 40, 50, 63)

10

Check valve (at NG 63 orifice F in poppet)

3.1

Port Z1 optionally as threaded port (at LFA..DREZ.. , LFA..DREWZ..., NG 25..63)

3.2

Port Z2 optionally as threaded port (at NG 40, 50, 63)

4

Locating pin

9.3

Name plate (NG 40, 50, 63)

10

Check valve (at NG 63 orifice F in poppet)

11

At control cover NG 63, logic element NG 16

Mounting screws (included in scope of delivery)

Hexagon socket head cap screw according to DIN 912-10.9

NG

Quantity

Dimensions

Tightening torque in Nm

16

4

M 8 x 45

32

25

4

M 12 x 50

110

32

4

M 16 x 60

270

40

4

M 20 x 70

520

50

4

M 20 x 80

520

63

4

M 30 x 100

1800

5.1

Adjustment element "4"

5.2

Adjustment element "3"

6

Adjustment element "2"

7

Adjustment element "1"

8

direct operated pressure reducing valve (included in the scope of delivery)

9

Name plate of the pressure reducing valve

11

Valve mounting screws M5x50 DIN 912-10.9 MA = 8.9 Nm are included in the scope of delivery of the control cover

12

Pressure gauge connection G1/4; 12 mm deep; internal hexagon SW6

13

Space required to remove the key

14

Control cover

15

Lock nut SW24

16

at type .../315 → 50 mm
