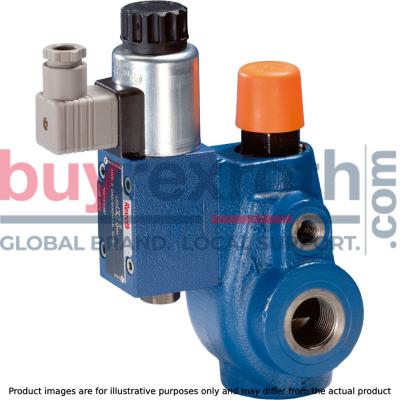

PRESSURE RELIEF VALVE DBW10BG2-4X/100-6EG24N9K4W65
Manufacturer: Bosch Rexroth
Material #: R900923513
Model : DBW10BG2-4X/100-6EG24N9K4W65
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth DBW10BG2-4X/100-6EG24N9K4W65 (R900923513) is a high-performance industrial hydraulic valve designed for reliable pressure relief and solenoid-actuated unloading of operating pressure. This pilot-operated valve is notable for its versatility in hydraulic applications, featuring a spool symbol P T and the ability to maintain pressure to the set value with precision. It has a maximum operating pressure of 350 bar and a maximum flow rate of 100 l/min, making it suitable for demanding hydraulic systems.
The valve features a threaded connection type for secure installation and an electrical connector with a Connector pole + PE according to EN 175301-803 standards, ensuring robust electrical connections. The supply voltage requirement for this model is 24 VDC, which powers the solenoid actuation mechanism. The DBW10BG2-4X/100-6EG24N9K4W65 has multiple ports and offers two switching positions, providing flexibility in hydraulic circuit design.
Constructed with NBR seals, it is compatible with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. The valve's design includes features like an adjustable pilot control valve for precise pressure settings and an internal monitoring option via a pressure gauge connection. Users can choose from several adjustment types for pressure settings including rotary knobs or lockable rotary knobs with or without scales.
This model also allows for unloading or switching to another pressure rating via port X and includes built-in directional spool valves for solenoid-operated unloading. Weighing approximately 2.3 kg, this robust component ensures reliability in industrial environments where consistent performance under high-pressure conditions is critical.
$1,373.00 USD
More are expected on November 19, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as November 19, 2024 when ordered in
This product is eligible for factory repair.
Size 10, P → T, solenoid-actuated, 24 V DC
Industrial hydraulic valve in a high performance range. Reliable pressure relief to setting value.
Unpacked Weight: 5.340 kg
For threaded connection 4 adjustment types for pressure adjustment, optionally
• Rotary knob
• Sleeve with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale 4 pressure ratings Solenoid-operated unloading via built-on directional spool valve
Valves of type DBW are pilot-operated pressure relief valves. They are used for limitation and solenoid-actuated unloading of the operating pressure.
The valves basically consist of housing (1) and pilot control valve (2) with adjustment type.
The pressure applied to channel P acts on the main spool (3). Via the nozzle bores (4 and 5), the pressure is at the same time applied to poppet (6). If the pressure in channel P exceeds the value set at spring (7), poppet (6) opens against spring (7). Via the nozzle bores (4 and 5), the hydraulic fluid from channel P now flows into the spring chamber (8). From here, it is led into the tank internally (version "–"), via the control line (9 and 10), or externally (version "Y") via the control line (9 and 11).
Due to the state of equilibrium at the main spool (3), hydraulic fluid flows from channel P to channel T, maintaining the set operating pressure.
A pressure gauge connection (12) allows for the control of the operating pressure.
The pressure relief valve can be unloaded or switched to another pressure (second pressure rating) via port X (13).
The main spool (3) is unloaded by controlling a built-on directional valve.
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
||
|
DB |
W |
G |
– |
4X |
/ |
6E |
K4 |
W65 |
* |
|
Type |
||
|
01 |
Pressure relief valve |
DB |
|
02 |
With attached directional valve |
W |
|
Size |
||
|
03 |
Size 10 |
|
|
Threaded connection "G" (G1 1/2) |
10 |
|
|
Size 25 |
||
|
Threaded connection "G" (G3/4) |
15 |
|
|
Threaded connection "G" (G1) |
20 |
|
|
Type of connection |
||
|
04 |
Normally closed |
A |
Normally open |
B |
|
|
05 |
Threaded connection |
G |
|
Adjustment type |
||
|
06 |
Rotary knob |
1 |
|
Sleeve with hexagon and protective cap |
2 |
|
|
Lockable rotary knob with scale |
3 1) |
|
|
Rotary knob with scale |
7 |
|
|
Component series |
||
|
07 |
Component series 40 ... 49 (40 ... 49: unchanged installation and connection dimensions) |
4X |
|
Pressure rating |
||
|
08 |
Set pressure up to 50 bar |
50 |
|
Set pressure up to 100 bar |
100 |
|
|
Set pressure up to 200 bar |
200 |
|
|
Set pressure up to 315 bar |
315 |
|
|
Pilot oil supply and pilot oil return (see also Symbols) |
||
|
09 |
Pilot oil supply and pilot oil return, internal |
– 2) |
|
External pilot oil supply, internal pilot oil return |
X |
|
|
Internal pilot oil supply, external pilot oil return |
Y |
|
|
Pilot oil supply and pilot oil return external |
XY |
|
|
Version |
||
|
10 |
Standard version |
no code |
|
Valve for minimum cracking pressure (not suitable for mutual relief!) |
U |
|
|
11 |
With directional spool valve (data sheet 23178) |
6E |
|
12 |
Direct voltage 24 V |
G24 |
|
Alternating voltage 230 V, 50/60 Hz |
W230 |
|
|
Manual override |
||
|
13 |
With concealed manual override (standard) |
N9 |
|
With manual override |
N |
|
|
Electrical connection |
||
|
14 |
without mating connector with connector DIN EN 175301-803 |
K4 |
|
Seal material |
||
|
15 |
NBR seals |
no code |
|
FKM seals |
V |
|
|
(other seals upon request) Attention! Observe compatibility of seals with hydraulic fluid used! |
||
|
Installation position |
||
|
16 |
Vertical installation position of the screw-in cartridge valve (cartridge) |
W65 |
|
17 |
Further details in the plain text |
* |
| 1)H-key with material no. R900008158 is included in the scope of delivery. | |
| 2)Dash "–" only without specification of "U". |
Notice:
Preferred types and standard units are contained in the EPS (standard price list).
(measured with HLP46, ϑOil = 40 ±5 °C)
Inlet pressure dependent on the flow
Threaded connection
Minimum set pressure and circulation pressure dependent on the flow 1)
Standard version
| 1) | The characteristic curves apply to the pressure at the valve output pT = 0 bar across the entire flow range. |
Minimum set pressure and circulation pressure dependent on the flow 1)
Version “U”
| 1) | The characteristic curves apply to the pressure at the valve output pT = 0 bar across the entire flow range. |
Notices!
The characteristic curves were measured with external, depressurized pilot oil return.
Due to the internal pilot oil return, the inlet pressure increases by the output pressure present in port T.
Type DBW…–…
Type DBW…X…
Type DBW…Y…
Type DBW…XY…
Threaded connection
Dimensions in mm
|
1 |
Name plate |
|
2 |
Port X for remote control, optional |
|
3 |
Y port for pilot oil return, external |
|
4 |
Adjustment type "1" |
|
5 |
Adjustment type "2" |
|
6 |
Adjustment type "3" |
|
7 |
Adjustment type "7" |
|
8 |
Lock nut SW22, tightening torque MA = 10±5 Nm |
|
9 |
Hexagon SW10 |
|
10 |
Hexagon SW30, tightening torque MA = 50 Nm |
|
11 |
Space required to remove the key |
|
17 |
Grub screw is omitted with internal pilot oil return |
|
18 |
Directional spool valve NG6 (data sheet 23178) |
|
19 |
Mating connector without circuitry (separate order) |
|
20 |
Mating connector with circuitry (separate order) |
|
21 |
Dimension for valve without manual override |
|
22 |
Dimension for valve with manual override "N" |
|
23 |
Dimension for valve with concealed manual override "N9" |
|
24 |
Housing for version "W“ |
|
25 |
Space required to remove the mating connector |
|
26 |
Valve contact surface; port A is not bored |
|
27 |
Space required to remove the solenoid coil |
|
Version |
D1 |
ØD2 |
|
mm |
||
| DB.10.G | G1/2 | 34 |
| DB.15.G | G3/4 | 42 |
| DB.20.G | G1 | 47 |
Mounting cavity
Version "XY" and type-examination tested safety valves version "Y…E"
Dimensions in mm
| 1) | Installation depth |
|
|
Required surface quality of the valve contact surface |
|
37 |
Bore X, Y and T optionally at the circumference for version "XY" Bore T optionally at the circumference for version "Y" (no separate bore Y required; pilot oil return via bore T) |
|
38 |
Depth of fit |
|
39 |
Bore Ø2.5 mm is only to be bored if required |
|
40 |
Port X does not have to be bored for type-examination tested safety valves version "Y…E" as it does not have any function! |
Version “Y”
Dimensions in mm
| 1) | Installation depth |
|
|
|
Required surface quality of the valve contact surface |
|
37 |
Bore X, Y and T optionally at the circumference for version "XY" Bore T optionally at the circumference for version "Y" (no separate bore Y required; pilot oil return via bore T) |
|
38 |
Depth of fit |
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
