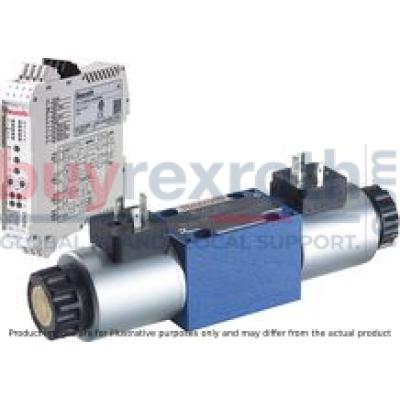

4WRA6W07-2X/G24N9K4/V

Manufacturer: Bosch Rexroth

Material #: R900923472

Model : 4WRA6W07-2X/G24N9K4/V

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 4WRA6W07-2X/G24N9K4/V (R900923472) is a high-performance proportional directional valve tailored for precise control of flow and direction in hydraulic systems. This direct operated plate design valve is engineered for subplate mounting with a porting pattern that adheres to ISO standards, ensuring compatibility and ease of integration into various hydraulic circuits. The valve features robust construction with a housing that supports the control spool, which is held in its central position by compression springs when the solenoids are deenergized. The 4WRA6W07-2X/G24N9K4/V operates by energizing one of its proportional solenoids, which have central threads and detachable coils, controlled by external electronics. Upon activation, the control spool is directly actuated, moving proportionally to the electric input signal, thus allowing precise adjustment from P to A and B to T through orifice-type cross-sections with progressive flow characteristics. This particular model comes with two spool positions (type WRA...A...), featuring one active solenoid for operation and a plug screw or cover for the secondary position, depending on whether it's NG6 or NG10 size respectively. It's important to note that the tank line must remain filled during operation; if installation conditions require it, a preload valve with approximately bar preload pressure should be installed. With its maximum operating pressure of bar and maximum flow rate of l/min, this valve excels in applications requiring exacting control without electrical position feedback. Its spring-centered control spool ensures reliable return to neutral and contributes to the overall durability and efficiency of the system it serves.

$1,706.00 USD

More are expected on May 26, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as May 26, 2025 when ordered in

This product is eligible for factory repair.

Repairs from $340.00

Direct operated proportional directional valve without electrical position feedback, with external electronics Control of the direction and magnitude of a flow Operation by means of proportional solenoids with central thread and detachable coil For subplate mounting: Porting pattern according to ISO 4401 Spring-centered control spool

The 4/2 and 4/3 proportional directional valves are designed as direct operated devices in plate design. Operation by means of proportional solenoids with central thread and detachable coil. The solenoids are controlled by external control electronics.

Set-up:

The valve basically consists of:

Housing (1) with connection surface Control spool (2) with compression springs (3 and 4) Solenoids (5 and 6) with central thread

Function:

With de-energized solenoids (5 and 6), central position of the control spool (2) by compression springs (3 and 4) Direct operation of the control spool (2) by energization a proportional solenoid, e.g. control of solenoid "b" (6) Displacement of the control spool (2) to the left, proportionally to the electric input signal Connection from P to A and B to T via orifice-type cross-sections with progressive flow characteristics Switching off the solenoid (6) The compression spring (3) brings the control spool (2) back into the central position

Valve with two spool positions (type 4WRA...A...):

The function of this valve version basically corresponds to the valve with three spool positions. This 2 spool position valve is, however, only equipped with solenoid “a”. Instead of the 2nd proportional solenoid, there is a plug screw (8.1) with NG 6 or a cover (8.2) with NG10.

Notice:

The tank line must not be allowed to run empty. With corresponding installation conditions, a preload valve (preload pressure approx. 2 bar) must be installed.

01	02	03	04	05		06		07	08	09		10	11
4	WRA				‒	2X	/	G24			/		*

01	4 main ports	4
02	Proportional directional valve without integrated electronics	WRA
Size
03	Size 6	6
03	Size 10	10
04	Symbols; for the possible version, see "Symbols/Circuit diagrams"	E;E1-;W;W1-;EA;WA
Rated flow NG6
05	7 l/min	7
	15 l/min	15
	30 l/min	30
Rated flow NG10
05	30 l/min	30
05	60 l/min	60
06	Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions)	2X
07	Supply voltage 24 V	G24
Special type of protection
08	Without special type of protection	no code
08	Sea water-resistant	J 1)
Electrical connection
09	Connector DIN EN 175301-803	K4 2)
Seal material
10	NBR seals	M
10	FKM seals	V
11	Further details in the plain text	*
1)	Electrical protection classes on request
2)	Only with NG6: only indicate "K31" for version “J”!

For applications outside these parameters, please consult us!

general

Type		4WRA
Size		6	10
Installation position		any, preferably horizontal
Ambient temperature range	°C	-20 … +70
Storage temperature range	°C	-20 … +80
Weight	kg	2	6.6

hydraulic

Size			6	10
Maximum operating pressure		bar	315
Maximum operating pressure	Port P	bar	315
	Port T	bar	210
	Port A	bar	315
	Port B	bar	315
Maximum flow		l/min	42	75
Maximum flow	with double flow	l/min	80	140
Nominal flow		l/min	7 15 26	30 60
Hydraulic fluid 1)			see table
Hydraulic fluid temperature range		°C	-20 … +80
Hydraulic fluid temperature range	preferably	°C	+40 … +50
Viscosity range		mm²/s	20 … 380
Viscosity range	preferably	mm²/s	30 … 46
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 2)			Class 20/18/15 according to ISO 4406 (c)
Hysteresis		%	≤ 5
Range of inversion		%	≤ 1
Response sensitivity		%	≤ 0.5

1)	Additional hydraulic fluids upon request
2)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid	Classification	Suitable sealing materials	Standards
Mineral oils and related hydrocarbons	HL, HLP	NBR / FKM	DIN 51524
Important information on hydraulic fluids: For more information and data on the use of other hydraulic fluids please contact us.

electrical

Size			6	10
Voltage type			Direct voltage
Maximum solenoid current		A	2.5
Maximum current consumption	of the amplifier	A	1.8
	of the amplifier (impulse current)	A	3
Solenoid coil resistance	Cold value at 20 °C	Ω	2
	Maximum hot value	Ω	3
Actuated time		%	100
Maximum coil temperature 1)		°C	+ 150
Power supply		VDC	24
Supply voltage range		V	21 … 35

1)	Due to the surface temperatures occurring at the solenoid coils, the European standards ISO 13732-1 and EN 982 need to be adhered to.

Symbols

With control spool symbol E1- and W1-, the following applies:
P → A: qvmax	B → T: qv/2
P → B: qv/2	A → T: qvmax
Notice: In the zero position, control spool symbols W and WA have a connection from A → T and from B → T with approx. 3% of the relevant nominal cross-section.

Type 4WRA

Type 4WRA...EA;Type 4WRA...WA

Connection at connector

Connection at mating connector

4WRA 6

Dimensions in mm

1	Valve housing
2	Proportional solenoid "a"
3	Proportional solenoid "b"
4.1	Mating connector "A", color gray, separate order
4.2	Mating connector "B", color black, separate order
5	Name plate
6	Identical seal rings for ports A, B, P, and T
7	Plug screw for valves with one solenoid (2 spool positions, version "EA" or "WA")
8	Space required to remove the mating connector
9	Machined valve contact surface; Porting pattern according to ISO 4401-03-02-0-05 (with locating hole) Deviating from the standard: - without locating hole "G" - ports P, A, B and T with Ø8 mm

Recommended valve mounting screws (separate order):

4 hexagon socket head cap screws ISO 4762 - M5 x 50 - 10.9-flZn-240h-L

tightening torque MA = 7 Nm ± 10%, material no. R913000064 or

4 hexagon socket head cap screws ISO 4762 - M5 x 50 - 10.9

tightening torque MA = 8.9 Nm ± 10%

4WRA 10

Dimensions in mm

1	Valve housing
2	Proportional solenoid "a"
3	Proportional solenoid "b"
4.1	Mating connector "A", color gray, separate order
4.2	Mating connector "B", color black, separate order
5	Name plate
6	Valve bleed screw: Notice: Valves are bled prior to delivery
7	Identical seal rings for ports A, B, P and T (T1)
8	Cover for valves with one solenoid (2 spool positions, version "EA" or "WA")
9	Space required to remove the mating connector
10	Machined valve contact surface; Porting pattern according to ISO 4401-05-04-0-05 Deviating from the standard: Port T1 with Ø11.2 mm

Recommended valve mounting screws (separate order):

4 hexagon socket head cap screws ISO 4762 - M6 x 40 - 10.9-flZn-240h-L

tightening torque MA = 12.5 Nm ± 10 %, material no. R913000058 or

4 hexagon socket head cap screws ISO 4762 - M6 x 40 - 10.9

tightening torque MA = 15.5 Nm ± 10%

Spare parts & repair

4WRA6W07-2X/G24N9K4/V

Manufacturer: Bosch Rexroth

Material #: R900923472

Model : 4WRA6W07-2X/G24N9K4/V

More are expected on May 26, 2025

This product is eligible for factory repair.

Set-up:

Function:

Valve with two spool positions (type 4WRA...A...):

Notice:

general

hydraulic

electrical

(measured with HLP46, ϑÖl = 40 ±5 °C)

Rated flow 7 l/min at a valve pressure differential of 10 bar

Rated flow 15 l/min at a valve pressure differential of 10 bar

Rated flow 30 l/min at a valve pressure differential of 10 bar

Rated flow 30 l/min at a valve pressure differential of 10 bar

Transition function with stepped electric input signals

Performance limit rated flow 7 l/min

Performance limit rated flow 15 l/min

Performance limit rated flow 30 l/min

Rated flow 60 l/min at a valve pressure differential of 10 bar

Transition function with stepped electric input signals

Performance limit rated flow 30 l/min

Performance limit rated flow 60 l/min

Symbols

Type 4WRA

Type 4WRA...EA;Type 4WRA...WA

Connection at connector

Connection at mating connector

4WRA 6

Recommended valve mounting screws (separate order):

4WRA 10

Recommended valve mounting screws (separate order):
