LOGIC COVER LFA32DB2-7X/100
Manufacturer: Bosch Rexroth
Material #: R900912762
Model : LFA32DB2-7X/100
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

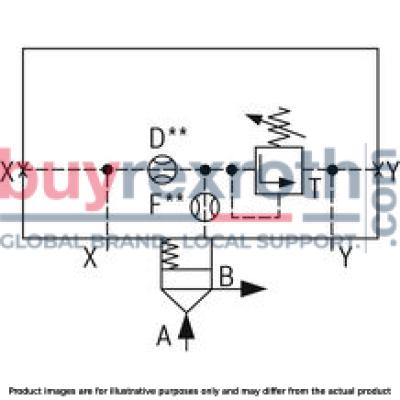

The Bosch Rexroth LFA32DB2-7X/100 (R900912762) is a high-quality, manual maximum pressure adjustment control cover designed for use with way cartridge valves. This product ensures reliable pressure limiting in hydraulic systems when combined with a corresponding way cartridge valve, as indicated by its hydraulic symbol. The control cover features a hexagonal design and is rated for a maximum operating pressure of 315 bar, making it suitable for various demanding applications.
With subplate mounting type of connection and NBR seals, the LFA32DB2-7X/100 is compatible with a range of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC. The product's size 6 categorization indicates its compatibility within standardized systems according to DIN ISO norms.
The control cover incorporates a pilot control valve for manual pressure adjustment that can be integrated into or installed on the cover as per DIN standards. By pairing this product with different cartridge valves, users can achieve various pressure functions such as pressure relief or reduction.
In terms of the pressure relief function, the associated cartridge valve (type LC) operates as a seat valve without an area difference at port B. It utilizes pilot oil supply orifice and spring force to maintain closure until the set pressure is reached; then it opens to limit the pressure at port A according to characteristic curves.
For the pressure reducing function, the spool valve design permits free flow from port B to port A until reaching the set pressure where it then closes to reduce pressure at port A accordingly.
Weighing in at approximately 1.4 kg and offering manual actuation type for adjusting pressures ranging from 10 to 315 bar, this Bosch Rexroth control cover is an integral component for hydraulic system regulation and safety.
