The Bosch Rexroth LFA32WEA-7X/ (R900912712) is a high-performance industrial hydraulic valve designed for reliable operation in various applications. This hydraulically actuated valve is suitable for subplate mounting and features a spool symbol WEA, indicating its specific operational characteristics. The valve is engineered to facilitate the integration of cartridge valves into a compact block design, promoting efficient system architecture.
With its maximum pressure capability and inclusion in the product group ID, the LFA32WEA-7X/ valve is versatile in managing pressure, directional, and throttle functions or combinations thereof. This efficiency is further enhanced by matching the size of the valve to the flow requirements of different actuator paths, leading to cost-effective solutions when implementing multiple functions within a system.
The LFA32WEA-7X/ consists of a control cover that houses control bores and may include additional features such as stroke limitation, hydraulically controlled directional seat valves, or shuttle valves. It can also accommodate electrically operated directional spool or seat valves if needed. The installation kit comprises components such as a bushing, ring (up to NG), valve poppet—with options for damping nose configurations—and a closing spring.
This way cartridge valve operates based on pressure-dependent functionality with three distinct pressurized areas A1, A2, and A3 contributing to its operation. The area ratios and resulting annulus areas are carefully designed to ensure precise control over the opening and closing directions of the valve.
The Bosch Rexroth LFA32WEA-7X/ also offers flexibility with various area ratios, springs options, and different cracking pressures to suit specific application needs. It is part of standard series Size 6 with component series 1X, 2X, 3X ensuring compatibility with a wide range of operational demands including maximum operating pressures up to several bars and maximum flow rates expressed in liters per minute.
With NBR seals compatible with hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, HFC; this robustly constructed valve ensures consistent performance in demanding environments while adhering to ISO connection diagram standards for ease of integration into hydraulic systems.
$504.00 USD
More are expected on December 30, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as December 30, 2024 when ordered in
This product is eligible for factory repair.
Size 32, symbol WEA, hydraulically actuated
Industrial hydraulic valve in a high performance range. Reliable covering of cartridge valve for insertion.
Unpacked Weight: 3.48 kg
2 area ratios 4 different springs 6 different cracking pressures
2-way cartridge valves are elements that have been designed for a compact block design. The power section with connections A and B is installed into the control block in a receiving hole standardized according to ISO 7368 and closed with a cover. In most cases, the cover is also the connection from the control side of the power section to the pilot control valves.
By control with respective pilot control valves, the power section can be applied for pressure, directional and throttle functions or a combination of these functions. Particularly efficient solutions are realized by adjustment of the size to various flows of the individual ways of an actuator. The application of power sections of elements for multiple functions is very cost-effective.
2-way cartridge valves generally consist of control cover (1) and installation kit (2). The control cover contains the control bores and optionally a stroke limitation function, a hydraulically controlled directional seat valve or a shuttle valve according to the required overall function. Additionally, electrically operated directional spool or seat valves can be installed at a control cover. The installation kit consists of a bushing (3), ring (4) (only up to NG32), valve poppet (5), optionally with damping nose (6) or without damping nose (7) as well as closing spring (8).
The function of 2-way cartridge valves is pressure-dependent. This way, three crucial pressurized areas A1, A2, A3 are realized for the function. The area at valve seat A1 is observed as 100 %. Depending on the version, the annulus area A2 realized by grading is 7 % or 50 % of area A1. The area ratio A1 : A2 is respectively either 14.3 : 1 or 2 : 1. The area A3 is identical to the sum of areas A1 + A2. Due to the different area ratios A1 : A2 and the resulting different annulus areas (A2), the area A3 is one time 107 % and another time 150 % of the area A1 at the seat, which is observed as 100 %.
In general, the following applies:
The areas A1 and A2 are effective in opening direction. The area A3 and the spring are effective in closing direction. The direction of action of the resulting force from the opening and closing forces determines the spool position of the 2-way cartridge valve.
The 2-way cartridge valves can be passed from A to B or from B to A. Pressurization of area A3 by pilot oil discharge from channel B or external pilot oil supply, channel A is blocked without leakage.
Valve cover |
Component series 6X, 2X, 7X |
Maximum flow 25000 l/min |
Maximum operating pressure 420 bar |
Standard series |
Size 16 … 160 |
Data Sheet | Download Data Sheet |
3D CAD | Download 3D CAD |
3D CAD | Download 3D CAD |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Spool symbol | Symbol WEA |
Max. pressure | 420 |
Productgroup ID | 9,10,11,12,13,14 |
Type of actuation | with hydraulic actuation |
Size | 32 |
Type of connection | Subplate mounting |
Connection diagram | ISO 7368-09-5-1-16 |
Weight | 3.48 |
Seals | NBR |
Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
01 |
02 |
03 |
04 |
05 |
06 |
07 |
||
LFA |
WEA |
– |
/ |
Type |
||
01 |
Control cover LFA |
LFA |
Size |
||
02 |
NG 16 |
16 |
NG 25 |
25 |
|
NG 32 |
32 |
|
NG 40 |
40 |
|
NG 50 |
50 |
|
NG 63 |
63 |
|
NG 80 |
80 |
|
NG 100 |
100 |
|
NG 125 |
125 |
|
NG 160 |
160 |
|
Version |
||
03 |

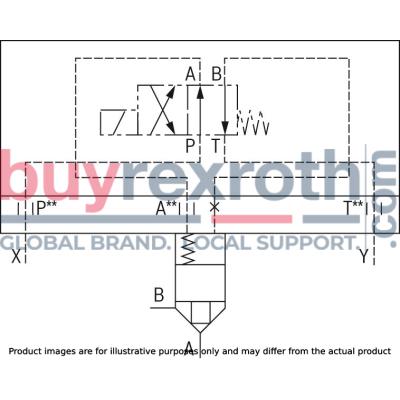

Control cover version "WEA": For set-up of a directional valve |
WEA |
Component series |
||
04 |
Component series 70 ... 79 (70 ... 79: unchanged installation and connection dimensions) 1) |
7X |
Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions) 2) |
6X |
|
Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) 3) |
2X |
|
Nozzle fitting |
||
05 |
Orifice in channel A 4) |
A.. |
06 |
Orifice in channel P 4) |
P.. |
07 |
Orifice in channel T 4) |
T.. |
1) Component series 7X for sizes 16...63 | |
2) Component series 6X for sizes 80 and 100 | |
3) Component series 2X for sizes 125 and 160 | |
4) This orifice is designed as screw-type orifice. If an orifice is to be installed, the respective code letter with the orifice Ø in 1/10 mm has to be entered in the type designation. | |
Example: A12 = Orifice with Ø1.2 mm in channel A. Additional orifice Ø see diagrams/characteristic curves. |
Orifice symbol |
Symbol in ordering code |
|||
A** |
A** |
This orifice is designed as screw-type orifice. If an orifice is to be installed, the respective code letter with the orifice Ø in 1/10 mm has to be entered in the type designation. Example: A12 = Orifice with Ø1.2 mm in channel A. |
||
Ø1,2 |
This orifice is designed as bore. No specifications are made in the type designation. (Orifice Ø in mm) |
|||
Z12 |
This orifice is designed as screw-type orifice. This is a standard orifice. No specifications are made in the type designation. (Orifice Ø in 1/10 mm) |
Notices:
For ordering code of orifices, see "Accessories" Additional functions with special numbers see "Information".
general
Size |
16 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | ||
Weight |
kg |
1.2 | 2.3 | 4 | 7.4 | 10.5 | 21 | 27 | 42 | 80 | 150 | |
Ambient temperature range |
NBR seals |
°C |
-30 … +60 | |||||||||
FKM seals |
°C |
-20 … +60 | ||||||||||
MTTFD values according to EN ISO 13849 1) |
Years |
150 |
1) | For further details, see data sheet 08012 |
hydraulic
Size |
16 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | ||
Maximum operating pressure |
Port X 1) |
bar |
315 350 420 |
|||||||||
Port Z2 |
bar |
- - - |
315 1) 350 1) 420 1) |
|||||||||
Port Y |
depending on the maximum tank pressure of the attached directional valve | |||||||||||
Maximum flow 2) |
l/min |
25000 | ||||||||||
Hydraulic fluid |
see table | |||||||||||
Hydraulic fluid temperature range |
NBR seals |
°C |
-30 … +80 | |||||||||
FKM seals |
°C |
-20 … +80 | ||||||||||
Viscosity range |
mm²/s |
2.8 … 500 | ||||||||||
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 3) |
Class 20/18/15 according to ISO 4406 (c) |
1) | dependent on the attached directional valve |
2) | NG-dependent; see characteristic curves |
3) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
Data sheet |
|
Mineral oils |
HL, HLP, HLPD, HVLP, HVLPD |
NBR, FKM |
DIN 51524 |
90220 |
|
Bio-degradable 1) |
Insoluble in water |
HETG |
NBR, FKM |
ISO 15380 |
90221 |
HEES |
FKM |
||||
Soluble in water |
HEPG |
FKM |
ISO 15380 |
||
Flame-resistant |
Water-free |
HFDU (glycol base) |
FKM |
ISO 12922 |
90222 |
HFDU (ester base) 1) |
FKM |
||||
Containing water 1) |
HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620) |
NBR |
ISO 12922 |
90223 |
|
Important information on hydraulic fluids: For more information and data on the use of other hydraulicfluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). Flame-resistant - containing water: Life cycle as compared to operation with mineral oil HL, HLP 30 … 100%. Maximum hydraulic fluid temperature 60 °C Bio-degradable and flame-resistant – containing water: If this hydraulic fluid is used, small amounts of dissolved zinc may get into the hydraulic system. |
1) | Not recommended for corrosion-protected version "J3" (contains zinc) |
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
Data sheet |
|
Mineral oils |
HL, HLP, HLPD, HVLP, HVLPD |
NBR, FKM |
DIN 51524 |
90220 |
|
Bio-degradable 1) |
Insoluble in water |
HETG |
FKM |
ISO 15380 |
90221 |
HEES |
FKM |
||||
Soluble in water |
HEPG |
FKM |
ISO 15380 |
||
Flame-resistant |
Water-free |
HFDU (glycol base) |
FKM |
ISO 12922 |
90222 |
HFDU (ester base) 1) |
FKM |
||||
Containing water 1) |
HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620) |
NBR |
ISO 12922 |
90223 |
|
Important information on hydraulic fluids: For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.).Flame-resistant – containing water: Life cycle as compared to operation with mineral oil HL, HLP 30 … 100% Maximum hydraulic fluid temperature 60 °CBio-degradable and flame-resistant: If this hydraulic fluid is used, small amounts of dissolved zinc may get into the hydraulic system. |
1) | Not recommended for corrosion-protected version "J3" (contains zinc) |
For applications outside these parameters, please consult us!
Orifices
Orifice Ø in mm |
Order numbers |
Material numbers |
||||||
M6 conical |
M8 x 1 conical |
G 1/8 conical |
G 1/4 conical |
G 3/8 conical |
G 1/2 conical |
G 1 conical |
||
– |
00 |
– |
– |
– |
– |
– |
– |
– |
0,5 |
05 |
R913040356 |
R913017600 |
R913030187 |
R913040456 |
– |
– |
– |
0,6 |
06 |
R913040358 |
R913017605 |
R913017606 |
R913020197 |
– |
– |
– |
0,7 |
07 |
R913040360 |
R913017609 |
R913046092 |
– |
– |
– |
– |
0,8 |
08 |
R913029447 |
R913017614 |
R913017616 |
R913017615 |
R913040481 |
R913040499 |
– |
1,0 |
10 |
R913019186 |
R913017621 |
R913024679 |
R913017622 |
R913040484 |
R913040500 |
– |
1,2 |
12 |
R913040362 |
R913017627 |
R913017629 |
R913017628 |
R913040486 |
R913040501 |
– |
1,5 |
15 |
R913028337 |
R913017637 |
R913017639 |
R913017638 |
R913040488 |
R913028317 |
– |
1,8 |
18 |
R913030186 |
R913017644 |
R913017646 |
R913017645 |
R913040489 |
R913045913 |
– |
2,0 |
20 |
R913029870 |
R913017651 |
R913040450 |
R913017652 |
R913028417 |
R913028336 |
– |
2,5 |
25 |
R913032543 |
R913035796 |
R913017656 |
R913019582 |
R913040493 |
R913040502 |
– |
3,0 |
30 |
R913040368 |
R913017661 |
R913017663 |
R913017662 |
R913018266 |
R913040503 |
R913040467 |
3,5 |
35 |
– |
R913017667 |
R913040452 |
R913040463 |
R913028318 |
R913019856 |
R913040469 |
4,0 |
40 |
– |
R913017670 |
R913027078 |
R913040464 |
R913018265 |
R913029168 |
R913040470 |
4,5 |
45 |
– |
R913046571 |
R913017671 |
R913040465 |
– |
R913040506 |
– |
5,0 |
50 |
– |
– |
R913017673 |
R913040468 |
R913023871 |
R913019857 |
R913040471 |
5,5 |
55 |
– |
– |
R913027077 |
– |
R913040495 |
R913053659 |
– |
6,0 |
60 |
– |
– |
– |
– |
R913023870 |
R913028418 |
R913020247 |
7,0 |
70 |
– |
– |
– |
R913040461 |
R913017675 |
R913040509 |
– |
7,5 |
75 |
– |
– |
– |
– |
R913023430 |
– |
R913018328 |
8,0 |
80 |
– |
– |
– |
– |
R913046570 |
R913040510 |
R913020246 |
closed |
99 |
R913019128 |
R913019129 |
R913019137 |
R913019136 |
R913019138 |
– |
R913019140 |
Other orifices upon request.
Plug screws |
|
Thread |
Tightening torque MA in Nm ±10 % |
G 1/8 |
12 |
G 1/4 |
30 |
G 3/8 |
55 |
G 1/2 |
80 |
G 3/4 |
135 |
G 1 |
225 |
G 1 1/4 |
360 |
LFA . WEA… (NG16 … 32)
LFA . WEA… (NG40 ... 125)
LFA . WEA… (NG160)
Control cover "WEA" for set-up of a directional valve: NG16 ... 50
Dimensions in mm
1 |
Name plate at NG16, 25, 32 |
2 |
Name plate at NG40 and 50 |
3 |
Port X and Y optionally as threaded ports at NG40 and 50 |
4 |
Directional spool valve type 4WE 6 D… (pilot control valve), separate order |
5 |
Directional seat valve type M-3SEW 6 … (pilot control valve), separate order |
6 |
Porting pattern according to ISO 4401-03-02-0-05 (mounting thread for version "/12" see data sheet 08936) |
NG |
D1 |
H1 |
H2 |
H3 |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||
16 | - | 40 |
- - |
15 | 65 | 80 | - | - | 17 | 47.5 | 4 |
25 | - | 40 |
- - |
24 | 85 | 85 | - | - | 27 | 64 | 4 |
32 | - | 50 |
- - |
28 | 100 | 100 | - | - | 34.5 | 71.5 | 4 |
40 | G1/2 | 60 |
30 - |
32 | 125 | 125 | 72 | 53 | 47 | 84 | 6 |
50 | G1/2 | 68 |
32 - |
34 | 140 | 140 | 80 | 60 | 54.5 | 91.5 | 6 |
Control cover "WEA" for set-up of a directional valve: NG63
Dimensions in mm
1 |
Name plate |
2 |
Port X and Y optionally as threaded ports |
3 |
Directional spool valve type 4WE 10 D… (pilot control valve), separate order |
4 |
Directional seat valve type M-3SEW 10 … (pilot control valve), separate order |
5 |
Porting pattern according to ISO 4401-05-04-0-05 (mounting thread for version "/12" see data sheet 08936) |
Control cover "WEA" for set-up of a directional valve: NG80 ... 100
Dimensions in mm
1 |
Name plate |
2 |
Port X and Y optionally as threaded ports |
3 |
Plug screw at type WEB |
4 |
Plug screw at type WEA |
5 |
Directional spool valve type 4WE 10 D… (pilot control valve), separate order |
6 |
Directional seat valve type M-3SEW 10 … (pilot control valve), separate order |
7 |
Porting pattern according to ISO 4401-05-04-0-05 (mounting thread for version "/12" see data sheet 08936) |
NG |
D1 |
H1 |
H2 |
H3 |
H4 |
L3 |
L4 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
80 | 250 | 80 | 30 | 45 | 45 | 10 | 16 |
100 | 300 | 100 | 24 | 52.5 | 55 | 13 | 18 |
Control cover "WEA" for set-up of a directional valve: NG125 ... 160
Dimensions in mm
1 |
Name plate |
2 |
Port X and Y optionally as threaded ports |
3 |
Plug screw at type WEB |
4 |
Plug screw at type WEA |
5 |
Directional spool valve type 4WE 10 D… (NG125) or type WEH 25 … (NG160) (pilot control valve), separate order |
6 |
Directional seat valve type M-3SEW 10 … (pilot control valve), separate order |
7 |
Porting pattern according to NG125: ISO 4401-05-04-0-05 NG160: ISO 4401-08-08-0-05(mounting thread for version "/12" see data sheet 08936) |
NG |
D1 |
H1 |
H2 |
H3 |
H4 |
L3 |
L4 |
L5 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
125 | 380 | 105 | 51 | 56 | 51 | 16 | 10 | 23 |
160 | 480 | 150 | 80 | 71 | 80 | 15 | 15 | 46 |
LFA control cover mounting screws |
||
Hexagon socket head cap screws ISO 4762 - 10.9-flZn/nc/480h/C 1) |
||
Size |
Quantity |
Tightening torque MA in Nm ±10 % |
16 |
4 |
30 |
25 |
4 |
100 |
32 |
4 |
240 |
40 |
4 |
480 |
50 |
4 |
480 |
63 |
4 |
1600 |
80 |
8 |
800 |
100 |
8 |
1600 |
125 |
8 |
3100 |
160 |
12 |
5000 |
1) Hexagon socket head cap screws UNC, see data sheet 08936 |
Mounting screws included in the scope of delivery.
Notice:
The tightening torques stated are guidelines when using screws with the specified friction coefficients and when using a manual torque wrench (tolerance ± 10 %). The specified tightening torques were calculated with total friction coefficient μ = 0.09 … 0.14; adjust in case of modified surfaces. Supplied mounting screws are only suitable for direct assembly on a block. If an intermediate cover is used, mounting screws have to be designed accordingly longer (see dimensions).Size 16 ... 63
Dimensions in mm
Size 80 ... 100
Dimensions in mm
Size 125
Dimensions in mm
Size 160
Dimensions in mm
Installation bore and connection dimensions according to ISO 7368
Size 16 ... 63
Dimensions in mm
1 |
Bore for locating pin |
2 |
80 mm only at control cover for directional valve set-up NG16 (axis X–Y bore) |
Size 80 ... 100
Dimensions in mm
1 |
Bore for locating pin |
Size 125
Dimensions in mm
1 |
Bore for locating pin |
Size 160
Dimensions in mm
Required surface quality of the valve contact surface |
1 |
Bore for locating pin |
Notice:
The dimensions are nominal dimensions which are subject to tolerances.
Notice:
The dimensions are nominal dimensions which are subject to tolerances.
Connection dimensions according to ISO 7368
NG |
16 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | |
ØD5 1) |
M8 | M12 | M16 | M20 | M20 | M30 | M24 | M30 | - | - | |
ØD6 |
mm |
4 | 6 | 8 | 10 | 10 | 12 | 16 | 20 | - | - |
ØD7H13 |
mm |
4 | 6 | 6 | 6 | 8 | 8 | 10 | 10 | - | - |
H4 |
mm |
20 | 25 | 35 | 45 | 45 | 65 | 50 | 63 | - | - |
L1 |
mm |
65 80 |
85 - |
102 - |
125 - |
140 - |
180 - |
250 - |
300 - |
- - |
- - |
L2 |
mm |
46 - |
58 - |
70 - |
85 - |
100 - |
125 - |
200 - |
245 - |
- - |
- - |
L3 |
mm |
23 | 29 | 35 | 42.5 | 50 | 62.5 | - | - | - | - |
L4 |
mm |
25 | 33 | 41 | 50 | 58 | 75 | - | - | - | - |
L5 |
mm |
10.5 | 16 | 17 | 23 | 30 | 38 | - | - | - | - |
1) | Mounting thread for version "/12" see data sheet 08936 |
1 |
Bore for locating pin |
2 |
80 mm only at control cover for directional valve set-up NG16 (axis X–Y bore) |
Notices:
The specified tightening torques stated are guidelines when using screws with the specified friction coefficients and when using a manual torque wrench (tolerance ± 10%). The specified tightening torques were calculated with total friction coefficient μtotal = 0.09 ... 0.14; adjust in case of modified surfaces. Supplied mounting screws are only suitable for direct assembly on a block. If an intermediate cover is used, mounting screws have to be designed accordingly longer.Mounting screws (included in scope of delivery)
Hexagon socket head cap screws ISO 4762 - 10.9-flZn/nc/480h/C 1) |
||
Size |
Quantity |
Tightening torque MA in Nm ±10 % |
16 |
4 |
30 |
25 |
4 |
100 |
32 |
4 |
240 |
40 |
4 |
480 |
50 |
4 |
480 |
63 |
4 |
1600 |
80 |
8 |
800 |
100 |
8 |
1600 |
125 |
8 |
3100 |
160 |
12 |
5000 |
1) | Hexagon socket head cap screws UNC, see data sheet 08936 |
Additional functions with special numbers: Control cover (upon request)
Symbol |
Type |
Size |
Description / special characteristic |
LFA . WEA16-7X/… |
25, 30 |
Additional external ports X and Y (G1/4) |
|
LFA . WEA54-7X/... |
32, 50, 63 |
Cover for logic zero position open |
|
LFA . WEA54-6X/… |
25 ... 50 |
Additional functions with special numbers (upon request)
Orifice symbol
Orifice symbol |
Ordering code |
|||
A** |
A** |
This orifice is designed as screw-type orifice. If an orifice is to be installed, the respective code letter with the orifice Ø in 1/10 mm has to be entered in the type designation. Example: A12 = Orifice with Ø1.2 mm in channel A. |
||
Ø1,2 |
This orifice is designed as bore. No specifications are made in the type designation. (Orifice Ø in mm) |
|||
Z12 |
This orifice is designed as screw-type orifice. This is a standard orifice. No specifications are made in the type designation. (Orifice Ø in 1/10 mm) |
Orifice selection
Related Products
R900938201
$1,255.00 USD
R978901018
$4,786.00 USD
R901339704
$1,840.00 USD
R978013502
$1,426.00 USD
R978014342
$1,814.00 USD
