Z2FRM6TB2-2X/6QRV
Manufacturer: Bosch Rexroth
Material #: R900910912
Model : Z2FRM6TB2-2X/6QRV
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

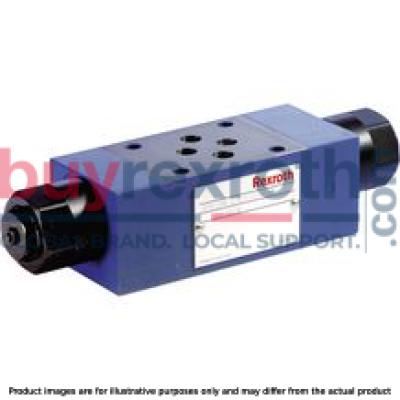

The Bosch Rexroth Z2FRM6TB2-2X/6QRV (R900910912) is a dual flow control valve designed for stabilizing flow regardless of pressure and temperature variations. This sandwich plate valve is engineered to maintain a consistent flow in hydraulic systems by using one or two flow control cartridges. The throttling of the flow between channels AB and AB occurs at a designated throttling point, with the throttle cross-section being adjustable via rotation of the adjustment type.
A key feature of this model is its pressure compensator, which ensures pressure-independent stabilization in channel AB. The compensator reacts to changes in flow by balancing forces, thus moving to a control position that maintains a steady flow even when channel AB's pressure fluctuates.
Additionally, the Z2FRM6TB2-2X/6QRV valve allows for free return flow from channel AB to AB through an integrated check valve. This component is designed with user convenience in mind, featuring an internal hexagon for adjustments.
The valve's design adheres to international standards with porting patterns according to DIN form A and ISO with locating holes, making it versatile for various applications. It comes equipped with either one or two flow control cartridges based on system requirements. With a maximum operating pressure of 315 bar and a maximum flow rate specified at the time of order, this Bosch Rexroth valve stands out for its robust performance in ensuring consistent fluid management within hydraulic systems.
$611.00 USD
More are expected on April 15, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 15, 2025 when ordered in
This product is eligible for factory repair.
The valve type Z2FRM is a 2-way flow control valve in sandwich plate design. It is used for pressure and temperature-independent flow stabilization.
The valves basically consist of housing (1) and one or two flow control cartridges.
Throttling of the flow from channel A➁/B➁ to channel A➀/B➀ is realized at the throttling point (3). The throttle cross-section is set by rotation of the adjustment type (2) between the throttling point (3) and the throttle bolt (4).
For pressure-independent flow stabilization in channel A➀/B➀, a pressure compensator (5) is connected downstream to the throttling point (3).
The pressure compensator (5) is pressed by the compression spring (7) against the plug screw (8) and remains in open position if there is no flow through the valve. When there is a flow through the valve, the pressure in channel A➁/B➁ applies a force on the pressure compensator (5). It is set to control position until the forces are balanced. If the pressure in channel A➁/B➁ rises, the pressure compensator (5) moves in closing direction until the forces are balanced again. Due to this continuous compensation of the pressure compensator, a constant flow is obtained.
The free return flow from channel A➀/B➀ to channel A➁/B➁ is via the check valve (6).
Type Z2FRM 6 C…
|
➀ |
component side |
|
➁ |
plate side |
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves (via check valve; orifice closed)
Flow qV depending on inlet pressure pE
|
➀ |
component side |
|
➁ |
plate side |
Type Z2FRM 6 A…
Type Z2FRM 6 B…
Type Z2FRM 6 C…
Type Z2FRM 6 T…
Version "A" and "B"
Dimensions in mm
|
➀ |
Component side – porting pattern according to ISO 4401-03-02-0-05 (with locating hole Ø3 x 5 mm deep) |
|
➁ |
plate side – porting pattern according to DIN 24340 form A (without locating hole), or ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St; version "/60") |
|
1 |
Name plate |
|
2 |
Flow control cartridge at flow control in channel A, hexagon SW27; MA = 50 Nm |
|
3 |
Flow control cartridge at flow control in channel B, hexagon SW27; MA = 50 Nm |
|
4 |
Adjustment type with internal hexagon SW3 |
|
5 |
Identical seal rings for ports A➁, B➁, P➁, T➁ |
|
6 |
Valve mounting bores |
|
7 |
Modification from discharge to supply control is realized by rotation of the device around axis "X" – "X" |
|
8 |
Seal ring plate |
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M5 - 10.9
Notice!
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Version "C"
Dimensions in mm
|
➀ |
Component side – porting pattern according to ISO 4401-03-02-0-05 (with locating hole Ø3 x 5 mm deep) |
|
➁ |
plate side – porting pattern according to DIN 24340 form A (without locating hole), or ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St; version "/60") |
|
1 |
Name plate |
|
2 |
Flow control cartridge, hexagon SW27, MA = 50 Nm |
|
4 |
Adjustment type with internal hexagon SW3 |
|
5 |
Identical seal rings for ports A➁, B➁, P➁, T➁ |
|
6 |
Valve mounting bores |
|
7 |
Modification from discharge to supply control is realized by rotation of the device around axis "X" – "X" |
|
8 |
Seal ring plate |
Version "T"
Dimensions in mm
|
➀ |
Component side – porting pattern according to ISO 4401-03-02-0-05 (with locating hole Ø3 x 5 mm deep) |
|
➁ |
plate side – porting pattern according to DIN 24340 form A (without locating hole), or ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St; version "/60") |
|
1 |
Name plate |
|
2 |
Flow control cartridge, hexagon SW27, MA = 50 Nm |
|
4 |
Adjustment type with internal hexagon SW3 |
|
5 |
Identical seal rings for ports A➁, B➁, P➁, T➁ |
|
6 |
Valve mounting bores |
|
7 |
Modification from discharge to supply control is realized by rotation of the device around axis "X" – "X" |
|
8 |
Seal ring plate |
