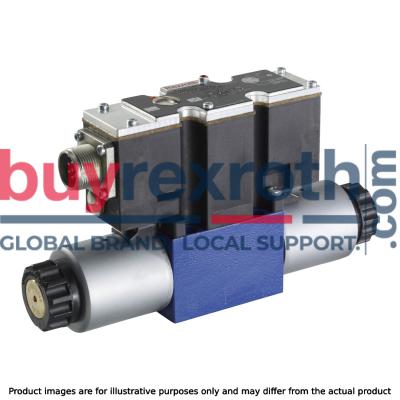

PROPORTIONAL DIRECTIONAL VALVE 4WRAE10W60-2X/G24N9K31/A1V
Manufacturer: Bosch Rexroth
Material #: R900900988
Model : 4WRAE10W60-2X/G24N9K31/A1V
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 4WRAE10W60-2X/G24N9K31/A1V (R900900988) is a high-performance industrial hydraulic valve that provides reliable control of oil flow direction in accordance with its spool symbol W. This direct-actuated spool valve features integrated electronics for electrical actuation, allowing for precise manipulation of flow with an analog command value signal of 0-10 V. Designed for subplate mounting and conforming to ISO and NFPA standards, the valve facilitates easy installation and compatibility.
The 4WRAE10W60-2X/G24N9K31/A1V valve is equipped with a concealed manual override and auxiliary actuation, ensuring operational versatility and safety in case of electronic control failure. The electrical connection utilizes a connector pole PE according to EN, providing secure connectivity. The valve operates at a maximum pressure capacity with a nominal flow rate, demonstrating its capability to handle substantial hydraulic system demands.
This model is also characterized by its spring-centered control spool and the use of FKM seals which offer excellent chemical resistance and durability under various operating conditions. It supports a variety of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR types. The unit's size adheres to CETOP D standards while providing maximum flexibility in flow management.
In summary, the Bosch Rexroth 4WRAE10W60-2X/G24N9K31/A1V (R900900988) stands out as an essential component for systems requiring precise hydraulic flow direction control with robust performance specifications suitable for diverse industrial applications.
$3,294.00 USD
More are expected on December 11, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as December 11, 2024 when ordered in
This product is eligible for factory repair.
Size 10, symbol W, electrical with integrated electronics, 24 V DC
Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol.
Unpacked Weight: 6.2 kg
Direct operated proportional directional valve, without electrical position feedback, with integrated electronics (OBE) Control of the direction and magnitude of a flow Operation by means of proportional solenoids with central thread and detachable coil For subplate mounting: Porting pattern according to ISO 4401 Spring-centered control spool
The 4/2 and 4/3 proportional directional valves are designed as direct operated devices in plate design. Operation by means of proportional solenoids with central thread and detachable coil. The solenoids are controlled via integrated electronics.
Set-up:
The valve basically consists of:
Housing (1) with connection surface Control spool (2) with compression springs (3 and 4) Solenoids (5 and 6) with central thread Integrated electronics (7)Function:
With de-energized solenoids (5 and 6), central position of the control spool (2) due to compression springs (3 and 4) Direct actuation of the control spool (2) by energization of one proportional solenoid, e. g. energization of solenoid "b" (6) Control spool (2) is moved to the left in proportion to the electrical input signal Connection from P to A and B to T via orifice-type cross-sections with progressive flow characteristics Switching off of the solenoid (6) Control spool (2) is returned to the central position by the compression spring (3)
Valve with two spool positions (type 4WRA...A...):
The function of this valve version basically corresponds to the valve with three spool positions. This 2 spool position valve is, however, only equipped with solenoid “a”. Instead of the 2nd proportional solenoid, there is a plug screw (8.1) with NG 6 or a cover (8.2) with NG10.
Notice:
The tank line must not be allowed to run empty. With corresponding installation conditions, a preload valve (preload pressure approx. 2 bar) must be installed.
(measured with HLP46, ϑÖl = 40 ±5 °C)
Rated flow 7 l/min at a valve pressure differential of 10 bar
NG6
Rated flow 15 l/min at a valve pressure differential of 10 bar
NG6
Rated flow 30 l/min at a valve pressure differential of 10 bar
NG6
Transition function with stepped electric input signals
NG6
Performance limit rated flow 7 l/min
NG6
Performance limit rated flow 15 l/min
NG6
Performance limit rated flow 30 l/min
NG6
Rated flow 30 l/min at a valve pressure differential of 10 bar
NG10
Rated flow 60 l/min at a valve pressure differential of 10 bar
NG10
Transition function with stepped electric input signals
NG10
Performance limit rated flow 30 l/min
NG10
Performance limit rated flow 60 l/min
NG10
Symbols
|
With control spool symbol E1- and W1-, the following applies: |
|
|
P → A: qvmax |
B → T: qv/2 |
|
P → B: qv/2 |
A → T: qvmax |
|
Notice: |
|
Type 4WRAE
Type 4WRAE...EA;Type 4WRAE...WA
|
Pin assignment |
Contact |
Signal |
|
Power supply |
A |
24 VDC (19...35 VDC) |
|
B |
GND |
|
|
C |
cannot be used 1) |
|
|
Differential amplifier input (command value) |
D |
Command value (±10 V / 4...20 mA) |
|
E |
Reference potential |
|
|
F |
cannot be used 1) |
|
|
1) |
Contacts C and F must not be connected! |
|
Command value:
Positive command value (0...10 V or 12...20 mA) at D and reference potential at E result in flow from P → A and B → T.
Negative command value (0...-10 V or 12...4 mA) at D and reference potential at E result in flow from P → B and A → T.
With valves with solenoid on side “a” (control spool variant EA and WA), a positive command value at D and reference potential at E (NG6: 4...20 mA and NG10: 12...20 mA) result in flow from P → B and A → T.
Connection cable: Recommendation:
up to 25 m cable length type LiYCY 5 x 0.75 mm²
up to 50 m cable length type LiYCY 5 x 1.0 mm²
External diameter 6.5 … 11 mm
Connect shield on PE only on the supply side
4WRAE 6
Dimensions in mm
|
1 |
Valve housing |
|
2 |
Proportional solenoid "a" |
|
3 |
Proportional solenoid "b" |
|
4 |
Mating connector according to DIN EN 175201-804, separate order |
|
5 |
Name plate |
|
6 |
Identical seal rings for ports A, B, P, and T |
|
7 |
Plug screw for valves with one solenoid (2 spool positions, version "EA" or "WA") |
|
8 |
Integrated electronics (OBE) |
|
9 |
Space required for the connection cable and to remove the mating connector |
|
10 |
Machined valve contact surface; Porting pattern according to ISO 4401-03-02-0-05 (with locating hole) |
Recommended valve mounting screws (separate order):
4 hexagon socket head cap screws ISO 4762 - M5 x 50 - 10.9-flZn-240h-L
tightening torque MA = 7 Nm ± 10%, material no. R913000064 or
4 hexagon socket head cap screws ISO 4762 - M5 x 50 - 10.9
tightening torque MA = 8.9 Nm ± 10%
4WRAE 10
Dimensions in mm
|
1 |
Valve housing |
|
2 |
Proportional solenoid "a" |
|
3 |
Proportional solenoid "b" |
|
4 |
Mating connector according to DIN EN 175201-804, separate order |
|
5 |
Name plate |
|
6 |
Valve bleed screw: Notice: Valves are bled prior to delivery |
|
7 |
Identical seal rings for ports A, B, P and T (T1) |
|
8 |
Cover for valves with one solenoid (2 spool positions, version "EA" or "WA") |
|
9 |
Integrated electronics (OBE) |
|
10 |
Space required for the connection cable and to remove the mating connector |
|
11 |
Machined valve contact surface; Porting pattern according to ISO 4401-05-04-0-05 |
Recommended valve mounting screws (separate order):
4 hexagon socket head cap screws ISO 4762 - M6 x 40 - 10.9-flZn-240h-L
tightening torque MA = 12.5 Nm ± 10 %, material no. R913000058 or
4 hexagon socket head cap screws ISO 4762 - M6 x 40 - 10.9
tightening torque MA = 15.5 Nm ± 10%
Mating connectors for valves with round connector, 6-pole + PE
7P Z31
Mating connectors for valves with round connector, 6-pole + PE
7P Z31
For valves with round connector according to EN 175201-804, 6-pole + PE as well as 6-pole, compatible with VG 95328Data sheet
