PROPORTIONAL DIRECTIONAL VALVE 4WRKE25E1-350L-3X/6EG24EK31/A1D3M

Manufacturer: Bosch Rexroth

Material #: R900772022

Model : 4WRKE25E1-350L-3X/6EG24EK31/A1D3M

Destination

$9,715.53 USD

Availability: Backordered

Ships from US

Add to Cart

Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.

Qty:
Delivered as early as March 31, 2027

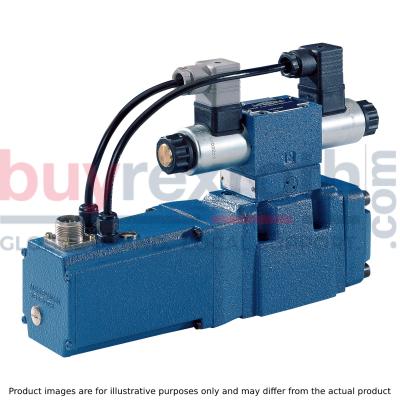

PROPORTIONAL DIRECTIONAL VALVE 4WRKE25E1-350L-3X/6EG24EK31/A1D3M

Size 25, symbol E1, electrical with integrated electronics, 24 V DC

Industrial hydraulic valve in the high performance range; reliable control of the oil flow direction according to the hydraulic symbol; high accuracy through internal piston position feedback

Unpacked Weight: 17.800 kg

Characteristic curve, linear
Spool valve
Pilot-operated
Internal pilot oil supply, external pilot oil return
Size 10 … 35
Component series 3X
Maximum operating pressure 350 bar
Maximum flow 300 l/min

Data Sheet	Download Data Sheet
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Connection diagram	ISO 4401-08-08-0-05
Max. pressure	350
Max. flow	870
Spool symbol	Symbol E1
Type of connection	Subplate mounting
Nominal flow	350
Size	25
Type of actuation	Electrical with integrated electronics
Number of ports	4
Number of switching positions	3
Supply voltage	24 VDC
Electrical connector	Connector 7-pole (6 + PE)
Electrical connection description	Connector 7-pole (6 + PE) according to EN 175201-804
Connectivity	Analog, command value ±10 V
Hydraulic fluid	HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals	NBR
Productgroup ID	9,10,11,12,13,14
Connection diagram NFPA	NFPA T3.5.1 R2-2002 D08
Size_CETOP	D08
Weight	17.800
