DBDS20K1X/230VE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

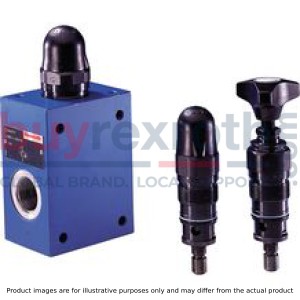

The Bosch Rexroth DBDS20K1X/230VE (R900769600) is a high-performance, direct operated seat valve designed for precise pressure relief in hydraulic systems. This model features a robust construction that includes a sleeve, spring, and poppet with damping piston for pressure ratings up to 230 bar, ensuring reliable operation and easy maintenance. Its primary function is to limit the system pressure by allowing stepless adjustment via the chosen adjustment type. This valve operates by using the spring force to hold the poppet or ball against its seat until the system pressure exceeds the set value. When this occurs, the poppet or ball lifts away from the seat, allowing hydraulic fluid to flow from channel P to T. The stroke of the poppet is precisely limited by an embossing feature. The DBDS20K1X/230VE is designed for versatility and can be employed in various applications requiring dependable pressure regulation. It offers multiple adjustment types for setting system pressure including sleeve with hexagon and protective cap, rotary knob, handwheel, or lockable rotary knob. Moreover, this model ensures safety with its non-losable adjustment type that remains movable even when fully unloaded. This valve's design accounts for different pressure ranges by dividing them into specific ratings corresponding to particular springs designed for maximum operating pressures within those ranges. The DBDS20K1X/230VE variant specifically refers to a poppet seat valve suitable for up to 230 bar operation. For ease of installation and application flexibility, this valve can be used as a screw-in cartridge valve or mounted on a subplate. Its precise engineering ensures smooth pressure adjustments across the entire operating range while maintaining stability and responsiveness under varying load conditions. The DBDS20K1X/230VE stands as a testament to Bosch Rexroth's commitment to quality and innovation in hydraulic system components.
