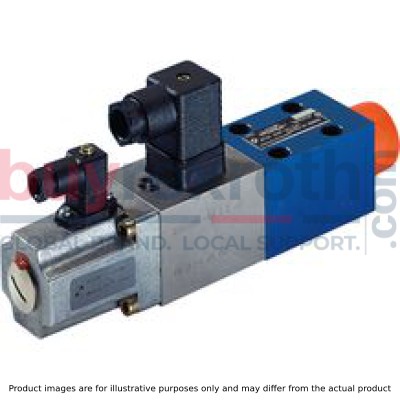

PROPORTIONAL DIRECTIONAL VALVE VT-DFP-A-2X/G24K0/0/V

Manufacturer: Bosch Rexroth

Material #: R900703811

Model : VT-DFP-A-2X/G24K0/0/V

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth VT-DFP-A-2X/G24K0/0/V (R900703811) is a sophisticated pilot valve designed for precise pressure and flow control within hydraulic systems, specifically tailored for the SYDFE system. This model is part of the component series X and is characterized by its analog communication capabilities. It operates through a proportional solenoid which benefits from electrical feedback, ensuring accurate and responsive control. This pilot valve boasts a robust design that can withstand a maximum operating pressure of bar, catering to demanding applications that require reliable performance under high-pressure conditions. The VT-DFP-A-2X/G24K0/0/V is displacement type variable, which allows for fine-tuned adjustments to the hydraulic flow, enhancing the efficiency and precision of the system it is integrated with. Additionally, this model is equipped with control electronics VTDFP that are intended for use with the SYHDFE external control electronics VT X. This feature allows for seamless integration with existing systems and ensures compatibility with external control units, providing users with flexibility in system design and upgrades. The product falls under Bosch Rexroth's product group ID ,,,, and has an unspecified weight. As a pilot valve, it plays a crucial role in hydraulic applications by controlling the operation of main valves. Its reliability and precision make it an essential component in various hydraulic control systems where accurate flow regulation is paramount. In summary, the Bosch Rexroth VT-DFP-A-2X/G24K0/0/V (R900703811) stands out as a high-quality pilot valve offering precise control for complex hydraulic systems. Its compatibility with SYDFE and SYHDFE systems, along with its variable displacement type and robust construction for high-pressure environments, makes it suitable for specialized industrial applications requiring meticulous flow management.

$3,063.00 USD

More are expected on February 4, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as February 4, 2025 when ordered in

This product is eligible for factory repair.

Start Repair

PROPORTIONAL DIRECTIONAL VALVE VT-DFP-A-2X/G24K0/0/V

Unpacked Weight: 1.96 kg

Pilot valve for the pressure and flow control system SY(H)DFE. Operation through a proportional solenoid with electrical feedback Control electronics: VT-DFP for SY(H)DFE1 → external
control electronics VT 5041-3X

Communication: analog
Pilot valve for SYDFE1 - system
Component series 2X
Nominal pressure 350 bar
Nominal pressure 350 bar
Nominal pressure 350 bar

Data Sheet

Download Data Sheet

Displacement type	variable
Productgroup ID	9,10,11,12,13,14
Weight	1.96

01		02		03		04	05		06	07	08	09		10		11
VT-DFP	-		-	2X	/	G24	K0	/					/		-	*

Series
01	Pilot valve for external electronics						VT-DFP
Spool design
02	Standard (not for HFC fluids)						A
	2-groove spool (only for replacement requirement)						B
	4-groove spool (e.g. for HFC fluids)						C
03	Component series						2X
04	Direct voltage 24 V						G24
05	Connector (without mating connector) 1)						K0
Installation orientation connector (VT-DFP) and/or integrated electronics (see also comment on feature 6)
06	radially to the pump axis						0
	folded 90° in the direction of the subplate with counterclockwise direction of rotation						1
	folded 90° in the direction of the subplate with clockwise direction of rotation						2
Additional functions: Closed-loop control		A	B	C	D	R
07							(without)
Electronics assembly, option
08							(without)
Actual pressure value input (For the description of the connectors refer to electrical connection)						Plug-in connector
09							(without)
10	FKM seals suitable for mineral oils (HL, HLP) according to DIN 51524 and HFC fluids 2)						V
11	Further details in the plain text e. g. SO variant						*

1	Material number
2	Serial number
3	Date of production
4	Production order number
5	Type designation

●	available
-	not available

Note on feature 6: Installation orientation of the valve electronics

Clockwise direction of rotation, installation orientation 0	Clockwise direction of rotation, installation orientation 2	Counterclockwise direction of rotation, installation orientation 0	Counterclockwise direction of rotation, installation orientation 1

1)	Connector dependent on the valve type (see "Technical data" and "Electrical connection”).
2)	With the SY(H)DFEn control system with analog interfaces, the plug-in connector X2 can not be used as actual pressure value input. Thus, a separate pressure transducer has to be used and connected to plug-in connector X1 in this case.
3)	Only in connection with SYHDFE and spool design C (feature 2).

1	Material number
2	Serial number
3	Date of production
4	Production order number
5	Type designation

●	available
-	not available

Accessories

Version 10/2011, enquire availability

Notice:

For information on the environment simulation testing for the areas of EMC (electro-magnetic compatibility), climate and mechanical load, see data sheet 30030-U.

mechanic and hydraulic

Mass	Pump without through-drive incl. pilot valve	m	kg	1.96
Hydraulic fluid				Mineral oil (HL, HLP) according to DIN 51524; HFC fluids only in connection with SYHDFE control system and C spool design C (feature 2 of ordering code)
Hydraulic fluid temperature range		ϑ	°C	-20 … +70
Maximum admissible degree of contamination of the hydraulic fluid according to ISO 4406				Class 18/16/13 (for particle size ≤ 4/6/14 μm)

mechanic and hydraulic

Weight without filling quantity	m	kg	1.96
Hydraulic fluid			Mineral oil (HL, HLP) according to DIN 51524; HFC fluids only in connection with SYHDFE control system and C spool design C (feature 2 of ordering code)
Hydraulic fluid temperature range	ϑ	°C	-20 … +70
Maximum admissible degree of contamination of the hydraulic fluid according to ISO 4406			Class 18/16/13 (for particle size ≤ 4/6/14 μm)

electrical

Operating voltage		UB		see VT5041-3X
Inputs	Actual pressure value input X1; pin 10 and 11	U or I		see VT5041-3X
	Analog current inputs, load	RB		see VT5041-3X
	Analog voltage inputs	RE		see VT5041-3X
	Digital inputs	Logic 0		see VT5041-3X
	Digital inputs	Logic 1		see VT5041-3X
Outputs	pactual / UOUT1	UO		see VT5041-3X
	pactual / UOUT1	Imax		see VT5041-3X
	αactual / UOUT2	UO		see VT5041-3X
	αactual / UOUT2	Imax		see VT5041-3X
	Digital outputs	Logic 0		see VT5041-3X
	Digital outputs	Logic 1		see VT5041-3X
Ambient temperature range at the pump		ϑ	°C	-20 … +60
Storage temperature range (pump + electronics)		ϑ	°C	-20 … +70
Type of protection according to EN 60529	Pump incl. pilot valve			IP65 with mounted and locked plug-in connectors

mechanisch und hydraulisch

Weight without filling quantity	m	kg	1.96
Hydraulic fluid			Mineral oil (HL, HLP) according to DIN 51524; HFC fluids only in connection with SYHDFE control system and C spool design C (feature 2 of ordering code)
Hydraulic fluid temperature range	ϑ	°C	-20 … +70
Maximum admissible degree of contamination of the hydraulic fluid according to ISO 4406			Class 18/16/13 (for particle size ≤ 4/6/14 μm)

elektrisch

Operating voltage		UB		see VT5041-3X
Inputs	Actual pressure value input X1; pin 10 and 11	U or I		see VT5041-3X
	Analog current inputs, load	RB		see VT5041-3X
	Analog voltage inputs	RE		see VT5041-3X
	Digital inputs	Logic 0		see VT5041-3X
	Digital inputs	Logic 1		see VT5041-3X
Outputs	nactual / UOUT1	UO		see VT5041-3X
	nactual / UOUT1	Imax		see VT5041-3X
	αactual / UOUT2	UO		see VT5041-3X
	αactual / UOUT2	Imax		see VT5041-3X
	Digital outputs	Logic 0		see VT5041-3X
	Digital outputs	Logic 1		see VT5041-3X
Ambient temperature range at the pump		ϑ	°C	-20 … +60
Storage temperature range (pump + electronics)		ϑ	°C	-20 … +70
Type of protection according to EN 60529	Pump incl. pilot valve			IP65 with mounted and locked plug-in connectors

elektrisch

Operating voltage		UB		see VT5041-3X
Inputs	Actual pressure value input X1; pin 10 and 11	U or I		see VT5041-3X
	Analog current inputs, load	RB		see VT5041-3X
	Analog voltage inputs	RE		see VT5041-3X
	Digital inputs	Logic 0		see VT5041-3X
	Digital inputs	Logic 1		see VT5041-3X
Outputs	pactual / UOUT1	UO		see VT5041-3X
	pactual / UOUT1	Imax		see VT5041-3X
	αactual / UOUT2	UO		see VT5041-3X
	αactual / UOUT2	Imax		see VT5041-3X
	Digital outputs	Logic 0		see VT5041-3X
	Digital outputs	Logic 1		see VT5041-3X
Ambient temperature range at the pump		ϑ	°C	-20 … +60
Storage temperature range (pump + electronics)		ϑ	°C	-20 … +70
Type of protection according to EN 60529	Pump incl. pilot valve			IP65 with mounted and locked plug-in connectors

mechanisch und hydraulisch

Mass	Pump without through-drive incl. pilot valve	m	kg	1.96
Hydraulic fluid				Mineral oil (HL, HLP) according to DIN 51524; HFC fluids only in connection with SYHDFE control system and C spool design C (feature 2 of ordering code)
Hydraulic fluid temperature range		ϑ	°C	-20 … +70
Maximum admissible degree of contamination of the hydraulic fluid according to ISO 4406				Class 18/16/13 (for particle size ≤ 4/6/14 μm)

elektrisch

Operating voltage		UB		see VT5041-3X
Inputs	Actual pressure value input X1; pin 10 and 11	U or I		see VT5041-3X
	Analog current inputs, load	RB		see VT5041-3X
	Analog voltage inputs	RE		see VT5041-3X
	Digital inputs	Logic 0		see VT5041-3X
	Digital inputs	Logic 1		see VT5041-3X
Outputs	pactual / UOUT1	UO		see VT5041-3X
	pactual / UOUT1	Imax		see VT5041-3X
	αactual / UOUT2	UO		see VT5041-3X
	αactual / UOUT2	Imax		see VT5041-3X
	Digital outputs	Logic 0		see VT5041-3X
	Digital outputs	Logic 1		see VT5041-3X
Ambient temperature range at the pump		ϑ	°C	-20 … +60
Storage temperature range (pump + electronics)		ϑ	°C	-20 … +70
Type of protection according to EN 60529	Pump incl. pilot valve			IP65 with mounted and locked plug-in connectors

For applications outside these parameters, please consult us!

For external analog electronics

Details on the electrical connection to the VT 5041-3X amplifier are described in data sheet 30242.

Solenoid

Mating connector 3-pole Z4 M SW according to DIN EN 175301-803 (separate order see Accessories)

Mating connector 4-pole Pg7-G4W1F/Pg7 SW (separate order see Accessories)

Dimensions in mm

Valve mounting screws for all types:

4 hexagon socket head cap screws

ISO4762-M6X40-10.9-flZn-240h-L,

friction coefficient μtotal = 0.09 to 0.14 according to VDA 235-101,

Tightening torque MA = 7 Nm,

material number: R913000058

Amending notes on the SY(H)DFE control systems can be found in the operating instructions (see section “Further information about this control system”).
