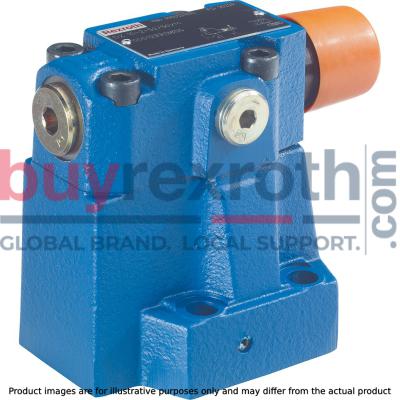

PRESSURE SEQUENCE VALVE DZ20-2-5X/200Y
Manufacturer: Bosch Rexroth
Material #: R900596863
Model : DZ20-2-5X/200Y
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth DZ20-2-5X/200Y (R900596863) is a mechanically actuated industrial hydraulic valve designed for high-performance applications. This pressure sequence valve is capable of reliable pressure sequencing up to the set value, featuring a spool valve that is pilot-operated with an A B spool symbol. It can handle a maximum pressure as specified in its product group ID and accommodates a number of ports for flexible system integration.
The DZ20-2-5X/200Y valve functions by allowing pressure-dependent connection of a second system, ensuring precise control and operation within hydraulic circuits. The main valve includes a spool insert while the pilot control valve comes with an adjustment type and an optional check valve for versatile application use.
This model is distinguished by different types based on control lines configuration, offering variations such as preload valves (DZ...X), sequence valves (DZ...X.Y), and circulation valves (DZ...X.XY), each providing unique operational characteristics. These configurations determine how the pilot oil supply and return function, influencing the movement of the main spool in response to pressure changes.
The DZ20-2-5X/200Y is suitable for preload, sequencing, and changeover operations, designed specifically for subplate mounting with porting patterns according to ISO standards. It can be utilized as a cartridge valve and offers various adjustment types including rotary knob options—both standard and lockable with scale—and sleeves with hexagon and protective cap. An optional check valve enhances its functionality.
With its robust construction including NBR seals, it's compatible with multiple hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. The maximum operating pressure and flow rates are defined by its component series X specifications, ensuring it meets the demands of various hydraulic systems where precise pressure control is essential.
$1,374.00 USD
More are expected on April 1, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 1, 2025 when ordered in
This product is eligible for factory repair.
Size 20, A → B, mechanically actuated
Industrial hydraulic valve in a high performance range. Reliable pressure sequencing to setting.
Unpacked Weight: 5.260 kg
Suitable for use as preload, sequencing and changeover valve For subplate mounting Porting pattern according to ISO 5781 As cartridge valve 4 pressure ratings 4 adjustment types:
• Rotary knob
• Sleeve with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale Check valve, optional
The valve type DZ is a pilot-operated pressure sequence valve.
It is applied for pressure-dependent connection of a second system.
The pressure sequence valve basically consists of main valve (1) with main spool insert (7) and pilot control valve (2) with adjustment type and optional check valve (3).
According to the pilot oil supply and return and the respective function, the following differentiation is made:
Preload valve type DZ. . -.-5X/… (control lines 4.1, 12 and 13 open; control lines 4.2, 14 and 15 closed)
The pressure applied in channel A acts via the control line (4.1) on the pilot spool (5) in the pilot control valve (2). Simultaneously, the pressure in channel A acts via the nozzle (6) on the spring-loaded side of the main spool (7). If the pressure in channel P exceeds the value set at the spring (8), the pilot spool (5) is moved against the spring (8). The hydraulic fluid on the spring-loaded side of the main spool (7) now flows via the nozzle (9), the control edge (10) and control lines (11) and (12) into channel B. Due to this, a pressure drop occurs at the main spool (7). The main spool (7) is moved upwards and opens the connections from channel A to B. The pressure in channel A exceeds the value in channel B by the value set at the spring (8). The leakage occurring at the pilot spool (5) is directed internally via the spring chamber (17) of the pilot control valve and the control line (13) into channel B. If the pressure in the secondary circuit (channel B) exceeds the pressure in channel A, a check valve (3) may be optionally installed for free return flow.
Preload valve type DZ. . -.-5X/.X… (control lines 4.2, 12 and 13 open; control lines 4.1, 14 and 15 closed)
In principle, the function of this valve corresponds to the function of type DZ. . -.-5X/…. With version "X", however, the opening signal is received externally via control line X (4.2).
Sequence valve type DZ. . -.-5X/.Y… (control lines 4.1, 12 and 14 or 15 open; control lines 4.2 and 13 closed)
In principle, the function of this valve corresponds to the function of type DZ. . -.-5X/…. At version "Y", however, the leakage occurring at the pilot spool (5) has to be directed via line (14) or (15) to the tank by means of a depressurized connection. The pilot oil is directed via line (11) and (12) into channel B.
Circulation valve type DZ. . -.-5X/.XY… (control lines 4.2, 14 or 15 open; control lines 4.1, 12 and 13 closed)
In principle, the function of this valve corresponds to the function of type DZ. . -.-5X/…. With version "XY", however, the opening signal is received externally via control line X (4.2). The pilot oil at the pilot spool (16) bore and occurring leakage have to be directed via line (14) or (15) to the tank by means of a depressurized connection.
(measured with HLP46, ϑOil = 40 ±5 °C)
Inlet pressure dependent on the flow (A → B)
Minimum inlet pressure 1) dependent on the flow (A → B)
| 1) Circulation pressure with version "X" |
The characteristic curves apply to the pressure at the valve outlet pT = 0 bar across the entire flow range.
Circulation pressure dependent on the flow (A → B) (only version "XY")
Δp-qV characteristic curves via check valve (B → A)
Type DZ. . -.-5X/.M…
Type DZ. . -.-5X/.XM…
Type DZ. . -.-5X/.YM…
Type DZ. . -.-5X/.XYM…
Type DZ. . -.-5X/…
Type DZ. . -.-5X/.X…
Type DZ. . -.-5X/.Y…
Type DZ. . -.-5X/.XY…
Subplate mounting
Dimensions in mm
|
1 |
Name plate |
|
2.1 |
Port Y for external pilot oil return at version "XY" or spring chamber discharge at version "Y" |
|
2.2 |
Port Y (G1/4) optionally for external pilot oil return at version "XY" or spring chamber discharge at version "Y" |
|
4 |
Adjustment type "1" |
|
5 |
Adjustment type "2" |
|
6 |
Adjustment type "3" |
|
7 |
Adjustment type "7" |
|
8 |
Hexagon SW10 |
|
9 |
Space required to remove the key |
|
10 |
Identical seal rings for ports A and B |
|
11 |
Identical seal rings for ports X, Y, Y1 and Y2 |
|
12 |
Valve mounting bores |
|
13 |
Locking pin |
Cartridge valve
Dimensions in mm
|
1 |
Name plate |
|
2.2 |
Port Y (G1/4) optionally for external pilot oil return at version "XY" or spring chamber discharge at version "Y" |
|
3.1 |
Port Y1 at cartridge valve for pilot oil return at version "XY" or spring chamber discharge at version "no code", "X" and "Y" |
|
3.2 |
Port Y2 at cartridge valve for pilot oil return at version "no code", "X" and "Y" |
|
4 |
Adjustment type "1" |
|
5 |
Adjustment type "2" |
|
6 |
Adjustment type "3" |
|
7 |
Adjustment type "7" |
|
8 |
Hexagon SW10 |
|
9 |
Space required to remove the key |
|
11 |
Identical seal rings for ports X, Y, Y1 and Y2 |
|
12 |
Valve mounting bores |
|
14 |
Main spool insert with nozzle |
|
15 |
Seal ring (main spool) |
|
16 |
Support ring (main spool) |
Installation bore
Dimensions in mm
Dimensions in mm
|
17 |
Versions "X" and "XY" without bore |
|
18 |
Notice! |
|
19 |
Support ring and seal ring are to be inserted into this bore before assembly of the main spool. |
Subplates (separate order)
NG10G 460/01 (G3/8)
G 461/01 (G1/2)
NG25G 412/01 (G3/4)
G 413/01 (G1)
NG32G 414/01 (G1 1/4)
G 415/01 (G1 1/2)
Valve mounting screws (separate order)
For reasons of stability, exclusively the following valve mounting screws may be used:
Subplate mounting:
NG104 x ISO 4762 - M10 x 50 - 10.9-flZn-240h-L
at friction coefficient μtotal = 0.09 to 0.14,
Tightening torque MA = 60 Nm ±10 %,
material no. R913000471
NG254 x ISO 4762 - M10 x 60 - 10.9-flZn-240h-L
at friction coefficient μtotal = 0.09 to 0.14,
Tightening torque MA = 60 Nm ±10 %,
material no. R913000116
NG326 x ISO 4762 - M10 x 70 - 10.9-flZn-240h-L
at friction coefficient μtotal = 0.09 to 0.14,
Tightening torque MA = 60 Nm ±10 %,
material no. R913000126
Cartridge valve:
4 x ISO 4762 - M8 x 40 - 10.9-flZn-240h-L
at friction coefficient μtotal = 0.09 to 0.14,
Tightening torque MA = 31 Nm ±10 %,
material no. R913000205
The tightening torques are guidelines when using screws with the specified friction coefficients and when using a manual torque wrench (tolerance ±10 %).
|
NG |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
L8 |
L9 |
L10 |
B1 |
B2 |
B3 |
B4 |
B5 |
H1 |
H2 |
H3 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 10 | 96 | 35.5 | 33 | 42.9 | 21.5 | - | 7.2 | 21.5 | 31.8 | 35.8 | 85 | 50 | 66.7 | 58.8 | 7.9 | 112 | 92 | 28 |
| 25 | 116 | 37.5 | 35.4 | 60.3 | 39.7 | - | 11.1 | 20.6 | 44.5 | 49.2 | 102 | 59.5 | 79.4 | 73 | 6.4 | 122 | 102 | 38 |
| 32 | 145 | 33 | 29.8 | 84.2 | 59.5 | 42.1 | 16.7 | 24.6 | 62.7 | 67.5 | 120 | 76 | 96.8 | 92.8 | 3.8 | 130 | 110 | 46 |
