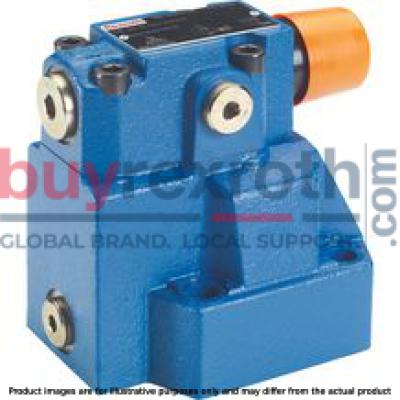

PRESSURE REDUCING VALVE DR10-5-5X/100Y
Manufacturer: Bosch Rexroth
Material #: R900596766
Model : DR10-5-5X/100Y
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth DR10-5-5X/100Y (R900596766) is a high-performance industrial hydraulic valve designed for reliable pressure reduction to a predetermined setting value. This mechanically actuated valve is part of Bosch Rexroth's product group and showcases a spool symbol of B A, indicating its flow path. It operates with a maximum pressure capacity and features multiple ports for versatile connectivity. The type of actuation is mechanical, ensuring robust and direct control.
With a size designation of B, the DR10-5-5X/100Y can handle a substantial max flow rate, making it suitable for various hydraulic applications. It employs subplate mounting for secure installation and conforms to ISO connection diagrams, which facilitates its integration into standardized systems. The valve has multiple switching positions and comes with NBR seals that are compatible with hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC.
Pressure valves like the DR10-5-5X/100Y function by allowing fluid to flow from channel B to channel A unrestrictedly in their rest position. When the pressure in channel A exceeds the spring-set value, the control spool begins to close off the flow. The balance between the pressure in channel A and the spring setting determines the reduced pressure level achieved by this valve.
An external pilot oil return ensures proper functioning while an optional check valve can be installed for free return flow from channel A to B. Additionally, users can monitor pressure adjustments via a pressure gauge connection that controls reduced pressure in channel A.
Available adjustment types for this model include options such as rotary knob, sleeve with hexagon and protective cap, lockable rotary knob with scale, or rotary knob with scale—offering flexibility according to user preferences. The DR10-5-5X/100Y also supports various pressure ratings and can include an optional check valve when subplate mounted. It is part of component series X which specifies its modern design attributes and confirms its capability to withstand maximum operating pressures up to specified bar levels while maintaining maximum flow rates expressed in liters per minute (l/min).
$1,279.00 USD
More are expected on April 22, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 22, 2025 when ordered in
This product is eligible for factory repair.
Size 10, B → A, mechanically actuated
Industrial hydraulic valve in a high performance range. Reliable pressure reduction to setting value.
Unpacked Weight: 3.660 kg
For subplate mounting Porting pattern according to ISO 5781 For threaded connection As cartridge valve 4 optional adjustment types:• Rotary knob• Sleeve with hexagon and protective cap• Lockable rotary knob with scale• Rotary knob with scale 5 pressure ratings Check valve, optional (subplate mounting only)
Pressure valves type DR are pilot-operated pressure reducing valves controlled from the secondary circuit.
The pressure reducing valves basically consist of the main valve (1) with main spool insert (3) and pilot control valve (2) with pressure adjustment element.
Basic principle:
In rest position, the valves are open. Hydraulic fluid can flow via the main spool insert (3) from channel B to channel A without restrictions. The pressure applied in channel A acts on the bottom of the main spool. Simultaneously, pressure is applied via the nozzle (4) to the spring-loaded side of the main spool (3) and via channel (5) to ball (6) in the pilot control valve (2). Similarly, it acts via nozzle (7), control line (8), check valve (9) and nozzle (10) on the ball (6). Depending on the setting of the spring (11), pressure builds up upstream of the ball (6), in channel (5) and in the spring chamber (12) holding the control spool (13) in open position. The hydraulic fluid in channel B can flow via the main spool insert (3) to channel A without restrictions until a pressure builds up in channel A exceeding the value set at the spring (11) and opening the ball (6). The control spool (13) is moved into closing direction.
The desired reduced pressure is reached if there is a balance between the pressure in channel A and the pressure set at the spring (11).
The pilot oil return from the spring chamber (14) is always realized externally via the control line (15) into the tank.
For the free return flow from channel A to channel B, a check valve (16) can optionally be installed.
A pressure gauge connection (17) enables control of the reduced pressure in channel A.
Type DR..-4-5X/...Y...
(measured with HLP46, ϑOil = 40 ±5 °C)
Outlet pressure pA dependent on the flow qV (B to A)
Minimum set pressure pAmin dependent on the flow qV (B to A)
The characteristic curves apply to the pressure at the valve outlet pT = 0 bar across the entire flow range.
Δp-qV characteristic curve (B to A; minimum adjustable pressure differential)
Pilot flow dependent on flow (B to A) and pressure differential
Δp-qV characteristic curves via check valve (A to B)
Type DR…YM
Type DR…Y
Type DRC…; cartridge valve
Dimensions in mm
|
1 |
Name plate |
|
2.1 |
Y port for pilot oil return, external |
|
2.2 |
Port Y optionally for external pilot oil return |
|
3 |
Adjustment type "4" |
|
4 |
Adjustment type "5" |
|
5 |
Adjustment type "6" |
|
6 |
Adjustment type "7" |
|
7 |
Hexagon SW10 |
|
8 |
Space required to remove the key |
|
9 |
Valve mounting bores |
|
10 |
Seal rings |
|
11 |
Main spool insert |
|
12 |
Seal ring |
|
13 |
Seal ring |
|
14 |
Seal ring |
|
15 |
Support ring |
|
16 |
Support ring |
Valve mounting screws (separate order)
4 hexagon socket head cap screws, metric
ISO 4762 - M8 x 40 - 10.9-flZn-240h-L
at friction coefficient μtotal = 0.09 to 0.14,
Tightening torque MA = 31 Nm ± 10 %,
material no. R913000205
Type DR…; threaded connection
Dimensions in mm
|
1 |
Name plate |
|
2.1 |
Y port for pilot oil return, external |
|
3 |
Adjustment type "4" |
|
4 |
Adjustment type "5" |
|
5 |
Adjustment type "6" |
|
6 |
Adjustment type "7" |
|
7 |
Hexagon SW10 |
|
8 |
Space required to remove the key |
|
9 |
Valve mounting bores |
|
17 |
Pressure gauge connection |
|
NG |
D1 |
ØD2 |
T1 |
|
mm |
mm |
||
| 10 | G1/2 | 34 | 14 |
| 16 (Typ DR...15) | G3/4 | 42 | 16 |
| 25 (Typ DR..20) | G1 | 47 | 18 |
| 25 (Typ DR...25) | G1 1/4 | 58 | 20 |
| 32 (Typ DR...30) | G1 1/2 | 65 | 22 |
Type DR…; subplate mounting
Dimensions in mm
|
1 |
Name plate |
|
2.1 |
Y port for pilot oil return, external |
|
2.2 |
Port Y optionally for external pilot oil return |
|
3 |
Adjustment type "4" |
|
4 |
Adjustment type "5" |
|
5 |
Adjustment type "6" |
|
6 |
Adjustment type "7" |
|
7 |
Hexagon SW10 |
|
8 |
Space required to remove the key |
|
9 |
Valve mounting bores |
|
17 |
Pressure gauge connection |
|
18 |
Identical seal rings for ports A and B |
|
Identical seal rings for ports X and Y |
|
|
19 |
Port X without function (blind bore) |
|
20 |
Locking pin |
Subplate mounting:
Subplates (separate order)
Size 10G 460/01 (G3/8)
G 461/01 (G1/2)
Size 20G 412/01 (G3/4)
G 413/01 (G1)
Size 30G 414/01 (G1 1/4)
G 415/01 (G1 1/2)
|
1 |
Notice! Bore Ø32 can cut into Ø45 at any position. However, it must be observed that the connection bores and valve mounting bore are not damaged! |
|
2 |
Support ring and seal rings are to be inserted into this bore before assembly of the main spool! |
|
3 |
Nozzle, separate order |
Valve mounting screws (separate order)
Size 104 hexagon socket head cap screws, metric
ISO 4762 - M10 x 50 - 10.9-flZn-240h-L
at friction coefficient μtotal = 0.09 to 0.14,
Tightening torque MA = 60 Nm ± 10 %,
material no. R913000471
Size 204 x ISO 4762 - M10 x 60 - 10.9-flZn-240h-L
at friction coefficient μtotal = 0.09 to 0.14,
Tightening torque MA = 60 Nm ± 10 %,
material no. R913000116
Size 306 x ISO 4762 - M10 x 70 - 10.9-flZn-240h-L
at friction coefficient μtotal = 0.09 to 0.14,
Tightening torque MA = 60 Nm ± 10 %,
material no. R913000126
|
NG |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
L8 |
L9 |
L10 |
B1 |
B2 |
B3 |
B4 |
B5 |
H1 |
H2 |
H3 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 10 | 96 | 35.5 | 33 | 42.9 | 21.5 | - | 7.2 | 21.5 | 31.8 | 35.8 | 85 | 50 | 66.7 | 58.8 | 7.9 | 112 | 92 | 28 |
| 16 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 25 | 116 | 37.5 | 35.4 | 60.3 | 39.7 | - | 11.1 | 20.6 | 44.5 | 49.2 | 102 | 59.5 | 79.4 | 73 | 6.4 | 122 | 102 | 38 |
| 25 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 32 | 145 | 33 | 29.8 | 84.2 | 59.5 | 42.1 | 16.7 | 24.6 | 62.7 | 67.5 | 120 | 76 | 96.8 | 92.8 | 3.8 | 130 | 110 | 46 |
Valve mounting screws (separate order)
4 hexagon socket head cap screws, metric
ISO 4762 - M8 x 40 - 10.9-flZn-240h-L
at friction coefficient μtotal = 0.09 to 0.14,
Tightening torque MA = 31 Nm ± 10 %,
material no. R913000205
Installation bore
Dimensions in mm
Dimensions in mm
|
1 |
Notice! Bore Ø32 can cut into Ø45 at any position. However, it must be observed that the connection bores and valve mounting bore are not damaged! |
|
2 |
Support ring and seal rings are to be inserted into this bore before assembly of the main spool! |
|
3 |
Nozzle, separate order |
Valve mounting screws (separate order)
Size 104 hexagon socket head cap screws, metric
ISO 4762 - M10 x 50 - 10.9-flZn-240h-L
at friction coefficient μtotal = 0.09 to 0.14,
Tightening torque MA = 60 Nm ± 10 %,
material no. R913000471
Size 204 x ISO 4762 - M10 x 60 - 10.9-flZn-240h-L
at friction coefficient μtotal = 0.09 to 0.14,
Tightening torque MA = 60 Nm ± 10 %,
material no. R913000116
Size 306 x ISO 4762 - M10 x 70 - 10.9-flZn-240h-L
at friction coefficient μtotal = 0.09 to 0.14,
Tightening torque MA = 60 Nm ± 10 %,
material no. R913000126
