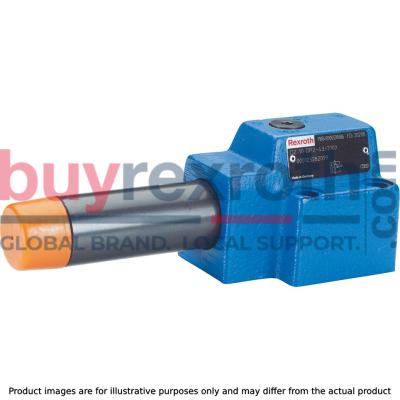

PRESSURE SEQUENCE VALVE DZ10DP2-4X/75M
Manufacturer: Bosch Rexroth
Material #: R900579596
Model : DZ10DP2-4X/75M
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth DZ10DP2-4X/75M (R900579596) is a high-performance industrial hydraulic valve designed for reliable pressure sequencing. This mechanically actuated spool valve is directly operated and features a spool symbol A B, ensuring efficient control of hydraulic systems. It is capable of handling a maximum pressure as indicated in its product specifications, with precise settings for operation.
The valve boasts multiple ports and mechanical actuation, with subplate mounting for secure installation. The connection diagram adheres to ISO standards, ensuring compatibility and ease of integration into various hydraulic systems. The DZ10DP2-4X/75M can accommodate a significant max flow rate and comes with NBR seals that are compatible with a range of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC.
The design includes an internal compression spring that maintains the control spool in its initial position until the pressure in channel A reaches the set value. At this point, the spool moves to allow fluid connection from A to B without pressure drop. The control signal can be received either internally from channel A or externally via port X.
Leakage oil discharge can be managed either externally through port Y or internally through B. An optional check valve allows free return flow from channel B to A. Additionally, a pressure gauge connection is available for monitoring sequencing pressure directly at the valve.
This valve comes in various adjustment types including rotary knob and threaded pin configurations—some options come equipped with protective caps or scales for precise adjustments. The maximum operating pressure and flow rate are determined by the specific component series and size of the valve.
$1,072.00 USD
More are expected on February 27, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as February 27, 2025 when ordered in
This product is eligible for factory repair.
Size 10, A → B, mechanically actuated
Industrial hydraulic valve in a high performance range. Reliable pressure sequencing to setting.
Unpacked Weight: 3.12 kg
For subplate mounting Porting pattern according to ISO 5781-06-07-0-00 4 pressure ratings 4 adjustment types :
• Rotary knob
• Threaded pin with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale With pressure gauge connection Check valve, optional
Valve type DZ 10 DP is a direct operated pressure sequence valve. It is applied for pressure-dependent connection of a second system. The sequencing pressure is set via the adjustment type (1).
The compression spring (2) holds the control spool (3) in initial position, the valve is blocked. The pressure in channel A is applied via the control line (4) at the spool face of the control spool (3) opposite the compression spring (2).
If the pressure in channel A reaches the set value of the compression spring (2), the control spool (3) is moved to the right and the connection from A to B is opened. The system connected to channel B is connected without a pressure drop in channel A.
The control signal is received internally via the control line (4) from channel A or externally via port X.
Depending on the use of the valve, leakage oil discharge is realized externally via port Y or internally via B.
Attention!
With internal leakage oil discharge, the set cracking pressure is increased by the pressure in channel B.
A check valve (5) can be optionally installed for free hydraulic fluid return flow from channel B to channel A.
A pressure gauge connection (6) enables control of the sequencing pressure at the valve.
Type DZ 10 DP1-4X/.XY..
(measured with HLP46, ϑOil = 40 ±5 °C)
p-qV characteristic curves
Δp-qV characteristic curves
The characteristic curves apply to the pressure at the valve outlet p = 0 bar across the entire flow range.
Version "no code"
Version “X"
Version “Y”
Version “XY"
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type "2" |
|
4 |
Adjustment type "3" |
|
5 |
Adjustment type "7" |
|
6 |
Space required to remove the key |
|
7 |
Valve mounting bores |
|
8 |
Lock nut SW24 |
|
9 |
Hexagon SW10 |
|
10 |
Identical seal rings for ports A and B Identical seal rings for ports X and Y |
|
11 |
Pressure gauge connection G1/4; 12 mm deep; internal hexagon SW6 Tightening torque MA = 20 Nm ± 10 % |
|
12 |
Locking pin |
|
13 |
Porting pattern according to ISO 5781-06-07-0-00 |
Subplates (separate order)
G 460/01 (G3/8)
G 461/01 (G1/2)
Valve mounting screws (separate order)
4 hexagon socket head cap screws
ISO 4762 - M10 x 60 - 10.9-flZn-240h-L
Friction coefficient µtotal = 0.09 to 0.14,
Tightening torque MA = 60 Nm ±10 %,
material no. R913000116
