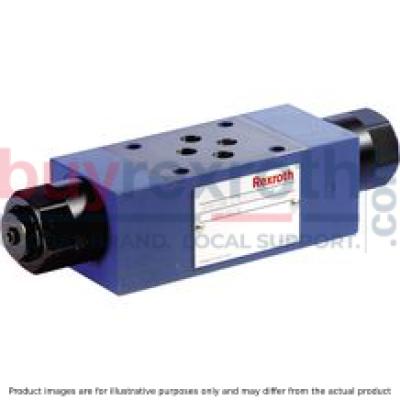

FLOW-CONTROL VALVE Z2FRM6AB2-2X/32QRV
Manufacturer: Bosch Rexroth
Material #: R900549689
Model : Z2FRM6AB2-2X/32QRV
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth Z2FRM6AB2-2X/32QRV (R900549689) is a high-performance industrial hydraulic sandwich plate valve designed for reliable oil flow control. This direct-actuated spool valve, featuring the spool symbol A A, is engineered to ensure pressure and temperature-independent flow stabilization within hydraulic systems. With a maximum pressure product group ID and equipped with mechanical actuation, the Z2FRM6AB2-2X/32QRV is capable of handling a variety of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR.
The valve's design includes a housing that contains one or two flow control cartridges. Flow from channel AB to AB is controlled via throttling at the specified point with an adjustable throttle cross-section. A pressure compensator connected downstream ensures constant flow regardless of pressure changes in channel AB by balancing forces through continuous compensation.
This model also allows free return flow from channel AB to AB through its check valve. The Z2FRM6AB2-2X/32QRV comes with options for either one or two flow control cartridges and features an adjustment type with an internal hexagon for precise settings. It conforms to both DIN form A and ISO porting patterns with locating holes for versatile mounting options.
With its size denoted as CETOP D and component series X, this Bosch Rexroth valve can withstand a maximum operating pressure of up to bar and facilitate a maximum flow of l/min. The Z2FRM6AB2-2X/32QRV's robust construction includes FKM seals ensuring durability and compatibility across various applications where consistent fluid management is critical. Its design emphasizes ease of integration into existing hydraulic systems while maintaining high efficiency and reliability in flow control operations.
$611.00 USD
More are expected on April 10, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 10, 2025 when ordered in
This product is eligible for factory repair.
Size 6, A2 → A1, mechanically actuated
Industrial hydraulic valve in a high performance range. Reliable oil flow control to setting value.
Unpacked Weight: 1.38 kg
Sandwich plate valve Porting pattern according to DIN 24340 form A Porting pattern according to ISO 4401-03-02-0-05 (with locating hole) With 1 or 2 flow control cartridges Adjustment type with internal hexagon
The valve type Z2FRM is a 2-way flow control valve in sandwich plate design. It is used for pressure and temperature-independent flow stabilization.
The valves basically consist of housing (1) and one or two flow control cartridges.
Throttling of the flow from channel A➁/B➁ to channel A➀/B➀ is realized at the throttling point (3). The throttle cross-section is set by rotation of the adjustment type (2) between the throttling point (3) and the throttle bolt (4).
For pressure-independent flow stabilization in channel A➀/B➀, a pressure compensator (5) is connected downstream to the throttling point (3).
The pressure compensator (5) is pressed by the compression spring (7) against the plug screw (8) and remains in open position if there is no flow through the valve. When there is a flow through the valve, the pressure in channel A➁/B➁ applies a force on the pressure compensator (5). It is set to control position until the forces are balanced. If the pressure in channel A➁/B➁ rises, the pressure compensator (5) moves in closing direction until the forces are balanced again. Due to this continuous compensation of the pressure compensator, a constant flow is obtained.
The free return flow from channel A➀/B➀ to channel A➁/B➁ is via the check valve (6).
Type Z2FRM 6 C…
|
➀ |
component side |
|
➁ |
plate side |
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves (via check valve; orifice closed)
Flow qV depending on inlet pressure pE
|
➀ |
component side |
|
➁ |
plate side |
Type Z2FRM 6 A…
Type Z2FRM 6 B…
Type Z2FRM 6 C…
Type Z2FRM 6 T…
Version "A" and "B"
Dimensions in mm
|
➀ |
Component side – porting pattern according to ISO 4401-03-02-0-05 (with locating hole Ø3 x 5 mm deep) |
|
➁ |
plate side – porting pattern according to DIN 24340 form A (without locating hole), or ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St; version "/60") |
|
1 |
Name plate |
|
2 |
Flow control cartridge at flow control in channel A, hexagon SW27; MA = 50 Nm |
|
3 |
Flow control cartridge at flow control in channel B, hexagon SW27; MA = 50 Nm |
|
4 |
Adjustment type with internal hexagon SW3 |
|
5 |
Identical seal rings for ports A➁, B➁, P➁, T➁ |
|
6 |
Valve mounting bores |
|
7 |
Modification from discharge to supply control is realized by rotation of the device around axis "X" – "X" |
|
8 |
Seal ring plate |
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M5 - 10.9
Notice!
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Version "C"
Dimensions in mm
|
➀ |
Component side – porting pattern according to ISO 4401-03-02-0-05 (with locating hole Ø3 x 5 mm deep) |
|
➁ |
plate side – porting pattern according to DIN 24340 form A (without locating hole), or ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St; version "/60") |
|
1 |
Name plate |
|
2 |
Flow control cartridge, hexagon SW27, MA = 50 Nm |
|
4 |
Adjustment type with internal hexagon SW3 |
|
5 |
Identical seal rings for ports A➁, B➁, P➁, T➁ |
|
6 |
Valve mounting bores |
|
7 |
Modification from discharge to supply control is realized by rotation of the device around axis "X" – "X" |
|
8 |
Seal ring plate |
Version "T"
Dimensions in mm
|
➀ |
Component side – porting pattern according to ISO 4401-03-02-0-05 (with locating hole Ø3 x 5 mm deep) |
|
➁ |
plate side – porting pattern according to DIN 24340 form A (without locating hole), or ISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St; version "/60") |
|
1 |
Name plate |
|
2 |
Flow control cartridge, hexagon SW27, MA = 50 Nm |
|
4 |
Adjustment type with internal hexagon SW3 |
|
5 |
Identical seal rings for ports A➁, B➁, P➁, T➁ |
|
6 |
Valve mounting bores |
|
7 |
Modification from discharge to supply control is realized by rotation of the device around axis "X" – "X" |
|
8 |
Seal ring plate |
