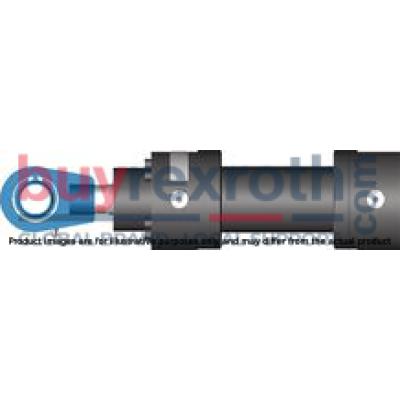

SWIVEL HEAD CGKD 12 K&
Manufacturer: Bosch Rexroth
Material #: R900540998
Model : SWIVEL HEAD CGKD 12 K&
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CGKD 12 KPL. (R900540998) is a high-quality swivel head component designed for precision and durability. This specific part is engineered to facilitate smooth and reliable swiveling actions in various applications. The model code CGKD 12 KPL. indicates the particular series and type of swivel head, ensuring that customers can identify the exact specifications for their needs.
As a critical component in mechanical systems, the Bosch Rexroth swivel head offers robust construction and is manufactured to meet stringent quality standards. It is designed to be easily integrated into a wide range of equipment, providing versatility in its use. The precise engineering of the swivel head allows for accurate positioning, which is essential in applications where movement and alignment are critical.
The capabilities of this swivel head make it suitable for use in areas such as automation, where controlled motion is key. Its design ensures that it can withstand the rigors of continuous operation while maintaining its performance over time. The Bosch Rexroth CGKD 12 KPL. (R900540998) represents a reliable solution for those seeking a component that delivers both functionality and longevity in their mechanical systems.
$94.45 USD
More are expected on February 5, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as February 5, 2025 when ordered in
For applications outside these parameters, please consult us!
Dimensions: Swivel head CGKD (clampable)
ISO 8132
1) | Lubricating nipple, cone head form A according to DIN 71412 |
2) | Related bolt Ø m6 |
Dimensions: Swivel head CGKD (clampable)
ØAL |
ØMM |
Type |
Suitable for series |
Nominal force |
AV |
N |
CH |
EF |
ØCN |
EN |
EU |
KK |
LF |
Clamping screw |
MA 3) |
m 4) |
C0 5) |
Fadm 6) |
|||
|
|
|
|
|
min. |
max. |
|
|
max. |
2) |
|
|
|
max. |
|
min. |
ISO 4762-10.9 |
|
|
|
|
mm |
kN |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
Nm |
kg |
kN |
kN |
||||||||
25 | 14 mm / - | CGKD 12 1) |
CDM1 CGM1 CSM1 - - - - |
8 | 17 | 19 | 38 |
js13 |
16.5 | 12 |
H7 |
12 |
h12 |
11 | M12 x 1.25 | 13 | M5 x 16 | 6 | 0.1 | 24.5 | 9 |
25 | 18 mm / - |
CDM1 CGM1 CSM1 - - - - |
8 | 17 | 19 | 38 |
js13 |
16.5 | 12 |
H7 |
12 |
h12 |
11 | M12 x 1.25 | 13 | M5 x 16 | 6 | 0.1 | 24.5 | 9 | |
25 | 18 mm / - | CGKD 16 |
CDM1 CGM1 CSM1 - - - - |
12.5 | 19 | 22 | 44 |
js13 |
20.5 | 16 |
H7 |
16 |
h12 |
14 | M14 x 1,5 | 16.5 | M6 x 14 | 10 | 0.2 | 36.5 | 13.5 |
32 | 18 mm / - |
CDM1 CGM1 CSM1 - - - - |
12.5 | 19 | 22 | 44 |
js13 |
20.5 | 16 |
H7 |
16 |
h12 |
14 | M14 x 1,5 | 16.5 | M6 x 14 | 10 | 0.2 | 36.5 | 13.5 | |
32 | 22 mm / - |
CDM1 CGM1 CSM1 - - - - |
12.5 | 19 | 22 | 44 |
js13 |
20.5 | 16 |
H7 |
16 |
h12 |
14 | M14 x 1,5 | 16.5 | M6 x 14 | 10 | 0.2 | 36.5 | 13.5 | |
32 | 22 mm / - | CGKD 20 |
CDM1 CGM1 CSM1 - - - - |
20 | 23 | 28 | 52 |
js13 |
25 | 20 |
H7 |
20 |
h12 |
17.5 | M16 x 1.5 | 20.5 | M8 x 20 | 25 | 0.35 | 48 | 17.7 |
40 | 22 mm / - |
CDM1 CGM1 CSM1 CDL2 - - - |
20 | 23 | 28 | 52 |
js13 |
25 | 20 |
H7 |
20 |
h12 |
17.5 | M16 x 1.5 | 20.5 | M8 x 20 | 25 | 0.35 | 48 | 17.7 | |
40 | 28 mm / - |
CDM1 CGM1 CSM1 - - - - |
20 | 23 | 28 | 52 |
js13 |
25 | 20 |
H7 |
20 |
h12 |
17.5 | M16 x 1.5 | 20.5 | M8 x 20 | 25 | 0.35 | 48 | 17.7 | |
40 | 25 mm / - | CGKD 25 |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2 |
32 | 29 | 31 | 65 |
js13 |
32 | 25 |
H7 |
25 |
h12 |
22 | M20 x 1.5 | 25.5 | M8 x 20 | 30 | 0.65 | 78 | 28.8 |
40 | 28 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
32 | 29 | 31 | 65 |
js13 |
32 | 25 |
H7 |
25 |
h12 |
22 | M20 x 1.5 | 25.5 | M8 x 20 | 30 | 0.65 | 78 | 28.8 | |
50 | 28 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2 |
32 | 29 | 31 | 65 |
js13 |
32 | 25 |
H7 |
25 |
h12 |
22 | M20 x 1.5 | 25.5 | M8 x 20 | 30 | 0.65 | 78 | 28.8 | |
50 | 36 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
32 | 29 | 31 | 65 |
js13 |
32 | 25 |
H7 |
25 |
h12 |
22 | M20 x 1.5 | 25.5 | M8 x 20 | 30 | 0.65 | 78 | 28.8 | |
50 | 32 mm / - | CGKD 32 |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2 |
50 | 37 | 38 | 80 |
js13 |
40 | 32 |
H7 |
32 |
h12 |
28 | M27 x 2 | 30 | M10 x 25 | 59 | 1.15 | 114 | 42.1 |
50 | 36 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
50 | 37 | 38 | 80 |
js13 |
40 | 32 |
H7 |
32 |
h12 |
28 | M27 x 2 | 30 | M10 x 25 | 59 | 1.15 | 114 | 42.1 | |
63 | 36 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2 |
50 | 37 | 38 | 80 |
js13 |
40 | 32 |
H7 |
32 |
h12 |
28 | M27 x 2 | 30 | M10 x 25 | 59 | 1.15 | 114 | 42.1 | |
63 | 45 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
50 | 37 | 38 | 80 |
js13 |
40 | 32 |
H7 |
32 |
h12 |
28 | M27 x 2 | 30 | M10 x 25 | 59 | 1.15 | 114 | 42.1 | |
63 | 40 mm / - | CGKD 40 |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2 |
80 | 46 | 47 | 97 |
js13 |
50 | 40 |
H7 |
40 |
h12 |
34 | M33 x 2 | 39 | M10 x 30 | 59 | 2.1 | 204 | 75.3 |
63 | 45 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
80 | 46 | 47 | 97 |
js13 |
50 | 40 |
H7 |
40 |
h12 |
34 | M33 x 2 | 39 | M10 x 30 | 59 | 2.1 | 204 | 75.3 | |
80 | 45 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2 |
80 | 46 | 47 | 97 |
js13 |
50 | 40 |
H7 |
40 |
h12 |
34 | M33 x 2 | 39 | M10 x 30 | 59 | 2.1 | 204 | 75.3 | |
80 | 56 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
80 | 46 | 47 | 97 |
js13 |
50 | 40 |
H7 |
40 |
h12 |
34 | M33 x 2 | 39 | M10 x 30 | 59 | 2.1 | 204 | 75.3 | |
80 | 50 mm / - | CGKD 50 |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2 |
125 | 57 | 58 | 120 |
js13 |
63 | 50 |
H7 |
50 |
h12 |
42 | M42 x 2 | 47 | M12 x 35 | 100 | 4 | 310 | 114.4 |
80 | 56 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
125 | 57 | 58 | 120 |
js13 |
63 | 50 |
H7 |
50 |
h12 |
42 | M42 x 2 | 47 | M12 x 35 | 100 | 4 | 310 | 114.4 | |
100 | 56 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2 |
125 | 57 | 58 | 120 |
js13 |
63 | 50 |
H7 |
50 |
h12 |
42 | M42 x 2 | 47 | M12 x 35 | 100 | 4 | 310 | 114.4 | |
100 | 70 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
125 | 57 | 58 | 120 |
js13 |
63 | 50 |
H7 |
50 |
h12 |
42 | M42 x 2 | 47 | M12 x 35 | 100 | 4 | 310 | 114.4 | |
100 | 36 mm / - | CGKD 63 |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2 |
200 | 64 | 70 | 140 |
js13 |
72.5 | 63 |
H7 |
63 |
h12 |
53.5 | M48 x 2 | 58 | M16 x 40 | 250 | 7.2 | 430 | 158.7 |
100 | 70 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
200 | 64 | 70 | 140 |
js13 |
72.5 | 63 |
H7 |
63 |
h12 |
53.5 | M48 x 2 | 58 | M16 x 40 | 250 | 7.2 | 430 | 158.7 | |
125 | 70 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2 |
200 | 64 | 70 | 140 |
js13 |
72.5 | 63 |
H7 |
63 |
h12 |
53.5 | M48 x 2 | 58 | M16 x 40 | 250 | 7.2 | 430 | 158.7 | |
125 | 90 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
200 | 64 | 70 | 140 |
js13 |
72.5 | 63 |
H7 |
63 |
h12 |
53.5 | M48 x 2 | 58 | M16 x 40 | 250 | 7.2 | 430 | 158.7 | |
125 | 80 mm / - | CGKD 80 |
CDH2 CGH2 CSH2 CDL2 - - - |
320 | 86 | 91 | 180 |
js13 |
92 | 80 |
H7 |
80 |
h12 |
68 | M64 x 3 | 74 | M20 x 50 | 490 | 15 | 695 | 265.5 |
125 | 90 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
320 | 86 | 91 | 180 |
js13 |
92 | 80 |
H7 |
80 |
h12 |
68 | M64 x 3 | 74 | M20 x 50 | 490 | 15 | 695 | 265.5 | |
160 | 90 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
320 | 86 | 91 | 180 |
js13 |
92 | 80 |
H7 |
80 |
h12 |
68 | M64 x 3 | 74 | M20 x 50 | 490 | 15 | 695 | 265.5 | |
160 | 110 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
320 | 86 | 91 | 180 |
js13 |
92 | 80 |
H7 |
80 |
h12 |
68 | M64 x 3 | 74 | M20 x 50 | 490 | 15 | 695 | 265.5 | |
140 | 90 mm / - | CGKD 90 |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
400 | 91 | 100 | 195 |
js13 |
101 | 90 |
H7 |
90 |
h12 |
72 | M72 x 3 | 85 | M20 x 60 | 490 | 19 | 750 | 276.8 |
140 | 100 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
400 | 91 | 100 | 195 |
js13 |
101 | 90 |
H7 |
90 |
h12 |
72 | M72 x 3 | 85 | M20 x 60 | 490 | 19 | 750 | 276.8 | |
160 | 100 mm / - | CGKD 100 |
CDH2 CGH2 CSH2 CDL2 - - - |
500 | 96 | 110 | 210 |
js13 |
114 | 100 |
H7 |
100 |
h12 |
85.5 | M80 x 3 | 94 | M24 x 60 | 840 | 25.5 | 1060 | 391.1 |
160 | 110 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
500 | 96 | 110 | 210 |
js13 |
114 | 100 |
H7 |
100 |
h12 |
85.5 | M80 x 3 | 94 | M24 x 60 | 840 | 25.5 | 1060 | 391.1 | |
200 | 110 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
500 | 96 | 110 | 210 |
js13 |
114 | 100 |
H7 |
100 |
h12 |
85.5 | M80 x 3 | 94 | M24 x 60 | 840 | 25.5 | 1060 | 391.1 | |
200 | 140 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
500 | 96 | 110 | 210 |
js13 |
114 | 100 |
H7 |
100 |
h12 |
85.5 | M80 x 3 | 94 | M24 x 60 | 840 | 25.5 | 1060 | 391.1 | |
180 | 110 mm / - | CGKD 110 |
CDH2 CGH2 CSH2 - - - - |
635 | 106 | 125 | 235 |
js13 |
129 | 110 |
H7 |
110 |
h12 |
88 | M90 x 3 | 105 | M24 x 60 | 840 | 36.5 | 1200 | 442.8 |
180 | 125 mm / - |
CDH2 CGH2 CSH2 - - - - |
635 | 106 | 125 | 235 |
js13 |
129 | 110 |
H7 |
110 |
h12 |
88 | M90 x 3 | 105 | M24 x 60 | 840 | 36.5 | 1200 | 442.8 | |
200 | 125 mm / - | CGKD 125 |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2 |
800 | 113 | 135 | 260 |
js13 |
160 | 125 |
H7 |
125 |
h12 |
105 | M100 x 3 | 116 | M24 x 70 | 840 | 52.5 | 1430 | 442.8 |
200 | 140 mm / - |
CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 - |
800 | 113 | 135 | 260 |
js13 |
160 | 125 |
H7 |
125 |
h12 |
105 | M100 x 3 | 116 | M24 x 70 | 840 | 52.5 | 1430 | 527.7 | |
220 | 140 mm / - | CGKD 160 |
CDH2 CGH2 CSH2 - - - - |
1520 | 126 | 165 | 310 |
js13 |
200 | 160 |
H7 |
160 |
h12 |
133 | M125 x 4 | 145 | M24 x 80 | 840 | 82.5 | 2200 | 527.7 |
220 | 160 mm / - |
CDH2 CGH2 CSH2 - - - - |
1520 | 126 | 165 | 310 |
js13 |
200 | 160 |
H7 |
160 |
h12 |
133 | M125 x 4 | 145 | M24 x 80 | 840 | 82.5 | 2200 | 811.8 | |
250 | 160 mm / - |
CDH2 CGH2 CSH2 - - - - |
1520 | 126 | 165 | 310 |
js13 |
200 | 160 |
H7 |
160 |
h12 |
133 | M125 x 4 | 145 | M24 x 80 | 840 | 82.5 | 2200 | 811.8 | |
250 | 180 mm / - |
CDH2 CGH2 CSH2 - - - - |
1520 | 126 | 165 | 310 |
js13 |
200 | 160 |
H7 |
160 |
h12 |
133 | M125 x 4 | 145 | M24 x 80 | 840 | 82.5 | 2200 | 811.8 | |
280 | 180 mm / - | CGKD 200 |
CDH2 CGH2 CSH2 - - - - |
2000 | 161 | 215 | 390 |
js13 |
250 | 200 |
H7 |
200 |
h12 |
165 | M160 x 4 | 190 | M30 x 100 | 1700 | 168 | 3650 | 1346.9 |
280 | 200 mm / - |
CDH2 CGH2 CSH2 - - - - |
2000 | 161 | 215 | 390 |
js13 |
250 | 200 |
H7 |
200 |
h12 |
165 | M160 x 4 | 190 | M30 x 100 | 1700 | 168 | 3650 | 1346.9 | |
320 | 200 mm / - |
CDH2 CGH2 CSH2 - - - - |
2000 | 161 | 215 | 390 |
js13 |
250 | 200 |
H7 |
200 |
h12 |
165 | M160 x 4 | 190 | M30 x 100 | 1700 | 168 | 3650 | 1346.9 | |
320 | 220 mm / - |
CDH2 CGH2 CSH2 - - - - |
2000 | 161 | 215 | 390 |
js13 |
250 | 200 |
H7 |
200 |
h12 |
165 | M160 x 4 | 190 | M30 x 100 | 1700 | 168 | 3650 | 1346.9 |
1) | Bearing cannot be re-lubricated |
2) | Related bolt Ø m6 |
3) | MA = tightening torqueThe swivel head must always be screwed against the shoulder of the piston rod. Afterwards, the clamping screws must be tightened with the specified tightening torque. |
4) | m = weight of swivel head |
5) | C0 = static load rating of the swivel head |
6) | Fadm = max. admissible load of the swivel head for increasing or alternating loads |
ØAL |
= |
Piston Ø |
ØMM |
= |
Piston rod Ø |
Notice:
Geometry and dimensions may differ depending on the manufacturer. In case of combination with other mounting elements, the usability must be checked.
Related Products
R900860292
$1,185.02 USD
R900314154
$1,544.77 USD
R900322028
$469.84 USD
R961008018
$628.42 USD
R961008008
$347.45 USD
