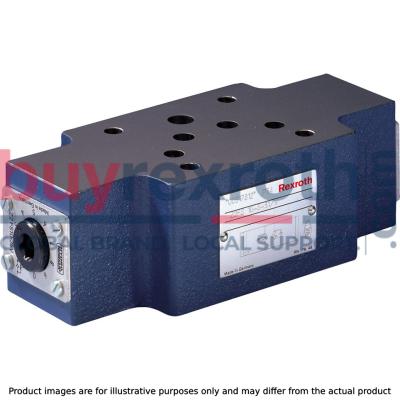

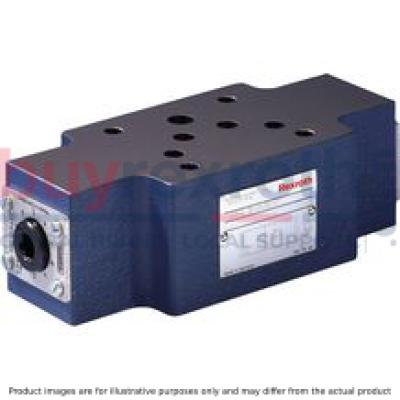

THROTTLE CHECK VALVE Z2FS10B5-3X/S2V
Manufacturer: Bosch Rexroth
Material #: R900517814
Model : Z2FS10B5-3X/S2V
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth Z2FS10B5-3X/S2V (R900517814) is a high-performance industrial hydraulic valve designed for reliable flow throttling to a set value. This valve features a spool symbol of B B or B B and is directly actuated with mechanical actuation. It is capable of handling a maximum pressure as defined by its product group specifications and offers multiple ports for connectivity.
The Z2FS10B5-3X/S2V valve is equipped with an internal hexagon spindle and scale for precise adjustments, offering users fine control over the flow rate. Its design allows it to be used in various applications where either main or pilot flow limitation is required for one or two actuator ports. The valve operates by mechanically limiting the flow in one direction while allowing free return flow in the opposite direction, which can be essential for controlling the speed of hydraulic actuators.
With its sandwich plate design, this valve adheres to NFPA T.. R D SizeCETOP D and ISO connection diagram standards, ensuring compatibility with various hydraulic systems. The number of switching positions, weight, and seals made from FKM are tailored to work efficiently with a range of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR.
The Bosch Rexroth Z2FS10B5-3X/S2V offers different adjustment types such as a lockable rotary knob with scale and a corrosion-protected design that ensures longevity even in harsh environments. It's suitable for both meter-in or meter-out throttling applications. The maximum operating pressure and maximum flow rate are dictated by its component series X specifications. This makes it an adaptable solution for various industrial applications requiring precise fluid control within their hydraulic systems.
$504.00 USD
More are expected on February 27, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as February 27, 2025 when ordered in
This product is eligible for factory repair.
Size 10; B1 → B2 or B2 → B1; mechanically actuated
Industrial hydraulic valve in a high performance range. Reliable throttling of the flow to setting value.
Unpacked Weight: 3 kg
Sandwich plate valve Porting pattern according to ISO 4401-05-04-0-05 For the main or pilot flow limitation of 2 actuator ports. 3 adjustment types:• Lockable rotary knob with scale• Spindle with internal hexagon and scale• Rotary knob with scale Meter-in or meter-out throttling Corrosion-protected design
The valve type Z2FS 10 is a throttle check valve in sandwich plate design. It is used for the main or pilot flow limitation of one or two actuator ports.
Two throttle check valves aligned symmetrically to each other limit flows in one direction and allow free return flow in the opposite direction.
In case of supply throttling, the hydraulic fluid is directed through channel A1 via throttling point (1) formed by the control edge (2) and the throttle spool (3.1) to actuator A2. The throttle spool (3.1) can be axially adjusted via the spindle (4) for adjustment of the throttling point (1).
Simultaneously, the hydraulic fluid in channel A1 is directed via the bore (5) to the piston side (6). The active pressure and the spring force retain the throttle spool (3.1) in throttle position.
The hydraulic fluid return flow from actuator B2 displaces the throttle spool (3.2) against the spring (7) and enables the unobstructed flow as check valve. Depending on the installation position, the throttling effect may occur in supply or discharge.
Main flow limitation
For actuator velocity adjustment (main flow limitation), the throttle check valve is installed between the directional valve and the subplate.
Pilot flow limitation
With pilot-operated directional valves, the throttle check valve can be applied for switching time adjustment (pilot flow limitation). In this case, it is installed between the pilot control valve and the main valve.
Supply throttling
(measured with HLP46, ϑoil = 40 ±5 °C)
Δp-qV characteristic curves (via check valve)
Δp-qV characteristic curves (constant throttle position)
Supply throttling "S"
Version „‒…SO30“
Discharge throttling "S2"
Version „‒…SO30“
Supply throttling "S"
Version „A…SO30“
Discharge throttling "S2"
Version „A…SO30“
Supply throttling "S"
Version „B…SO30“
Discharge throttling "S2"
Version „B…SO30“
➀ = component side
➁ = plate side
Notices:
Deviating from ISO 4401, port T is called TA and port T1 is called TB in this data sheet. Version "SO30" is shown. The standard version does not have ports X and Y.Dimensions: Version "–"
(dimensions in mm)
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type “5” – spindle for changing the flow cross-section (internal hexagon SW8) Left rotation = higher flow Right rotation = lower flow |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
4 through holes for valve mounting |
|
6 |
Identical seal rings for ports A, B, P, TA, TB |
|
7 |
R-ring plate |
|
8 |
Modification from supply to discharge throttling is realized by rotation of the device around axis "X" – "X" (version "–" only) |
|
9 |
Space required to remove the key |
|
10 |
Porting pattern according to ISO 4401-05-04-0-05 |
|
11 |
Version "J" |
Dimensions: Version "A"
(dimensions in mm)
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type “5” – spindle for changing the flow cross-section (internal hexagon SW8) Left rotation = higher flow Right rotation = lower flow |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
4 through holes for valve mounting |
|
6 |
Identical seal rings for ports A, B, P, TA, TB |
|
7 |
R-ring plate |
|
9 |
Space required to remove the key |
|
10 |
Porting pattern according to ISO 4401-05-04-0-05 |
|
11 |
Version "J" |
Dimensions: Version "B"
(dimensions in mm)
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type “5” – spindle for changing the flow cross-section (internal hexagon SW8) Left rotation = higher flow Right rotation = lower flow |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
4 through holes for valve mounting |
|
6 |
Identical seal rings for ports A, B, P, TA, TB |
|
7 |
R-ring plate |
|
9 |
Space required to remove the key |
|
10 |
Porting pattern according to ISO 4401-05-04-0-05 |
|
11 |
Version "J" |
Notices:
Deviating from ISO 4401, port T is called TA and port T1 is called TB in this data sheet. The dimensions are nominal dimensions which are subject to tolerances. Version "SO30" is shown. The standard version does not have ports X and Y.
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9
4 hexagon socket head cap screws 1/4-2 UNC
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Dimensions in mm
Dimensions in mm
