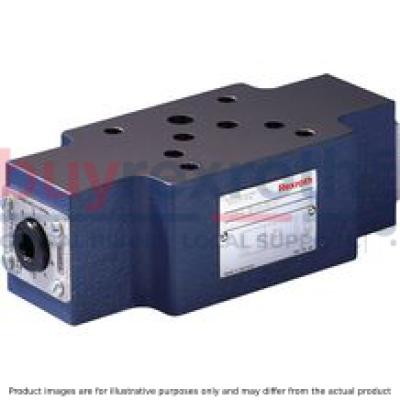

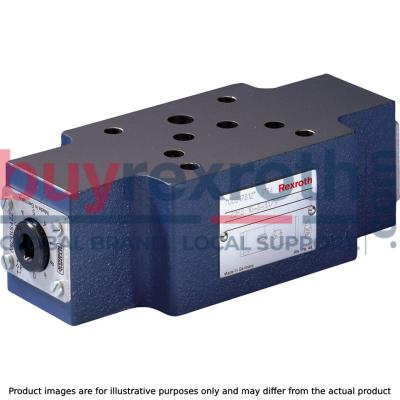

THROTTLE CHECK VALVE Z2FS10A5-3X/SV
Manufacturer: Bosch Rexroth
Material #: R900517813
Model : Z2FS10A5-3X/SV
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth Z2FS10A5-3X/SV (R900517813) is a mechanically actuated industrial hydraulic valve designed for high-performance applications. This throttle check valve comes in a sandwich plate design and is primarily utilized for the precise throttling of flow to a set value. It features a spindle with an internal hexagon and scale, allowing for accurate adjustments to be made. The model is equipped with two throttle check valves that are symmetrically aligned, providing flow limitation in one direction while enabling free return flow in the opposite direction.
The Z2FS10A5-3X/SV valve can be applied for both main or pilot flow limitations, making it versatile in its use cases. For velocity adjustment of an actuator's main flow limitation, it can be installed between the directional valve and the subplate. In cases where pilot-operated directional valves are used, it can adjust switching times by being placed between the pilot control valve and the main valve.
This Bosch Rexroth valve offers various adjustment types including a lockable rotary knob with scale, a spindle with internal hexagon and scale, and a rotary knob with scale. Users can select between meter-in or meter-out throttling according to their system requirements. The corrosion-protected design ensures longevity even in harsh environments.
With a size designation of A, this component belongs to series X and can withstand maximum operating pressures up to bar while handling maximum flows of l/min. The Z2FS10A5-3X/SV is designed for sandwich plate mounting with porting patterns that comply with ISO standards. Its capability to handle different types of hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, HFDR along with FKM seals extends its adaptability across various hydraulic systems.
$504.00 USD
More are expected on February 27, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as February 27, 2025 when ordered in
This product is eligible for factory repair.
Size 10; A1 → A2 or A2 → A1; mechanically actuated
Industrial hydraulic valve in a high performance range. Reliable throttling of the flow to setting value.
Unpacked Weight: 2.98 kg
Sandwich plate valve Porting pattern according to ISO 4401-05-04-0-05 For the main or pilot flow limitation of 2 actuator ports. 3 adjustment types:• Lockable rotary knob with scale• Spindle with internal hexagon and scale• Rotary knob with scale Meter-in or meter-out throttling Corrosion-protected design
The valve type Z2FS 10 is a throttle check valve in sandwich plate design. It is used for the main or pilot flow limitation of one or two actuator ports.
Two throttle check valves aligned symmetrically to each other limit flows in one direction and allow free return flow in the opposite direction.
In case of supply throttling, the hydraulic fluid is directed through channel A1 via throttling point (1) formed by the control edge (2) and the throttle spool (3.1) to actuator A2. The throttle spool (3.1) can be axially adjusted via the spindle (4) for adjustment of the throttling point (1).
Simultaneously, the hydraulic fluid in channel A1 is directed via the bore (5) to the piston side (6). The active pressure and the spring force retain the throttle spool (3.1) in throttle position.
The hydraulic fluid return flow from actuator B2 displaces the throttle spool (3.2) against the spring (7) and enables the unobstructed flow as check valve. Depending on the installation position, the throttling effect may occur in supply or discharge.
Main flow limitation
For actuator velocity adjustment (main flow limitation), the throttle check valve is installed between the directional valve and the subplate.
Pilot flow limitation
With pilot-operated directional valves, the throttle check valve can be applied for switching time adjustment (pilot flow limitation). In this case, it is installed between the pilot control valve and the main valve.
Supply throttling
(measured with HLP46, ϑoil = 40 ±5 °C)
Δp-qV characteristic curves (via check valve)
Δp-qV characteristic curves (constant throttle position)
Supply throttling "S"
Version „‒…SO30“
Discharge throttling "S2"
Version „‒…SO30“
Supply throttling "S"
Version „A…SO30“
Discharge throttling "S2"
Version „A…SO30“
Supply throttling "S"
Version „B…SO30“
Discharge throttling "S2"
Version „B…SO30“
➀ = component side
➁ = plate side
Notices:
Deviating from ISO 4401, port T is called TA and port T1 is called TB in this data sheet. Version "SO30" is shown. The standard version does not have ports X and Y.Dimensions: Version "–"
(dimensions in mm)
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type “5” – spindle for changing the flow cross-section (internal hexagon SW8) Left rotation = higher flow Right rotation = lower flow |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
4 through holes for valve mounting |
|
6 |
Identical seal rings for ports A, B, P, TA, TB |
|
7 |
R-ring plate |
|
8 |
Modification from supply to discharge throttling is realized by rotation of the device around axis "X" – "X" (version "–" only) |
|
9 |
Space required to remove the key |
|
10 |
Porting pattern according to ISO 4401-05-04-0-05 |
|
11 |
Version "J" |
Dimensions: Version "A"
(dimensions in mm)
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type “5” – spindle for changing the flow cross-section (internal hexagon SW8) Left rotation = higher flow Right rotation = lower flow |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
4 through holes for valve mounting |
|
6 |
Identical seal rings for ports A, B, P, TA, TB |
|
7 |
R-ring plate |
|
9 |
Space required to remove the key |
|
10 |
Porting pattern according to ISO 4401-05-04-0-05 |
|
11 |
Version "J" |
Dimensions: Version "B"
(dimensions in mm)
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type “5” – spindle for changing the flow cross-section (internal hexagon SW8) Left rotation = higher flow Right rotation = lower flow |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
4 through holes for valve mounting |
|
6 |
Identical seal rings for ports A, B, P, TA, TB |
|
7 |
R-ring plate |
|
9 |
Space required to remove the key |
|
10 |
Porting pattern according to ISO 4401-05-04-0-05 |
|
11 |
Version "J" |
Notices:
Deviating from ISO 4401, port T is called TA and port T1 is called TB in this data sheet. The dimensions are nominal dimensions which are subject to tolerances. Version "SO30" is shown. The standard version does not have ports X and Y.
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9
4 hexagon socket head cap screws 1/4-2 UNC
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Dimensions in mm
Dimensions in mm
