DZ10DP2-4X/150

Manufacturer: Bosch Rexroth

Material #: R900501181

Model : DZ10DP2-4X/150

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

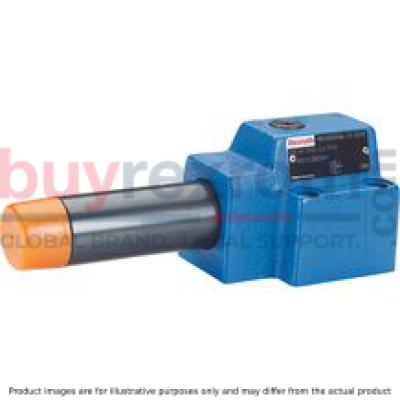

The Bosch Rexroth DZ10DP2-4X/150 (R900501181) is a high-performance direct operated pressure sequence valve designed for precise pressure-dependent connection of a second hydraulic system. This model employs a compression spring to hold the control spool in its initial position, ensuring that the valve remains blocked until the set sequencing pressure is achieved. When the pressure in channel A meets the preset value of the compression spring, the control spool shifts, allowing fluid flow from A to B without causing a drop in channel A's pressure. The DZ10DP2-4X/150 can receive its control signal either internally from channel A or externally via port X, depending on application requirements. It also features options for leakage oil discharge; it can be carried out internally through port B or externally via port Y. Users should note that with internal leakage oil discharge, the cracking pressure setting will be affected by the pressure present in channel B. For applications requiring a free return flow of hydraulic fluid from channel B to channel A, an optional check valve can be installed. Additionally, this model offers a pressure gauge connection for monitoring sequencing pressure directly at the valve. This Bosch Rexroth valve is designed for subplate mounting and adheres to ISO standards for porting patterns. It comes with various adjustment types including a rotary knob, threaded pin with hexagon and protective cap, lockable rotary knob with scale, and rotary knob with scale. The maximum operating pressure for this component series X valve is 315 bar and it supports a maximum flow of 150 l/min. The DZ10DP2-4X/150 is engineered to deliver reliable performance and precise control in various hydraulic applications.

$1,072.00 USD

More are expected on March 31, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as March 31, 2025 when ordered in

This product is eligible for factory repair.

Start Repair

For subplate mounting Porting pattern according to ISO 5781-06-07-0-00 4 pressure ratings 4 adjustment types :
• Rotary knob
• Threaded pin with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale With pressure gauge connection Check valve, optional

Valve type DZ 10 DP is a direct operated pressure sequence valve. It is applied for pressure-dependent connection of a second system. The sequencing pressure is set via the adjustment type (1).

The compression spring (2) holds the control spool (3) in initial position, the valve is blocked. The pressure in channel A is applied via the control line (4) at the spool face of the control spool (3) opposite the compression spring (2).

If the pressure in channel A reaches the set value of the compression spring (2), the control spool (3) is moved to the right and the connection from A to B is opened. The system connected to channel B is connected without a pressure drop in channel A.

The control signal is received internally via the control line (4) from channel A or externally via port X.

Depending on the use of the valve, leakage oil discharge is realized externally via port Y or internally via B.

Attention!

With internal leakage oil discharge, the set cracking pressure is increased by the pressure in channel B.

A check valve (5) can be optionally installed for free hydraulic fluid return flow from channel B to channel A.

A pressure gauge connection (6) enables control of the sequencing pressure at the valve.

Type DZ 10 DP1-4X/.XY..

01	02		03		04	05	06	07	08
DZ 10 DP		–	4X	/					*

01	Pressure sequence valve, direct operated Size 10	DZ 10 DP
Adjustment type
02	Rotary knob	1
	Grub screw with hexagon and protective cap	2
	Lockable rotary knob with scale	3 1)
	Rotary knob with scale	7
03	Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions)	4X
Maximum sequencing pressure
04	25 bar	25
	75 bar	75
	150 bar	150
	210 bar	210
05	Internal pilot oil supply, internal leakage oil discharge	no code
	External pilot oil supply, internal leakage oil discharge	X
	Internal pilot oil supply, external leakage oil discharge	Y
	External pilot oil supply, external leakage oil discharge	XY
06	With check valve	no code
06	Without check valve	M
Seal material
07	NBR seals	no code
	FKM seals (other seals upon request)	V
	Observe compatibility of seals with hydraulic fluid used.
08	Further details in the plain text	*

	1) H-key with material no. R900008158 is included in the scope of delivery.

Preferred types and standard units are specified in the EPS (standard price list).

general

Size			10
Weight (approx.)		kg	3
Installation position			any
Ambient temperature range	NBR seals	°C	-30 … +80
Ambient temperature range	FKM seals	°C	-20 … +80

hydraulic

Size			10
Maximum operating pressure	Anschluss A	bar	210
	Port X	bar	210
	Port Y	bar	160
Maximum sequencing pressure	adjustable	bar	25 75 150 210
Maximum flow		l/min	80
Hydraulic fluid			see table
Hydraulic fluid temperature range	NBR seals	°C	-30 … +80
Hydraulic fluid temperature range	FKM seals	°C	-20 … +80
Viscosity range		mm²/s	10 … 800
Maximum admissible degree of contamination of the hydraulic fluid 1)			Class 20/18/15 according to ISO 4406 (c)

1)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards
Mineral oils and related hydrocarbons		HL, HLP, HLPD	NBR, FKM	DIN 51524
Environmentally compatible	Insoluble in water	HETG	NBR, FKM	ISO 15380
	Insoluble in water	HEES	FKM	ISO 15380
	Soluble in water	HEPG	FKM	ISO 15380
Containing water	Water-free	HFDU, HFDR	FKM	ISO 12922
Containing water	Containing water	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620)	NBR	ISO 12922
Important information on hydraulic fluids! For further information and data on the use of other hydraulic fluids, please refer to data sheet 90220 or contact us! There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)! Flame-resistant – containing water: Maximum operating pressure 210 bar Maximum hydraulic fluid temperature 60 °C Expected life cycle as compared to HLP hydraulic oil 30 % to 100 %

For applications outside these parameters, please consult us!

(measured with HLP46, ϑOil = 40 ±5 °C)

p-qV characteristic curves

Δp-qV characteristic curves

The characteristic curves apply to the pressure at the valve outlet p = 0 bar across the entire flow range.

Version "no code"

Version “X"

Version “Y”

Version “XY"

Dimensions in mm

1	Name plate
2	Adjustment type "1"
3	Adjustment type "2"
4	Adjustment type "3"
5	Adjustment type "7"
6	Space required to remove the key
7	Valve mounting bores
8	Lock nut SW24
9	Hexagon SW10
10	Identical seal rings for ports A and B Identical seal rings for ports X and Y
11	Pressure gauge connection G1/4; 12 mm deep; internal hexagon SW6 Tightening torque MA = 20 Nm ± 10 %
12	Locking pin
13	Porting pattern according to ISO 5781-06-07-0-00

Subplates (separate order)

G 460/01 (G3/8)

G 461/01 (G1/2)

Valve mounting screws (separate order)

4 hexagon socket head cap screws

ISO 4762 - M10 x 60 - 10.9-flZn-240h-L

Friction coefficient µtotal = 0.09 to 0.14,

Tightening torque MA = 60 Nm ±10 %,

material no. R913000116
