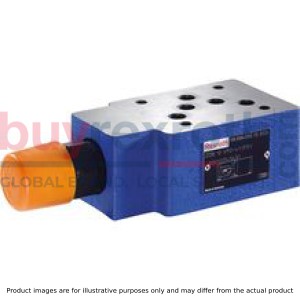

PRESSURE RELIEF VALVE -Z Z2DB10VC2-4X/200V
Manufacturer: Bosch Rexroth
Material #: R900496390
Model : Z2DB10VC2-4X/200V
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth Z2DB10VC2-4X/200V (R900496390) is a high-performance industrial hydraulic valve designed for reliable pressure relief at a set value. This mechanically actuated valve features a spool symbol A T, B T, indicating its porting configuration, and is capable of handling a maximum pressure as specified in its product group ID. The Z2DB10VC2-4X/200V is equipped with multiple ports and utilizes mechanical actuation.
The valve's size and max flow rate are tailored to meet the demands of various hydraulic applications. It offers an interim assembly connection diagram compliant with NFPA T.. R D SizeCETOP D standards as well as an ISO connection diagram, ensuring compatibility with a wide range of systems. The number of switching positions and the weight of the valve are optimized for its function.
Seals made from FKM material within the Z2DB10VC2-4X/200V ensure durability and compatibility with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR. The valve operates by utilizing its internal housing and one or two pressure valve cartridges to limit system pressure effectively. Pressure adjustments can be made through several options such as a rotary knob or sleeve with hexagon and protective cap.
This Bosch Rexroth sandwich plate valve not only boasts a corrosion-protected design but also offers flexibility in control with different adjustment types for precise pressure settings. The component series X denotes its generation or version which aligns with maximum operating pressures and flow rates specified by the manufacturer.
In summary, the Bosch Rexroth Z2DB10VC2-4X/200V is engineered for optimal performance in controlling system pressure within hydraulic circuits while offering ease of integration and adjustment to suit various industrial requirements.
$813.00 USD
More are expected on July 31, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as July 31, 2024 when ordered in
This product is eligible for factory repair.
Size 10, symbol A - TA and B - TB, with manual actuation
Industrial hydraulic valve in a high performance range. Reliable pressure limitation to setting value
Unpacked Weight: 2.880 kg
Sandwich plate valve Porting pattern according to ISO 4401-05-04-0-05 4 pressure ratings 6 circuit options With 1 or 2 pressure valve cartridges 4 adjustment types for pressure adjustment, optionally
• Rotary knob
• Sleeve with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale Corrosion-protected design
Pressure valves of type ZDB and Z2DB are pilot-operated pressure relief valves in sandwich plate design. They are used for limiting a system pressure. The valves basically consist of the housing (7) and one or two pressure valve cartridges. The system pressure can be set via the adjustment type (4).
In the initial position the valves are closed. The pressure in channel A acts on the spool (1). At the same time, pressure is applied to the spring-loaded side of the spool (1) via nozzle (2) and to the pilot poppet (6) via nozzle (3).
If the pressure in channel A exceeds the value set at the spring (5), the pilot poppet (6) opens. Hydraulic fluid flows from the spring-loaded side of the spool (1), nozzle (3) and channel (8) into channel T (TA). The resulting pressure drop moves the spool (1) and opens the connection from A to T (TA). In channel A, the pressure set at the spring (5) settles.
Type ZDB 10 VA2-4X/…V
➀ = component side
➁ = plate side
(measured with HLP46, ϑOil = 40 ±5 °C)
pE-qV characteristic curves
pE-qV characteristic curves
pE min-qV characteristic curves
pE min-qV characteristic curves
Notice:
The characteristic curves apply to the pressure at the valve output p = 0 bar across the entire flow range.
Type ZDB 10 VA…
Type ZDB 10 VB…
Type ZDB 10 VP…
Type ZDB 10 VT…
Type Z2DB 10 VC…
Type Z2DB 10 VD…
➀ = component side
➁ = plate side
Notice:
Deviating from ISO 4401, port T is referred to with TA and port T1 is referred to with TB in this data sheet.
Version "VA", "VP" and "VT"
(dimensions im mm)
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type "2" (with version "J3" and "J5" without protective cap) |
|
4 |
Adjustment type "3" |
|
5 |
Adjustment type "7" |
|
6 |
Dimensions required to remove the key |
|
7 |
Valve mounting bores |
|
8 |
Lock nut SW24 |
|
9 |
Hexagon SW10 |
|
10 |
Identical seal rings for ports A, B, P, TA, TB (plate side) |
|
11 |
Sealing plate 80 x 70 x 1.5 mm (only with version “VA” and “VP”) |
|
12 |
Countersinks (only with version “VT”) |
|
13 |
Versions “VA” and “VP” |
|
14 |
Version “VT” |
|
15 |
Hexagon SW30, tightening torque MA = 50 Nm |
|
➀ |
component side – Porting pattern according to ISO 4401-05-04-0-05 |
|
➁ |
plate side – Porting pattern according to ISO 4401-05-04-0-05 |
|
Type |
B1 |
B2 |
B3 |
H |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| VA/VP | 69 | 11.5 | 20.7 | 26 | 227 | 203 | 117 | 57.6 | 50.3 | 4 | 45.5 |
| VT | 70 | 12 | 27 | 25 | 218 | 194 | 105 | 60.9 | 53.6 | 0.7 | 32.5 |
Version "VB"
(dimensions im mm)
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type "2" (with version "J3" and "J5" without protective cap) |
|
4 |
Adjustment type "3" |
|
5 |
Adjustment type "7" |
|
6 |
Dimensions required to remove the key |
|
7 |
Valve mounting bores |
|
8 |
Lock nut SW24 |
|
9 |
Hexagon SW10 |
|
10 |
Identical seal rings for ports A, B, P, TA, TB (plate side) |
|
11 |
Sealing plate 80 x 70 x 1.5 mm (only with version “VA” and “VP”) |
|
15 |
Hexagon SW30, tightening torque MA = 50 Nm |
|
➀ |
component side – Porting pattern according to ISO 4401-05-04-0-05 |
|
➁ |
plate side – Porting pattern according to ISO 4401-05-04-0-05 |
Version “VC” and “VD”
(dimensions in mm)
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type "2" (with version "J3" and "J5" without protective cap) |
|
4 |
Adjustment type "3" |
|
5 |
Adjustment type "7" |
|
6 |
Dimensions required to remove the key |
|
7 |
Valve mounting bores |
|
8 |
Lock nut SW24 |
|
9 |
Hexagon SW10 |
|
10 |
Identical seal rings for ports A, B, P, TA, TB (plate side) |
|
15 |
Hexagon SW30, tightening torque MA = 50 Nm |
|
➀ |
component side – Porting pattern according to ISO 4401-05-04-0-05 |
|
➁ |
plate side – Porting pattern according to ISO 4401-05-04-0-05 |
|
Type |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
L8 |
L9 |
L10 |
L11 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| VC | 123 | 111 | 112 | 89 | 90 | 59 | 60 | 52 | 53 | 2 | 1 |
| VD | 132 | 107 | 112 | 85 | 90 | 56 | 56 | 49 | 49 | 6 | 6 |
Notices:
To port X and Y bored according to ISO 4401-05-05-0-05 (e.g. for pilot-operated directional valve NG10), version “SO30“ applies at the end of the ordering code! Deviating from ISO 4401, port T is referred to with TA and port T1 is referred to with TB in this data sheet.
Valve mounting screws (separate order)
Version "J3"4 hexagon socket head cap screws ISO 4762 - M6 - 10.9-CM-Fe-ZnNi-5-Cn-T0-H-B
friction coefficient µtotal = 0,09 … 0.14
Version "J5"
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9-CM-Fe-ZnNi-8-Cn-T0-H-B
Friction coefficient µtotal = 0,09 … 0.14
Without corrosion protection
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9
Friction coefficient µtotal = 0.12 … 0.17
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Type Z2DB 10 VC and VD
Dimensions in mm
| 1) | Fit |
Type ZDB 10 VA, VP and VT
Dimensions in mm
| 1) | Fit |
Type ZDB 10 VA, VP and VT
Dimensions in mm
