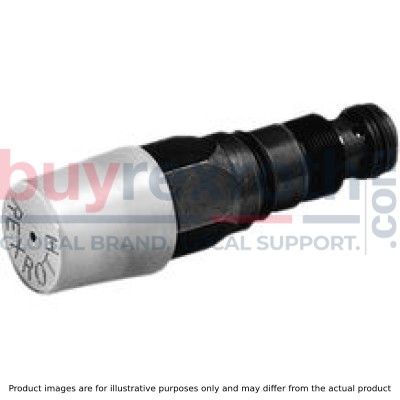

PRESSURE RELIEF VALVE DB 6 K2-4X/315YV
Manufacturer: Bosch Rexroth
Material #: R900483441
Model : DB 6 K2-4X/315YV
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth DB 6 K2-4X/315YV (R900483441) is a sophisticated pilot-operated pressure relief valve designed to manage and limit system pressure in hydraulic systems. This screw-in cartridge valve is capable of handling a maximum operating pressure of 315 bar (4568.58 psi) and allows for a maximum flow rate of up to NG6 l/min, ensuring efficient control over hydraulic circuits. The DB 6 K2-4X/315YV features a poppet-type spool, which ensures reliable performance and durability under various operating conditions.
This model is engineered with an internal pilot oil supply and an external pilot oil return, facilitating precise control over the spool movement and thus the system pressure. The valve's adjustment options include a sleeve with hexagon and protective cap, allowing for easy and secure setting of the desired pressure level. It falls under the product family classification of pilot-operated pressure relief valves and is identified by its product group ID.
Constructed with FKM sealing material, it offers excellent resistance to high temperatures and chemical exposure, making it suitable for use with hydraulic fluids such as HL, HLP, HEES, and HEPG. Its robust design is further exemplified by its block installation capability, which provides a compact solution for integrating into various hydraulic systems.
The Bosch Rexroth DB 6 K2-4X/315YV valve stands out for its reliability in maintaining system safety by limiting the operational pressure to prevent potential damage due to excessive force or flow within the hydraulic circuit. Its versatility in adjustment options caters to different user preferences while ensuring precise control over critical operations. This model's capabilities make it an essential component in advanced hydraulic applications where consistent performance and safety are paramount.
$340.00 USD
Availability: 53 In Stock
Available for immediate shipmentQty: Delivered as early as January 10, 2025 when ordered in
This product is eligible for factory repair.
Pressure relief valve, pilot operated
Unpacked Weight: 0.2336 kg
Cartridge valve 4 pressure ratings 4 optional adjustment types:• Rotary knob• Sleeve with hexagon and protective cap• Lockable rotary knob with scale• Rotary knob with scale
Pressure valves type DB..K.. are pilot-operated pressure relief valves for block design installation. They are used for system pressure limitation. The system pressure can be set via the adjustment type (4).
In the initial position the valves are closed. The pressure in main port 1 acts on the spool (1). At the same time, pressure is applied to the spring-loaded side of the spool (1) via nozzle (2) and to the pilot poppet (6) via nozzle (3). If the pressure in main port 1 exceeds the value set at spring (5), the pilot poppet (6) opens. Hydraulic fluid flows from the spring-loaded side of the spool (1) via nozzle (3) and channel (7) into the main port 3. The resulting pressure drop moves the spool (1) and thus opens the connection from main port 1 to 2 while maintaining the pressure set at spring (5).
Die pilot oil return from the two spring chambers is effected externally, via main port 3.
Notice!
Counter pressures (main port 3) add up to the set pressure.
Type DB 10 K2-4X/.YV
(measured with HLP46, ϑOil = 40 ±5 °C)
NG6
pE-qV characteristic curves
NG6
pE min-qV characteristic curves
Attention!
The characteristic curves apply for output pressure = zero in the entire flow range!
NG10
pE-qV characteristic curves
NG10
pE min-qV characteristic curves
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T) |
|
➂ |
Main port 3 (Y) |
NG6
Dimensions in mm
|
1 |
Adjustment type "1" |
|
2 |
Adjustment type "2" |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
Space required to remove the key |
|
6 |
Lock nut SW24 |
|
7 |
Hexagon SW10 |
|
8 |
Wrench size SW24, tightening torque for screw-in MA = 50 Nm |
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T) |
|
➂ |
Main port 3 (Y) |
|
LS |
Location shoulder |
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T), can optionally be arranged at the circumference |
|
➂ |
Main port 3 (Y) |
|
LS |
Location shoulder |
NG6; 3 main ports; thread M20 x 1
Dimensions in mm
|
1 |
Adjustment type "1" |
|
2 |
Adjustment type "2" |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
Space required to remove the key |
|
6 |
Lock nut SW24 |
|
7 |
Hexagon SW10 |
|
8 |
Wrench size SW24, tightening torque for screw-in MA = 50 Nm |
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T) |
|
➂ |
Main port 3 (Y) |
|
LS |
Location shoulder |
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T), can optionally be arranged at the circumference |
|
➂ |
Main port 3 (Y) |
|
LS |
Location shoulder |
NG10
Dimensions in mm
|
1 |
Adjustment type "1" |
|
2 |
Adjustment type "2" |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
Space required to remove the key |
|
6 |
Lock nut SW24 |
|
7 |
Hexagon SW10 |
|
8 |
Hexagon SW30, tightening torque for screw-in MA = 50 Nm |
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T) |
|
➂ |
Main port 3 (Y) |
|
LS |
Location shoulder |
Mounting cavity – NG10; 3 main ports; thread M20 x 1
Dimensions in mm
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T), can optionally be arranged at the circumference |
|
➂ |
Main port 3 (Y) |
|
LS |
Location shoulder |
