PRESSURE RELIEF VALVE DB 10 K2-4X/200Y
Manufacturer: Bosch Rexroth
Material #: R900481084
Model : DB 10 K2-4X/200Y
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth DB 10 K2-4X/200Y (R900481084) is a high-performance, pilot-operated pressure relief valve designed for screw-in cartridge valve systems. This particular model is capable of handling a maximum operating pressure of up to 315 bar (4568 psi) and allows for a maximum flow of 200 l/min (52.8 gpm). It features a cavity type Mx and utilizes NBR sealing material for reliable performance under various conditions.
The DB 10 K2-4X/200Y operates by maintaining system pressure within set limits. The valve's initial closed position ensures no fluid passes through until the pressure in the main port reaches the pre-set value. This triggers the pilot poppet to open, allowing fluid to flow and subsequently reducing the pressure on the spring-loaded side of the spool, which then shifts to open the connection from main port A to B while maintaining control over the system pressure.
This model comes with an internal pilot oil supply and an external pilot oil return, ensuring efficient operation and easy maintenance. The spool type is poppet, which contributes to its precise control capabilities. Additionally, it offers various adjustment options including a sleeve with hexagon and protective cap, enabling users to customize settings according to their specific requirements.
The DB 10 K2-4X/200Y valve is part of Bosch Rexroth's DB.K product family classification, indicating its role as a pilot-operated relief valve suitable for block design installation. Its robust design ensures that it can be used in a wide range of hydraulic applications where consistent performance and durability are essential. With its comprehensive features and reliable operation, this Bosch Rexroth valve is an integral component for controlling system pressures in hydraulic circuits.
$337.20 USD
Availability: 4 In Stock
Available for immediate shipmentQty: Delivered as early as September 30, 2024 when ordered in
This product is eligible for factory repair.

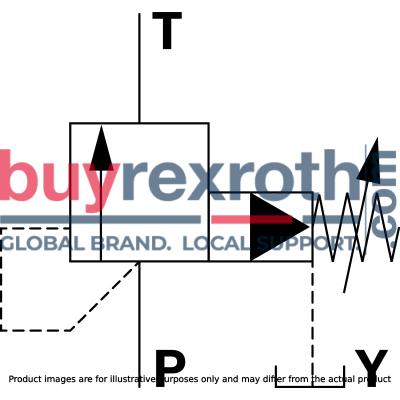

Pressure relief valve, pilot operated
Unpacked Weight: 0.3274 kg
Cartridge valve 4 pressure ratings 4 optional adjustment types:• Rotary knob• Sleeve with hexagon and protective cap• Lockable rotary knob with scale• Rotary knob with scale
Pressure valves type DB..K.. are pilot-operated pressure relief valves for block design installation. They are used for system pressure limitation. The system pressure can be set via the adjustment type (4).
In the initial position the valves are closed. The pressure in main port 1 acts on the spool (1). At the same time, pressure is applied to the spring-loaded side of the spool (1) via nozzle (2) and to the pilot poppet (6) via nozzle (3). If the pressure in main port 1 exceeds the value set at spring (5), the pilot poppet (6) opens. Hydraulic fluid flows from the spring-loaded side of the spool (1) via nozzle (3) and channel (7) into the main port 3. The resulting pressure drop moves the spool (1) and thus opens the connection from main port 1 to 2 while maintaining the pressure set at spring (5).
Die pilot oil return from the two spring chambers is effected externally, via main port 3.
Notice!
Counter pressures (main port 3) add up to the set pressure.
Type DB 10 K2-4X/.YV
(measured with HLP46, ϑOil = 40 ±5 °C)
NG6
pE-qV characteristic curves
NG6
pE min-qV characteristic curves
Attention!
The characteristic curves apply for output pressure = zero in the entire flow range!
NG10
pE-qV characteristic curves
NG10
pE min-qV characteristic curves
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T) |
|
➂ |
Main port 3 (Y) |
NG6
Dimensions in mm
|
1 |
Adjustment type "1" |
|
2 |
Adjustment type "2" |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
Space required to remove the key |
|
6 |
Lock nut SW24 |
|
7 |
Hexagon SW10 |
|
8 |
Wrench size SW24, tightening torque for screw-in MA = 50 Nm |
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T) |
|
➂ |
Main port 3 (Y) |
|
LS |
Location shoulder |
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T), can optionally be arranged at the circumference |
|
➂ |
Main port 3 (Y) |
|
LS |
Location shoulder |
NG6; 3 main ports; thread M20 x 1
Dimensions in mm
|
1 |
Adjustment type "1" |
|
2 |
Adjustment type "2" |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
Space required to remove the key |
|
6 |
Lock nut SW24 |
|
7 |
Hexagon SW10 |
|
8 |
Wrench size SW24, tightening torque for screw-in MA = 50 Nm |
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T) |
|
➂ |
Main port 3 (Y) |
|
LS |
Location shoulder |
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T), can optionally be arranged at the circumference |
|
➂ |
Main port 3 (Y) |
|
LS |
Location shoulder |
NG10
Dimensions in mm
|
1 |
Adjustment type "1" |
|
2 |
Adjustment type "2" |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
Space required to remove the key |
|
6 |
Lock nut SW24 |
|
7 |
Hexagon SW10 |
|
8 |
Hexagon SW30, tightening torque for screw-in MA = 50 Nm |
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T) |
|
➂ |
Main port 3 (Y) |
|
LS |
Location shoulder |
Mounting cavity – NG10; 3 main ports; thread M20 x 1
Dimensions in mm
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T), can optionally be arranged at the circumference |
|
➂ |
Main port 3 (Y) |
|
LS |
Location shoulder |
