4WMD6C5X/F
Manufacturer: Bosch Rexroth
Material #: R900476226
Model : 4WMD6C5X/F
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

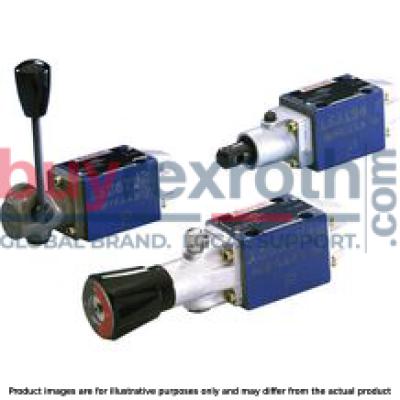

The Bosch Rexroth 4WMD6C5X/F (R900476226) is a high-performance directional spool valve designed for controlling fluid flow in hydraulic systems. This particular model is part of the WM series, which features mechanical, manually actuated valves that are essential for managing the start, stop, and direction of fluid flow. The 4WMD6C5X/F valve includes a robust housing, a rotary knob for actuation, a control spool, and one or two return springs that ensure the spool returns to its central or starting position when not engaged.
Equipped with a detent mechanism, this valve allows each spool position to be securely locked into place as needed. This feature provides stability and control during operation, making it suitable for applications where precise positioning is critical. The model also includes an option for integrating a throttle insert in channel P to regulate flow rates that may exceed the valve's performance limit during switching processes.
The 4WMD6C5X/F offers versatility with its 3 or 4-way version configuration and adherence to international porting patterns — DIN form A without locating hole and ISO with locating hole. It supports various types of actuation; however, this specific model utilizes a rotary knob. Additionally, it can be fitted with inductive position switches and proximity sensors for contactless detection of the spool's position.
This valve boasts a size component series X with a maximum operating pressure of 350 bar and can accommodate maximum flow rates up to 60 l/min. These specifications make it highly capable of handling demanding hydraulic applications while ensuring reliability and performance.
$808.00 USD
More are expected on May 5, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as May 5, 2025 when ordered in
This product is eligible for factory repair.
Type WM.. valves are mechanical, manually actuated directional spool valves. They control the start, stop and direction of a flow. Directional valves basically consist of housing (1), one type of actuation (2) (rotary knob), control spool (3), and one or two return springs (4). In de-energized state, the return springs (4) maintain the control spool (3) in central or starting position - if the rotary knob is actuated with a detent. The control spool (3) is moved to the desired spool position by means of the type of actuation (2).
Detent
Directional valves with rotary knob are generally designed with detent. Directional valves with hand lever are optionally available as 2 or 3 position valves with detent. Directional valves with roller plunger are generally designed without detent. If types of actuation with detent are used, each spool position can be locked, depending on the valve type.
Throttle insert
The use of a throttle insert is required when due to prevailing operating conditions, flows can occur during the switching processes, which exceed the performance limit of the valve. It is inserted in channel P of the directional valve.
Type 4WM. 6 ..5X/..B..
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves
|
7 |
Symbol “R” in spool position "b" (A → B) |
|
8 |
Symbols “G” and “T” in central position (P → T) |
|
Symbols |
Direction of flow |
|||
|
P-A |
P-B |
A-T |
B-T |
|
|
A |
3 |
3 |
– |
– |
|
B |
3 |
3 |
– |
– |
|
C |
1 |
1 |
3 |
1 |
|
D |
5 |
5 |
3 |
3 |
|
E |
3 |
3 |
1 |
1 |
|
F |
1 |
3 |
1 |
1 |
|
G |
6 |
6 |
9 |
9 |
|
H |
2 |
4 |
2 |
2 |
|
J |
1 |
1 |
2 |
1 |
|
L |
3 |
3 |
4 |
9 |
|
M |
2 |
4 |
3 |
3 |
|
P |
3 |
1 |
1 |
1 |
|
Q |
1 |
1 |
2 |
1 |
|
R |
5 |
5 |
4 |
– |
|
T |
10 |
10 |
9 |
9 |
|
U |
3 |
3 |
9 |
4 |
|
V |
1 |
2 |
1 |
1 |
|
W |
1 |
1 |
2 |
2 |
|
Y |
5 |
5 |
3 |
3 |
Performance limits
(measured with HLP46, ϑOil = 40 ±5 °C)
Notice!
The specified switching power limits are valid for use with two directions of flow (e. g. from P to A and simultaneous return flow from B to T).
Due to the flow forces acting within the valves, the admissible switching power limits may be considerably lower with only one direction of flow (e. g. from P to A while port B is blocked)!
In such use cases, please consult us
|
Characteristic curve |
Symbol |
|
1 |
E,E1–,M,H,C,D,Y,Q,U,W |
|
2 |
J,L |
|
3 |
A,B |
|
4 |
G,P |
|
5 |
F |
|
6 |
V |
|
7 |
R |
|
8 |
T |
| 1)Example: | |
| Symbol E with spool position "a" → ordering code ..EA.. | |
| Symbol E with spool position “b" → ordering code ..EB.. | |
| 3)Symbol E1-: P → A/B pre-opening | |
| Caution in conjunction with differential cylinders due to pressure intensification! |
Notices!
Representation according to DIN ISO 1219-1.
Hydraulic interim positions are shown by dashes.
|
Type of actuation |
|
Rotary knob “WMD” |
|
|
|
|
Dimensions in mm
Dimensions in mm
|
1 |
Name plate |
|
3 |
Identical seal rings for ports A, B, P, and T |
|
5 |
Valve with 2 spool positions |
|
6 |
Valve with 3 spool positions |
|
10 |
Spool position “a” |
|
11 |
Spool position “0” and “b” (b for valves with 2 spool positions) |
|
12 |
Spool position “b” |
|
13 |
Switching angle 90° right and 90° left for valves with 3 spool positions) |
Subplates according to data sheet 45052 (separate order)
(without locating hole)
G 341/01 (G1/4)
G 342/01 (G3/8)
G 502/01 (G1/2)
(with locating hole)
G 341/60 (G1/4)
G 342/60 (G3/8)
G 502/60 (G1/2)
G 341/12 (SAE-6)1)
G 342/12 (SAE-8)1)
G 502/12 (SAE-10)1)
1) On request
Valve mounting screws (separate order)
Clamping length 42 mm:4 hexagon socket head cap screws, metric
ISO 4762 - M5 x 50 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
tightening torque MA = 7 Nm ± 10 %,
material no. R913000064
or
4 hexagon socket head cap screws
ISO 4762 - M5 x 50 - 10.9 (self procurement)
(friction coefficient μtotal = 0.12 to 0.17);
tightening torque MA = 8.1 Nm ± 10 %
4 hexagon socket head cap screws UNC
10-24 UNC x 2″ ASTM-A574
(friction coefficient μtotal = 0.19 to 0.24);
tightening torque MA = 11 Nm ± 15 %,
(friction coefficient μtotal = 0.12 to 0.17);
tightening torque MA = 8 Nm ± 10 %,
material no. R978800693
