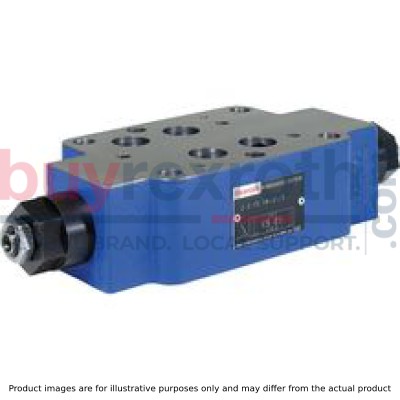

THROTTLE CHECK VALVE Z2FS16-8-3X/SV
Manufacturer: Bosch Rexroth
Material #: R900470529
Model : Z2FS16-8-3X/SV
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth Z2FS16-8-3X/SV (R900470529) is a high-performance industrial hydraulic valve designed for precise flow control in hydraulic systems. This valve is of the ZFS type, which is a throttle check valve in a sandwich plate design, suitable for limiting the flow to one or two actuator ports with high reliability. It features a spool symbol A A, B B or A A, B B, indicating that it can be configured for different circuit designs.
This direct-actuated valve allows for accurate throttling to a set value and features a spindle with an internal hexagon for adjustment. The mechanically actuated throttle check valves are equipped with symmetrically arranged throttle spools that limit flows in one direction while permitting free return flow in the opposite direction. This ensures smooth operation and precise control over the fluid dynamics within the system.
The Z2FS16-8-3X/SV has been engineered to handle maximum pressures efficiently and comes with FKM seals which are compatible with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR. It also conforms to NFPA T.. R D and ISO porting patterns for easy integration into existing systems.
With its robust design and versatile capabilities including meter-in or meter-out throttling options, this Bosch Rexroth valve is an essential component for applications requiring precise actuator velocity adjustments. The valve's maximum operating pressure stands at bar while it can accommodate a maximum flow of l/min. Its sandwich plate configuration ensures that it can be easily mounted between directional valves and subplates within complex hydraulic circuits.
Overall, the Bosch Rexroth Z2FS16-8-3X/SV (R900470529) represents a reliable solution for sophisticated hydraulic control tasks where precision and durability are paramount.
$1,098.00 USD
More are expected on December 31, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as December 31, 2024 when ordered in
This product is eligible for factory repair.
Size 16, A1 → A2, B1 → B2 or A2 → A1, B2 → B1, mechanically actuated
Industrial hydraulic valve in a high performance range. Reliable throttling of the flow to setting value.
Unpacked Weight: 4.41 kg
Sandwich plate valve Porting pattern according to ISO 4401-07-07-0-05 Flow limitation of 2 actuator ports Adjustment type: Spindle with hexagon socket Meter-in or meter-out throttling
The valve type Z2FS is a throttle check valve in sandwich plate design. It is used for the flow limitation of one or two actuator ports.
Two symmetrically arranged throttle check valves limit flows (by adjustable throttle spools) in one direction and allow free return flow in the opposite direction.
In case of supply throttling, the hydraulic fluid is directed through channel A➀ via throttling point (1) to actuator A➁. The throttle spool (2.1) can be axially adjusted via the spindle (3) for adjustment of the throttling point (1).
Simultaneously, the hydraulic fluid in channel A➀ is directed via the bore (4) to the piston side (5).
The active pressure and the spring force retain the throttle spool (2.1) in throttle position.
The hydraulic fluid return flow from actuator B➁ displaces the throttle spool (2.2) and enables the unobstructed flow as check valve. Depending on the version ("S" or "S2"), the throttling effect may occur in supply or discharge.
Flow limitation
For actuator velocity adjustment, the throttle check valve is installed between the directional valve and the subplate.
Supply throttling
|
➀ |
component side |
|
➁ |
plate side |
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves (via check valve with closed throttle)
Δp-qV characteristic curves (constant throttle position)
Supply throttling "S"
Version "-"
Discharge throttling "S2"
Version "-"
Discharge throttling "S2"
Version "A"
Discharge throttling "S2"
Version "A"
Supply throttling "S"
Version "B"
Discharge throttling "S2"
Version "B"
|
➀ |
component side |
|
➁ |
plate side |
Supply throttling "S"
Version "A"
Dimensions in mm
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type "8“ Spindle for changing the flow cross-section (internal hexagon SW6) Left rotation = higher flow Right rotation = lower flow |
|
3 |
Through holes for valve mounting |
|
4 |
Identical seal rings for connection A, B, P, T |
|
5 |
Identical seal rings for ports X, Y, L |
|
6 |
Locking pin (included in the scope of delivery) |
|
7 |
Hexagon SW19, tightening torque MA see table |
|
8 |
Porting pattern according to ISO 4401-07-07-0-05 |
|
9.1 |
Plug screw with version "B" |
|
9.2 |
Plug screw with version "A" |
|
Version “Corrosion resistance” |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
Pos. 7 MA in Nm ±10 % |
|
mm |
mm |
mm |
mm |
mm |
mm |
Nm |
|
| "no code" | 224 | 248 | 224 | 248 | 246 | 294 | 25 |
| „J3“ | 227 | 251 | 227 | 251 | 252 | 300 | 33 |
Valve mounting screws (separate order)
metric4 hexagon socket head cap screws ISO 4762 - M10 - 10.9-flZn-240h-L
2 hexagon socket head cap screws ISO 4762 - M6 - 10.9-flZn-240h-L
UNC
4 hexagon socket head cap screws 3/8-16 UNC
2 hexagon socket head cap screws 1/4-20 UNC
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
