PRESSURE REDUCING VALVE DR 10 K5-3X/100YM

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

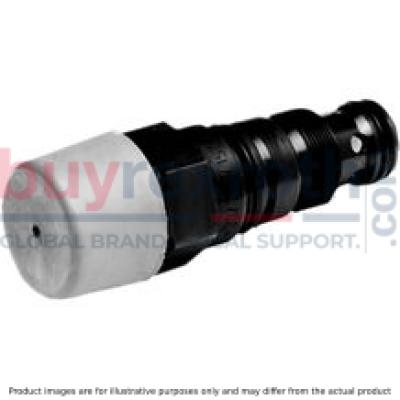

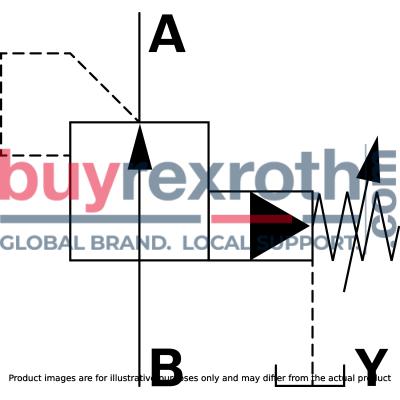

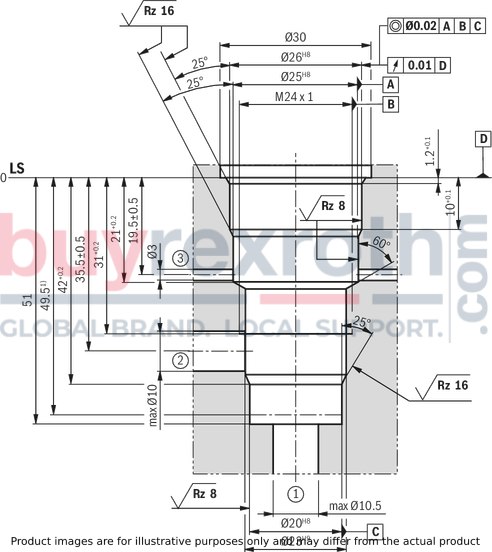

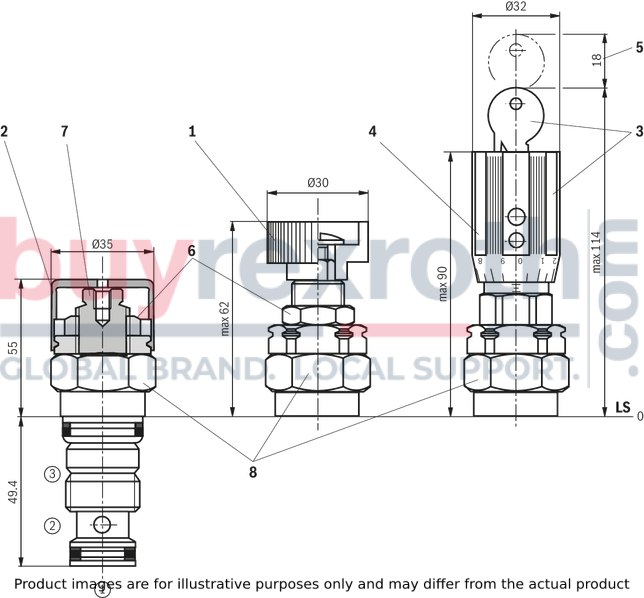

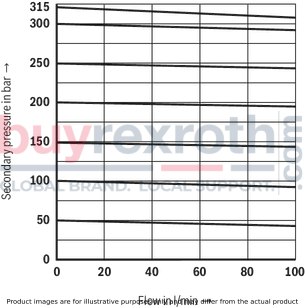

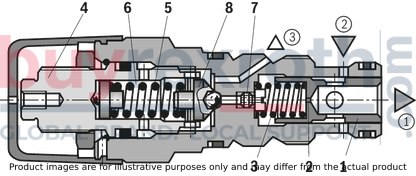

The Bosch Rexroth DR 10 K5-3X/100YM (R900459508) is a high-performance pressure reducing valve, designed for efficient control in hydraulic systems. This pilot-operated screw-in cartridge valve is engineered to maintain a reduced system pressure with precision. The valve operates with a maximum flow of 100 l/min and can withstand an operating pressure of up to 315 bar (4568 psi), ensuring reliability in demanding applications. Its Mx cavity and NBR sealing material are compatible with hydraulic fluids HL and HLP, which are commonly used in industry. The DR 10 K5-3X/100YM features a poppet type spool that allows hydraulic fluid to flow unrestricted from port A to B in its normal position. It maintains secondary pressure through an adjustable spring mechanism; this pressure setting is achieved via the sleeve with hexagon and protective cap adjustment option. The valve's operation involves the main spool and pilot poppet, which work together to regulate the pressure by releasing excess fluid through the nozzle system when the set value is exceeded. This model ensures internal pilot oil supply and external pilot oil return, contributing to its consistent performance. It has been designed with user safety in mind, incorporating features such as protective caps over adjustment mechanisms to prevent accidental changes to the pressure settings. The Bosch Rexroth DR 10 K5-3X/100YM valve's compact design makes it suitable for block installation, offering a streamlined solution for systems where space efficiency is crucial. Its robust construction ensures long-term durability even in challenging environments, making it an essential component for various hydraulic applications requiring precise pressure reduction and control.
