F5P3-3X/0,2Q
Manufacturer: Bosch Rexroth
Material #: R900452659
Model : F5P3-3X/0,2Q
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

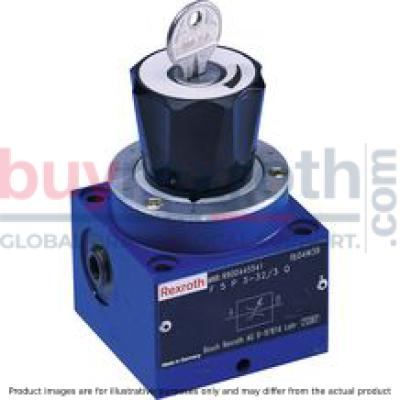

The Bosch Rexroth F5P3-3X/02Q (R900452659) is a precision-engineered flow control valve designed for efficient flow throttling with minimal temperature dependency. This fine throttle valve is distinguished by its robust housing, an adjustable element, and a specifically designed orifice that together facilitate the precise control of fluid flow. The valve operates by adjusting the throttle cross-section through the rotation of a curved bolt, which modulates the flow from port A to B via the orifice window.
This model is versatile and can be mounted in different ways: it is suitable for subplate mounting, threaded connections, and block installation. Additionally, it features a lockable rotary knob, ensuring secure settings against unintended adjustments. The F5P3-3X/02Q valve is part of Component series X, which is known for its reliability and performance consistency under varying operational conditions.
With a maximum operating pressure and maximum flow rate that accommodate a wide range of hydraulic applications, this Bosch Rexroth valve meets stringent requirements for controlled fluid management. Its design ensures that changes in temperature have a minimal effect on the throttling performance, making it an ideal choice for systems where stable flow control is critical regardless of environmental factors. Whether used in industrial machinery or mobile hydraulics, this flow control valve stands out for its precision and durability.
$3,977.00 USD
More are expected on April 21, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 21, 2025 when ordered in

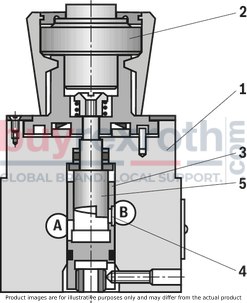

The flow control valve type F is a fine throttle valve with an orifice-type throttling point. It basically consists of housing (1), adjustment element (2) and orifice (3) and is used for throttling of a flow with low temperature dependency.
The flow from A to B is throttled at the orifice window (4). The throttle cross-section is set by rotation of the curved bolt (5). Low temperature dependency is achieved thanks to the orifice design of the throttling point.
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves: NG5
Δp-qV characteristic curves: NG5
Δp-qV characteristic curves: NG5
Δp-qV characteristic curves: NG5
Δp-qV characteristic curves: NG5
Δp-qV characteristic curves: NG5
Δp-qV characteristic curves: NG10 – linear
Δp-qV characteristic curves: NG10 – linear
Δp-qV characteristic curves: NG10 – linear
Δp-qV characteristic curves: NG10 – linear
Δp-qV characteristic curves: NG10 – linear
Δp-qV characteristic curves: NG10 – linear
Δp-qV characteristic curves: NG10 – progressive
Δp-qV characteristic curves: NG10 – progressive
Δp-qV characteristic curves: NG10 – progressive
Δp-qV characteristic curves: NG10 – progressive

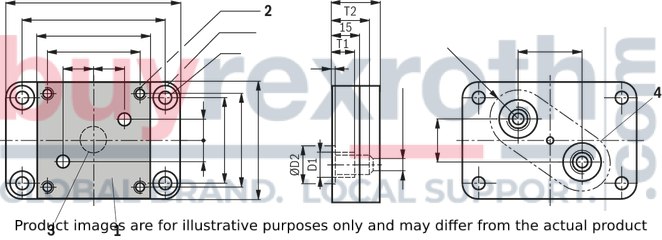

Threaded port and subplate mounting
Dimensions in mm
|
NG |
H1 |
H2 |
H3 |
H4 |
H5 |
H6 |
H7 |
H8 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 5 | 56 | 42 | 95 | 122 | 26 | 30 | 12 | 10 |
| 10 | 58 | 42 | 97 | 124 | 22 | 27 | 14 | 10 |
Pipe thread "G" according to ISO 228/1
|
1 |
Rotary knob security lock (all positions can be locked), rotation range 300° corresponds to 10 scale sections |
|
2 |
Scaling |
|
3 |
Name plate |
|
4 |
Seal ring |
|
5 |
Blind plate (with threaded port only) |
|
6 |
Connection bores closed at version "P". |
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M5 x 50 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
Tightening torque MA = 7 Nm ± 10 %,
Material no. R913000064
|
NG |
H1 |
H2 |
H3 |
H4 |
|
mm |
mm |
mm |
mm |
|
| 5 | 16 | 93 | 120 | 10.3 |
| 10 | 18 | 95 | 122 | 12.4 |

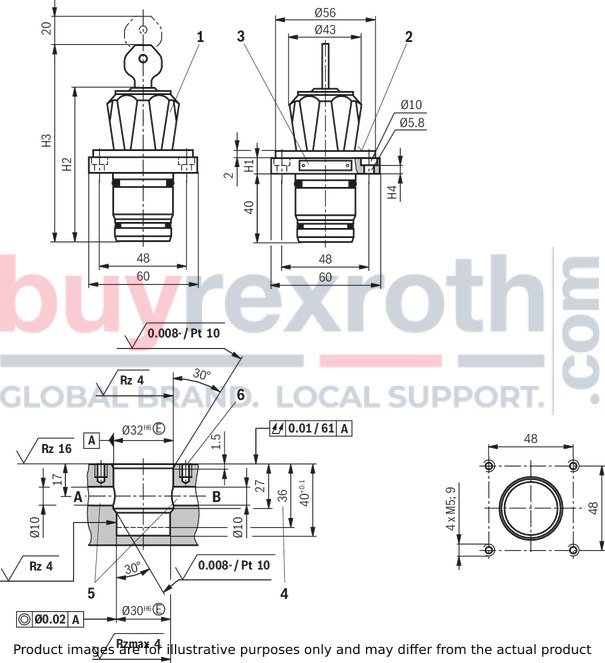

for block installation
Dimensions in mm
|
1 |
Rotary knob security lock (all positions can be locked), rotation range 300° corresponds to 10 scale sections |
|
2 |
Scaling |
|
3 |
Name plate |
|
4 |
Depth of fit |
|
5 |
Attention! Install port A and B outside the range of the mounting bores M5 – Risk of breaking! |
|
6 |
NG5: 4 hexagon socket head cap screws ISO 4762 - M5 x 16 - 10.9-flZn-240h-L (Friction coefficient μtotal = 0.09 to 0.14); Tightening torque MA = 7 Nm ± 10 % Material no. R913000468 |
|
NG10: 4 hexagon socket head cap screws ISO 4762 - M5 x 20 - 10.9-flZn-240h-L (Friction coefficient μtotal = 0.09 to 0.14); Tightening torque MA = 7 Nm ± 10 % Material no. R913000488 |
Dimensions in mm
