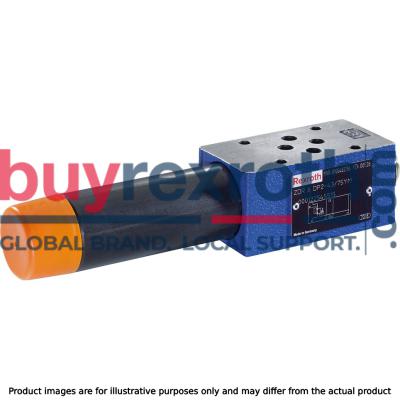

PRESSURE RED.VALVE INTERMEDIATE PLATE ZDR6DA2-4X/75Y/12
Manufacturer: Bosch Rexroth
Material #: R900430193
Model : ZDR6DA2-4X/75Y/12
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth ZDR6DA2-4X/75Y/12 (R900430193) is a high-performance industrial hydraulic valve designed for reliable pressure reduction to a preset value. This direct-operated spool valve is part of the ZDR series and comes in a sandwich plate design, allowing for easy integration into hydraulic systems. It features a mechanical actuation type and is capable of handling a maximum pressure of 315 bar with an adjustable pressure range. The maximum flow rate for this valve is specified at 80 liters per minute.
Equipped with NBR seals, the ZDR6DA2-4X/75Y/12 is compatible with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC. Its construction includes a housing, control spool, compression spring, and an adjustment type mechanism. Additionally, it offers the option of integrating a check valve for free flow back from channel A to A in version A.
The valve ensures consistent secondary circuit pressure through its responsive control spool that adjusts against the compression spring based on the set value. With different versions available (A, P, B), it can cater to specific application needs regarding where the pressure reduction takes place – either in channel A or channel P – while providing internal control signal and pilot oil supply.
This model features multiple ports compliant with NFPA T3.5.1 R2-2002 D03 and ISO 4401 porting patterns. It also boasts a robust design that includes corrosion protection for longevity in harsh environments. The ZDR6DA2-4X/75Y/12 offers easy monitoring capabilities through its pressure gauge connection point.
With its combination of precise adjustability via various adjustment types – such as rotary knob or sleeve with hexagon and protective cap – and versatile configurations for different operational requirements, this Bosch Rexroth valve stands out as an essential component for sophisticated hydraulic systems requiring dependable pressure regulation.
$594.00 USD
More are expected on October 24, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as October 24, 2024 when ordered in
This product is eligible for factory repair.
Size 6, A2 → A1, mechanical
Industrial hydraulic valve in a high performance range. Reliable pressure reduction to setting value.
Unpacked Weight: 1.42 kg
Sandwich plate valve Porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole) 4 pressure ratings 4 adjustment types:
• Rotary knob
• Sleeve with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale Pressure reduction in channel A, B or channel P Check valve, optional (version “A” only) Corrosion-protected design
The valve type ZDR is a direct operated pressure reducing valve in sandwich plate design with pressure limitation of the secondary circuit. It is used to reduce the system pressure.
The pressure reducing valve basically comprises housing (1), control spool (2), compression spring (3), adjustment type (4) and an optional check valve.
The secondary pressure is set via the adjustment type (4).
Version "A"
The valve is open in initial position. Hydraulic fluid can flow from channel A➀ to channel A➀ without restrictions. The pressure in channel A➀ is simultaneously applied via the control line (5) at the piston area opposite the compression spring (3). If the pressure in channel A➀ exceeds the value set at the compression spring (3), the control spool (2) is pushed against the compression spring (3) to control position and keeps the set pressure in channel A➀ at a constant level.
Control signal and pilot oil are supplied internally via the control line (5) from channel A➁.
If the pressure in channel A➀ increases further due to an external force effect at the actuator, it pushes the control spool (2) even further against the compression spring (3).
In this way, channel A➀ is connected to the tank via the control edge (9) at the control spool (2) and the housing (1). So much hydraulic fluid is discharged into the tank that the pressure does not increase any further.
The leakage oil drain from the spring chamber (7) is always effected externally via the bore (6) and channel T (Y).
A pressure gauge connection (8) allows for the control of the secondary pressure at the valve.
A check valve can be used for free flow back from channel A➀ to A➀ with version “A”.
Versions “P” and “B”
For version “P”, the pressure reduction is effected in channel P➀. Control signal and pilot oil are supplied internally from channel P➀.
For version “B”, the pressure is reduced in channel P➀; but the pilot oil is extracted from channel B.
Notice:
If the directional valve is in spool position P to A, the pressure in channel B may not exceed the set secondary pressure. Otherwise, there is pressure reduction in channel A.
Type ZDR 6 DA1-4X/.YM…
|
① |
component side |
|
② |
plate side |
(measured with HLP46, ϑOil = 40 ±5 °C)
pA-qV characteristic curves
Version "A"
pA-qV characteristic curves
Version "B" and "P"
Δpmin-qV characteristic curves
Version "A"
Δpmin-qV characteristic curves
Version "B" and "P"
Δp-qV characteristic curves
Notices:
The curve development is maintained if the pressure is set lower according to the pressure rating. The characteristic curves apply to the pressure at the valve output pT = 0 bar across the entire flow range.Version "P...YM"
Version "A...YM"
Version "B…YM"
Version "A...Y"
|
① |
component side |
|
② |
plate side |
Version "A"
Dimensions in mm
|
|
Required surface quality of the valve contact surface |
|
➀ |
component side – porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole); (with locating hole Ø3 x 5 mm deep) |
|
➁ |
plate side – Porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole); (with locating hole Ø3 x 5 mm deep for locking pin ISO 8752-3x8-St, material no. R900005694, separate order) |
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type "2" |
|
4 |
Adjustment type "3" |
|
5 |
Adjustment type "7" |
|
6 |
Space required to remove the key |
|
7 |
Valve mounting bores |
|
8 |
Lock nut SW24 |
|
9 |
Hexagon SW10 |
|
10 |
Identical seal rings for ports A, B, P, T (Y) |
|
11 |
Pressure gauge connection G1/4; 12 mm deep; internal hexagon SW6 |
Valve mounting screw (separate order)
4 hexagon socket head cap screws ISO 4762-M5-10.9
Notices:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve. The dimensions are nominal dimensions which are subject to tolerances.Version "B" and "P"
Dimensions in mm
|
|
|
Required surface quality of the valve contact surface |
|
➀ |
component side – porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole); (with locating hole Ø3 x 5 mm deep) |
|
➁ |
plate side – Porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole); (with locating hole Ø3 x 5 mm deep for locking pin ISO 8752-3x8-St, material no. R900005694, separate order) |
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type "2" |
|
4 |
Adjustment type "3" |
|
5 |
Adjustment type "7" |
|
6 |
Space required to remove the key |
|
7 |
Valve mounting bores |
|
8 |
Lock nut SW24 |
|
9 |
Hexagon SW10 |
|
10 |
Identical seal rings for ports A, B, P, T (Y) |
|
11 |
Pressure gauge connection G1/4; 12 mm deep; internal hexagon SW6 |
Valve mounting screw (separate order)
4 hexagon socket head cap screws ISO 4762-M5-10.9
Notices:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve. The dimensions are nominal dimensions which are subject to tolerances.Related Products
