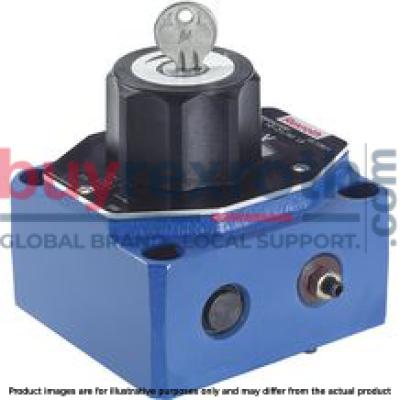

FLOW-CONTROL VALVE 2FRM10-3X/50LBV
Manufacturer: Bosch Rexroth
Material #: R900424898
Model : 2FRM10-3X/50LBV
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 2FRM10-3X/50LBV (R900424898) is a high-performance industrial hydraulic valve designed for reliable control of flow to a set value. This direct-actuated valve features a pressure compensator with optional stroke limitation and a lockable rotary knob with scale, ensuring precise adjustments can be made and maintained. The spool symbol A → B, B → A indicates the directionality of the flow control.
With a maximum pressure product group ID and multiple ports, this valve is mechanically actuated and has the capability to handle a maximum flow rate as specified by its design. It offers subplate mounting with connection diagrams conforming to ISO standards and features several switching positions. The valve's weight is listed along with its seals made from FKM, making it suitable for various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR.
Flow control valves such as the Bosch Rexroth FRM series are typically used to maintain a consistent flow rate that is largely independent of pressure and temperature fluctuations. They achieve temperature independence through an orifice design at the throttling point. Additionally, free return flow from channel B to A is facilitated by an integrated check valve.
This model ensures regulated flow only in one direction from channel A to B but can accommodate oscillating flows in both directions when paired with a rectifier sandwich plate type ZS installed underneath it. Designed for subplate mounting with porting patterns according to DIN form G and ISO standards, this valve includes mechanical actuation along with pressure compensator stroke limitation that can be optionally included. The unit also features startup jump reduction and allows for controlled flow in both directions through the rectifier sandwich plate. It comes in size 10 of component series X with specified maximum operating pressure (bar) and maximum flow rate (l/min).
$1,239.00 USD
More are expected on December 3, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as December 3, 2024 when ordered in
This product is eligible for factory repair.
Size 10, A → B, B → A, mechanically actuated
Industrial hydraulic valve in a high performance range. Reliable control of the flow to setting value.
Unpacked Weight: 3.36 kg
For subplate mounting Porting pattern according to DIN 24340 form G and ISO 6263 Mechanical actuation Pressure compensator stroke limitation, optional Start-up jump reduction Flow control in both directions through rectifier sandwich plate
Flow control valves type 2FRM are 2-way flow control valves. They are used to maintain a constant flow, mostly independent of pressure and temperature.
Generally, the valves consist of housing (1), orifice bush (2), pressure compensator (3) with optional stroke limitation (3.1), check valve (4), adjustment element (5) at type 2FRM as well as geared piston drive (6), and directional valve (7). The flow from channel A to channel B is throttled at the throttling point (9). The throttle cross-section of type 2FRM is set by mechanically turning the curved bolt (10) over the adjustment element (5). The positioning velocity can be set by means of the throttle check valve (6.3 and 6.4). To fix the required adjustment range, the geared piston drive (6) is equipped with an adjustable stroke limitation (6.1 and 6.2) on both sides. An upstream pressure compensator (3) is included to ensure a pressure-independent and constant flow at throttling point (9).
Temperature independence is achieved thanks to the orifice design of the throttling point.
The free return flow from channel B to channel A is directed via the check valve (4).
The regulated flow only flows from channel A to B.
For oscillating flows (forward and return flow), a rectifier sandwich plate type Z4S can be installed under the flow control valve.
Type 2 FRM...
Section X–X
(measured with HLP46, ϑOil = 40 ±5 °C)
Flow control (A to B)
NG10
Flow control (A to B)
NG16
Free return flow (B to A)
NG10
Free return flow (B to A)
NG16
|
simplified |
Detailed |
|
|
Type 2FRM |
|
|
Dimensions in mm
|
NG |
B1 |
B2 |
B3 |
B4 |
B5 |
B6 |
ØD1 |
ØD2 |
D3 |
H1 |
H2 |
H3 |
H4 |
H5 |
L1 |
L2 |
L3 |
L4 |
T1 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 10 | 101.5 | 82.5 | 9.5 | 68 | 58.7 | 35.5 | 9 | 15 | 6 | 125 | 95 | 26 | 51 | 60 | 95 | 76 | 9.5 | 79.4 | 13 |
| 16 | 123.5 | 101.5 | 11 | 81.5 | 72.5 | 41.5 | 11 | 18 | 6 | 147 | 117 | 34 | 72 | 82 | 123.5 | 101.5 | 11 | 102.4 | 12 |
Subplates (separate order)
Size 10:
G 279/01 (G 1/2)
G 280/01 (G 3/4)
Size 16:
G 281/01 (G 1)
G 282/01 (G 1 1/4)
Valve mounting screws (separate order)
Size 10:4 hexagon socket head cap screws ISO 4762 - M8 x 50 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
Tightening torque MA = 30 Nm ± 10 %,
Material no. R913000543
Size 16:4 hexagon socket head cap screws ISO 4762 - M10 x 80 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
Tightening torque MA = 64 Nm ±10 %,
Material no. R913000496
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
