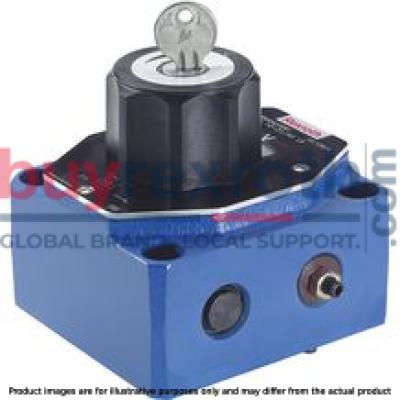

The Bosch Rexroth 2FRM16-3X/160LBV (R900424034) is a precision-engineered flow control valve designed to offer consistent flow regulation, primarily independent of pressure and temperature variations. This model is part of the FRM series and features a robust housing, an orifice bush, and a pressure compensator with an optional stroke limitation to ensure optimal performance. The valve includes a check valve and an adjustment element for fine-tuning flow rates. With its mechanically adjustable curved bolt, the 2FRM16-3X/160LBV allows for precise setting of the throttle cross-section. The throttle check valve enables users to set the positioning velocity as required. To accommodate different adjustment ranges, the geared piston drive comes with an adjustable stroke limitation that can be set on both sides. The pressure compensator included in this model ensures that the flow remains constant at the throttling point despite fluctuations in pressure. Temperature independence of flow is achieved through the specialized design of the throttling point orifice. For reverse flow from channel B to channel A, this is managed by the integrated check valve, while regulated flow is maintained from channel A to B only. If there's a need for controlling oscillating flows in both directions, a rectifier sandwich plate type ZS can be installed beneath this control valve. This particular model is suitable for subplate mounting and adheres to porting patterns according to DIN form G and ISO standards. It features mechanical actuation with optional pressure compensator stroke limitation and startup jump reduction capabilities. The 2FRM16-3X/160LBV supports maximum operating pressures up to bar and can handle maximum flows measured in liters per minute, making it suitable for various hydraulic applications requiring precise flow control.

$1,833.00 USD

More are expected on November 22, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as November 22, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

For subplate mounting Porting pattern according to DIN 24340 form G and ISO 6263 Mechanical actuation Pressure compensator stroke limitation, optional Start-up jump reduction Flow control in both directions through rectifier sandwich plate

Flow control valves type 2FRM are 2-way flow control valves. They are used to maintain a constant flow, mostly independent of pressure and temperature.

Generally, the valves consist of housing (1), orifice bush (2), pressure compensator (3) with optional stroke limitation (3.1), check valve (4), adjustment element (5) at type 2FRM as well as geared piston drive (6), and directional valve (7). The flow from channel A to channel B is throttled at the throttling point (9). The throttle cross-section of type 2FRM is set by mechanically turning the curved bolt (10) over the adjustment element (5). The positioning velocity can be set by means of the throttle check valve (6.3 and 6.4). To fix the required adjustment range, the geared piston drive (6) is equipped with an adjustable stroke limitation (6.1 and 6.2) on both sides. An upstream pressure compensator (3) is included to ensure a pressure-independent and constant flow at throttling point (9).

Temperature independence is achieved thanks to the orifice design of the throttling point.

The free return flow from channel B to channel A is directed via the check valve (4).

The regulated flow only flows from channel A to B.

For oscillating flows (forward and return flow), a rectifier sandwich plate type Z4S can be installed under the flow control valve.

Type 2 FRM...

Section X–X

01	02	03		04		05	06	07	08	09	10	11
2FR			–	3X	/							*

01	2-way flow control valve	2FR
Type of actuation
02	Mechanical	M
	Hydraulic	H
	Electro-hydraulic	W
03	Size 10	10
03	Size 16	16
04	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)	3X
Flow range A to B
05	Size 10, linear
	Up to 10 l/min	10L
	Up to 16 l/min	16L
	Up to 25 l/min	25L
	Up to 50 l/min	50L
	Size 16, linear
	Up to 60 l/min	60L
	Up to 100 l/min	100L
	Up to 160 l/min	160L
06	Without pressure compensator stroke limitation	no code
06	With pressure compensator stroke limitation	B
07	Without actual value potentiometer	no code
07	With actual value potentiometer (only types 2FRH and 2FRW)	P
08	With concealed manual override (standard)	N9
	With manual override	N
	Without manual override	no code
Electrical connection
09	Individual connection
09	Without mating connector; connector DIN EN 175301-803	K4 1)
Seal material
10	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used.
11	Further details in the plain text	*

1) Mating connectors, separate order.

Preferred types and standard units are contained in the EPS (standard price list).

general

Size			10	16
Weight		kg	5.6	11.3
Installation position			any
Ambient temperature range	NBR seals	°C	-30 … +80
Ambient temperature range	FKM seals	°C	-20 … +80

hydraulic

Size			10				16
Maximum flow		l/min	10 16 25 50				60 100 160
Maximum operating pressure	Anschluss A	bar	315
Pressure differential with free return flow B to A, qV-dependent		bar	2	2.5	3.5	6	2.8	4.3	7.3
Minimum pressure differential		bar	3 … 7				5 … 12
Flow control	Thermally stable (qV max) at –20 … +80 °C	%	± 2
	Pressure stable (qV max) to Δp = 315 bar	%	± 2				< ± 5
Hydraulic fluid			see table
Hydraulic fluid temperature range	NBR seals	°C	-30 … +80
	FKM seals	°C	-20 … +80
Viscosity range		mm²/s	10 … 800
Maximum admissible degree of contamination of the hydraulic fluid 1)			Class 20/18/15 according to ISO 4406 (c)

1)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards
Mineral oils		HL, HLP	NBR, FKM	DIN 51524
Bio-degradable	Insoluble in water	HETG	NBR, FKM	VDMA 24568
	Insoluble in water	HEES	FKM	VDMA 24568
	Soluble in water	HEPG	FKM	VDMA 24568
Containing water	Water-free	HFDU	FKM	ISO 12922
Containing water	Containing water	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620)	NBR	ISO 12922
Important information on hydraulic fluids! For further information and data on the use of other hydraulic fluids, please refer to data sheet 90220 or contact us! There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)! The flash point of the hydraulic fluid used must be 40 K higher than the maximum solenoid surface temperature. Flame-resistant – containing water: Maximum pressure differential per control edge 50 bar. Pressure pre-loading at the tank port >20% of the pressure differential; otherwise, increased cavitation Life cycle compared to operation with mineral oil HL, HLP 50 to 100 % Bio-degradable: When using bio-degradable hydraulic fluids that are zinc-solving, zinc may accumulate in the fluid (700 mg zinc per pole tube)

electrical ‑ Actual value potentiometer

Resistance	Ω	1000
Load capacity	W	5
Maximum wiper current	A	0.12
Protection class according to DIN EN 60529		IP65
Control limit error at 10°/s (depending on the positioning velocity)	°	± 1.5

For applications outside these parameters, please consult us!

(measured with HLP46, ϑOil = 40 ±5 °C)

Flow control (A to B)

NG10

Flow control (A to B)

NG16

Free return flow (B to A)

NG10

Free return flow (B to A)

NG16

	simplified	Detailed
Type 2FRM

Dimensions in mm

NG	B1	B2	B3	B4	B5	B6	ØD1	ØD2	D3	H1	H2	H3	H4	H5	L1	L2	L3	L4	T1
NG	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
10	101.5	82.5	9.5	68	58.7	35.5	9	15	6	125	95	26	51	60	95	76	9.5	79.4	13
16	123.5	101.5	11	81.5	72.5	41.5	11	18	6	147	117	34	72	82	123.5	101.5	11	102.4	12

Subplates (separate order)

Size 10:

G 279/01 (G 1/2)

G 280/01 (G 3/4)

Size 16:

G 281/01 (G 1)

G 282/01 (G 1 1/4)

Valve mounting screws (separate order)

Size 10:

4 hexagon socket head cap screws ISO 4762 - M8 x 50 - 10.9-flZn-240h-L

(friction coefficient μtotal = 0.09 to 0.14);

Tightening torque MA = 30 Nm ± 10 %,

Material no. R913000543

Size 16:

4 hexagon socket head cap screws ISO 4762 - M10 x 80 - 10.9-flZn-240h-L

(friction coefficient μtotal = 0.09 to 0.14);

Tightening torque MA = 64 Nm ±10 %,

Material no. R913000496

Mating connectors for valves with connector “K4”, without circuitry, standard

3P Z4

Mating connectors for valves with connector “K4”, without circuitry, standard

3P Z4

For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)

Data sheet

Spare parts & repair

Mating connectors for valves with connector “K4”, with indicator light

3P Z5L

Mating connectors for valves with connector “K4”, with indicator light

3P Z5L

For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)

Data sheet

Spare parts & repair
