4WMDA6G5X/F
Manufacturer: Bosch Rexroth
Material #: R900415571
Model : 4WMDA6G5X/F
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

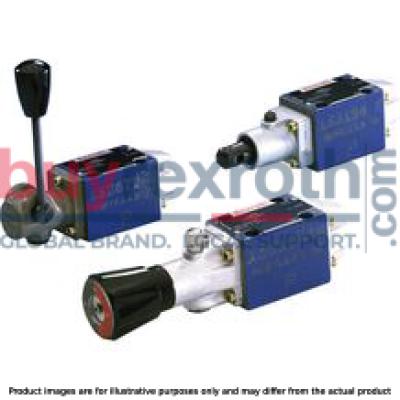

The Bosch Rexroth 4WMDA6G5X/F (R900415571) is a high-quality directional spool valve designed for precise control of hydraulic flow and direction. This model falls within the Type WM range of valves, which are recognized for their robust construction and reliable performance in controlling the start, stop, and direction of fluid flow. The 4WMDA6G5X/F features a lockable rotary knob actuation, providing users with tactile feedback through detents that ensure each spool position is securely locked during operation. This characteristic makes it suitable for applications where stable and repeatable positioning of the spool is necessary.
Equipped with one or two return springs, the valve ensures that the control spool remains in its central or initial position when de-energized. This safety feature adds to the reliability of the system by defaulting to a known state in case of power loss. The inclusion of a throttle insert allows for regulation of fluid flow, particularly beneficial under conditions where switching processes might generate flows exceeding the valve's performance limits. This insert is placed in channel P to optimize performance.
The 4WMDA6G5X/F adheres to both DIN (form A without locating hole) and ISO (with locating hole) porting patterns, offering flexibility for various installation requirements. It supports a maximum operating pressure of up to 350 bar and can handle maximum flow rates up to 60 liters per minute, making it suitable for a wide range of hydraulic applications.
This model also accommodates inductive position switches and proximity sensors for contactless detection, further enhancing its operational capabilities. The valve comes in a versatile size from Bosch Rexroth's Component series X, ensuring it meets stringent industry standards while providing exceptional control for hydraulic systems across various applications without compromising on efficiency or safety.
$1,042.00 USD
More are expected on April 21, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 21, 2025 when ordered in
This product is eligible for factory repair.

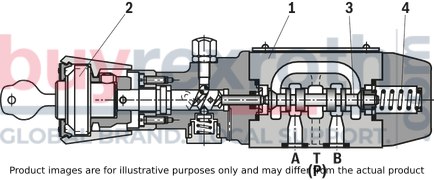

Type WM.. valves are mechanical, manually actuated directional spool valves. They control the start, stop and direction of a flow. Directional valves basically consist of housing (1), one type of actuation (2) (lockable rotary knob), control spool (3) and one or two return springs (4). In de-energized state, the return springs (4) maintain the control spool (3) in central or starting position - if the rotary knob is actuated with a detent. The control spool (3) is moved to the desired spool position by means of the type of actuation (2).
Detent
Directional valves with rotary knob are generally designed with detent. Directional valves with hand lever are optionally available as 2 or 3 position valves with detent. Directional valves with roller plunger are generally designed without detent. If types of actuation with detent are used, each spool position can be locked, depending on the valve type.
Throttle insert
The use of a throttle insert is required when due to prevailing operating conditions, flows can occur during the switching processes, which exceed the performance limit of the valve. It is inserted in channel P of the directional valve.
Type 4WMDA 6 E5X/F
Type 4WM. 6 ..5X/..B..
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves
|
7 |
Symbol “R” in spool position "b" (A → B) |
|
8 |
Symbols “G” and “T” in central position (P → T) |
|
Symbols |
Direction of flow |
|||
|
P-A |
P-B |
A-T |
B-T |
|
|
A |
3 |
3 |
– |
– |
|
B |
3 |
3 |
– |
– |
|
C |
1 |
1 |
3 |
1 |
|
D |
5 |
5 |
3 |
3 |
|
E |
3 |
3 |
1 |
1 |
|
F |
1 |
3 |
1 |
1 |
|
G |
6 |
6 |
9 |
9 |
|
H |
2 |
4 |
2 |
2 |
|
J |
1 |
1 |
2 |
1 |
|
L |
3 |
3 |
4 |
9 |
|
M |
2 |
4 |
3 |
3 |
|
P |
3 |
1 |
1 |
1 |
|
Q |
1 |
1 |
2 |
1 |
|
R |
5 |
5 |
4 |
– |
|
T |
10 |
10 |
9 |
9 |
|
U |
3 |
3 |
9 |
4 |
|
V |
1 |
2 |
1 |
1 |
|
W |
1 |
1 |
2 |
2 |
|
Y |
5 |
5 |
3 |
3 |
Performance limits
(measured with HLP46, ϑOil = 40 ±5 °C)
Notice!
The specified switching power limits are valid for use with two directions of flow (e. g. from P to A and simultaneous return flow from B to T).
Due to the flow forces acting within the valves, the admissible switching power limits may be considerably lower with only one direction of flow (e. g. from P to A while port B is blocked)!
In such use cases, please consult us
|
Characteristic curve |
Symbol |
|
1 |
E, E1–, M, H, C, D, Y, Q, U, W |
|
2 |
J, L |
|
3 |
A, B |
|
4 |
G, P |
|
5 |
F |
|
6 |
V |
|
7 |
R |
|
8 |
T |
| 1)Example: | |
| Symbol E with spool position "a" → ordering code ..EA.. | |
| Symbol E with spool position “b" → ordering code ..EB.. | |
| 3)Symbol E1-: P → A/B pre-opening | |
| Caution in conjunction with differential cylinders due to pressure intensification! |
Notes!
Representation according to DIN ISO 1219-1.
Hydraulic interim positions are shown by dashes.
|
Type of actuation |
|
Rotary knob “WMDA” |
|
|
|
|

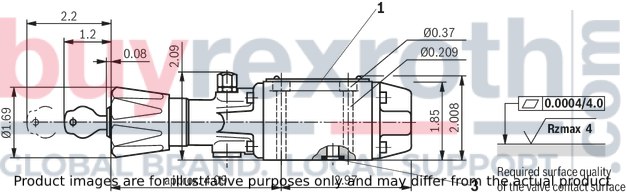

Dimensions in mm

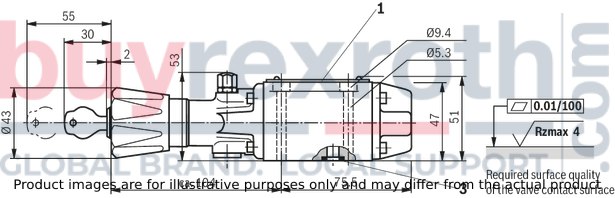

Dimensions in mm
|
1 |
Name plate |
|
3 |
Identical seal rings for ports A, B, P, and T |
Subplates according to data sheet 45052 (separate order)
(without locating hole)
G 341/01 (G1/4)
G 342/01 (G3/8)
G 502/01 (G1/2)
(with locating hole)
G 341/60 (G1/4)
G 342/60 (G3/8)
G 502/60 (G1/2)
G 341/12 (SAE-6)1)
G 342/12 (SAE-8)1)
G 502/12 (SAE-10)1)
1) On request
Valve mounting screws (separate order)
Clamping length 42 mm:4 hexagon socket head cap screws, metric
ISO 4762 - M5 x 50 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
tightening torque MA = 7 Nm ± 10 %,
material no. R913000064
or
4 hexagon socket head cap screws
ISO 4762 - M5 x 50 - 10.9 (self procurement)
(friction coefficient μtotal = 0.12 to 0.17);
tightening torque MA = 8.1 Nm ± 10 %
4 hexagon socket head cap screws UNC
10-24 UNC x 2″ ASTM-A574
(friction coefficient μtotal = 0.19 to 0.24);
tightening torque MA = 11 Nm ± 15 %,
(friction coefficient μtotal = 0.12 to 0.17);
tightening torque MA = 8 Nm ± 10 %,
material no. R978800693
