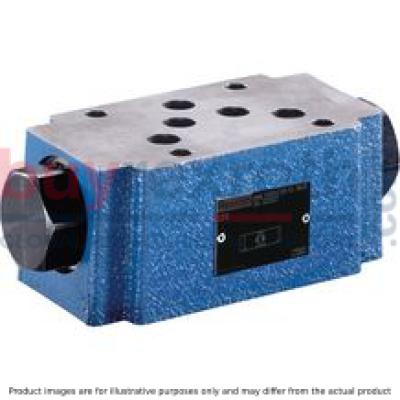

CHECK VALVE SANDWICH PLATE Z2S10A1-3X/
Manufacturer: Bosch Rexroth
Material #: R900407424
Model : Z2S10A1-3X/
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth Z2S10A1-3X (R900407424) is a high-performance, industrial hydraulic sandwich plate valve designed for reliable blocking of oil flow at selected ports. This direct-actuated seat valve features a spool symbol A-A and is mechanically actuated, ensuring precise control over hydraulic circuits. It is capable of handling a maximum pressure with an electrical connection that adheres to the NFPA T3.5.1 R2 D03 and the ISO 4401 porting pattern.
The Z2S10A1-3X valve offers versatility with its free flow in one direction (A to A or B to B) and blocked flow in the opposite direction, making it suitable for applications requiring controlled movement or positioning of hydraulic actuators. Additionally, it includes a preopening feature that allows for damped decompression, mitigating potential switching shocks and reducing wear on system components.
With its various cracking pressures and optional preopening standard, the Z2S10A1-3X guarantees operational safety and longevity. The valve also comes with an option without preopening for specific application requirements. The corrosion-protected design ensures durability even in harsh industrial environments.
This model has a number of ports suitable for multiple hydraulic connections and allows for a maximum flow rate in liters per minute (l/min). It can be used as an interim assembly in vertical stackings and is compatible with several types of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC.
Designed to meet industry standards for size and connection diagrams, the Bosch Rexroth Z2S10A1-3X valve is available with individual check valve installation sets. Its compact size allows easy integration into existing systems while providing robust performance essential for modern hydraulic applications.
$492.00 USD
More are expected on March 17, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as March 17, 2025 when ordered in
This product is eligible for factory repair.
Size 10, A1 → A2, mechanically actuated
Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow at selected ports.
Unpacked Weight: 2.64 kg
Sandwich plate valve for use in vertical stackings Porting pattern according to ISO 4401-05-04-0-05 and ISO 4401-05-05-0-05 For the leakage-free blocking of one or two actuator ports, optional Various cracking pressures With pre-opening (standard); without pre-opening (optional) Check valve installation sets available individually Corrosion-protected design
The isolator valve type Z2S is a releasable check valve in sandwich plate design.
It is used for the leakage-free blocking of one or two actuator ports, also in case of longer standstill times.
In direction A① to A② or B① to B②, there is a free flow; in the opposite direction, the flow is blocked.
If, for example, there is a flow through the valve in direction A① to A②, the control spool (1) is moved in the direction of the B side, opens the ball seat valve (2) and then pushes the poppet (3) off its seat. Hydraulic fluid can now flow from B➁ to B➀.
In order to allow the ball seat valve (2) to be safely closed, the control spool (1) must be hydraulically unloaded (see circuit example).
Pre-opening
Due to the pre-opening, there is a damped decompression of the pressurized liquid. Thus, possible switching shocks are avoided. The two-stage set-up with an increased control open ratio means even low pilot pressure can be unloaded securely.Type Z2S 10 ‒… (with pre-opening)
Type Z2S 10 A…
Type Z2S 10 A…SO40
Type Z2S 10 A…SO60
Type Z2S 10 ‒…SO41 (without pre-opening)
Type Z2S 10 ‒…SO14
Circuit example, schematic
|
1 |
Control spool, area A2 |
|
2 |
Ball, area A3 |
|
4 |
Poppet, area A1 |
|
5 |
Stop |
|
6 |
Control spool, area A4 |
|
① |
component side |
|
② |
plate side |
Notice:
In valves without pre-opening, sudden unloading of pent-up pressure volume may occur. Resulting switching shocks may lead to premature wear on installed components, as well as noise formation.
Notice:
Deviating from ISO 4401, port T is in this data sheet called TA, port T1 is called TB.
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves
|
① |
component side |
|
② |
plate side |
Version "A"
Version “-”, “-...SO41” and “-...SO14”
Version "B"
Version "A…SO40"
Version "A…SO60"
Version “-...SO150”
Version "A3...QMA"
Version "B3...QMB"
Notice:
Deviating from ISO 4401, port T is in this data sheet called TA, port T1 is called TB.
Inductive position switch type QM
The electrical connection is realized via a 4-pole mating connector (separate order, see "Accessories") with connection thread M12 x 1.
|
Connection voltage: |
24 V +30 %/-15 %, direct voltage |
|
|
Admissible residual ripple: |
≤ 10 % |
|
|
Load capacity: |
maximum 400 mA |
|
Switching outputs:
|
PNP transistor outputs, load between switching outputs and GND |
|
Pinout:
|
1 |
+24 V |
|
2 |
Switching output: 400 mA |
|
|
3 |
0 V, GND |
|
|
4 |
Switching output: 400 mA |
|
Switching logics
Dimensions in mm
|
|
Required surface quality of the valve contact surface |
|
Type |
L1 |
L2 |
|
mm |
mm |
|
| Z2S 10 ...ohne Bez. | 13.5 | 13.5 |
| Z2S 10 ...SO14 | 13.5 | 38.5 |
| Z2S 10 A...SO40 | 6.5 | 13.5 |
| Z2S 10 B...SO40 | 13.5 | 6.5 |
| Z2S 10 ...SO41 | 13.5 | 13.5 |
| Z2S 10 ...SO60 | 13.5 | 13.5 |
| Z2S 10 ...SO150 | 13.5 | 13.5 |
|
① |
component side |
|
② |
plate side |
|
1 |
Name plate |
|
2 |
Through hole for valve mounting |
|
3 |
Identical seal rings for ports A, B, P, TA and TB |
|
4 |
Plug screw SW30, tightening torque MA = 40+5 Nm |
|
5.1 |
Version with position switch “QMA” (for circuitry refer to "Electrical connection") |
|
5.2 |
Version with position switch “QMB” (for circuitry refer to "Electrical connection") |
|
6 |
Porting pattern according to ISO 4401-05-04-0-05, ISO 4401-05-05-0-05; deviating from ISO 4401, port T is referred to with TA and port T1 is referred to with TB in this data sheet. |
Valve mounting screws (separate order)
|
Size |
Quantity |
Hexagon socket head cap screws |
Material number |
|
10 |
4 |
ISO 4762 - M6 10.9 |
- |
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1
4P Z24
Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1
4P Z24
For sensors and valves with connector “K24”, “K35” and “K72” Mating connectors M12, 4-pole, line cross-section 0.75 mm2Data sheet
Spare parts & repair
Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1, with assembled connection line
4P Z24 +
Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1, with assembled connection line
4P Z24 +
For sensors and valves with connector “K24”, “K35” and “K72” Mating connectors M12, 4-pole, line cross-section 0.75 mm2Data sheet
Spare parts & repair
