3WMDA6B5X/F
Manufacturer: Bosch Rexroth
Material #: R900372736
Model : 3WMDA6B5X/F
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

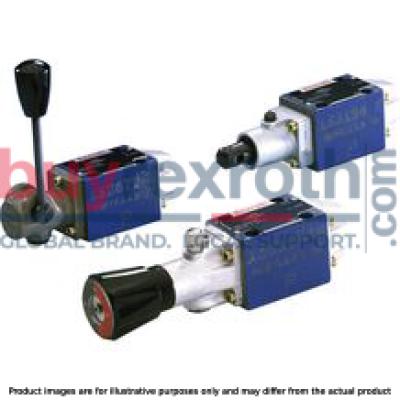

The Bosch Rexroth 3WMDA6B5X/F (R900372736) is a high-quality directional spool valve designed for controlling the start, stop, and direction of fluid flow within a hydraulic system. This particular model is equipped with a lockable rotary knob actuation, allowing for precise manual control over the valve's position. The inclusion of one or two return springs ensures that the control spool returns to its central or starting position when the actuation is not engaged.
This valve comes with a detent feature, which allows each spool position to be securely locked in place once selected. This is particularly useful in applications where maintaining a specific flow direction is critical. Additionally, the 3WMDA6B5X/F can be fitted with a throttle insert if necessary to manage flows that exceed the performance limit of the valve during switching processes. This insert would be placed in channel P to regulate flow effectively.
Designed according to DIN form A standards without locating holes and ISO standards with locating holes, this valve offers flexibility for various mounting requirements. The 3WMDA6B5X/F operates as a 2-way or 3-way version and supports maximum operating pressures up to 350 bar and maximum flow rates up to 60 liters per minute.
Furthermore, this model can accommodate inductive position switches and proximity sensors for contactless detection of the spool's position, enhancing operational accuracy and system feedback capabilities. With its robust design and reliable performance, the Bosch Rexroth 3WMDA6B5X/F directional spool valve is an essential component for efficient hydraulic system operation.
$1,042.00 USD
More are expected on March 4, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as March 4, 2025 when ordered in
This product is eligible for factory repair.
Type WM.. valves are mechanical, manually actuated directional spool valves. They control the start, stop and direction of a flow. Directional valves basically consist of housing (1), one type of actuation (2) (lockable rotary knob), control spool (3) and one or two return springs (4). In de-energized state, the return springs (4) maintain the control spool (3) in central or starting position - if the rotary knob is actuated with a detent. The control spool (3) is moved to the desired spool position by means of the type of actuation (2).
Detent
Directional valves with rotary knob are generally designed with detent. Directional valves with hand lever are optionally available as 2 or 3 position valves with detent. Directional valves with roller plunger are generally designed without detent. If types of actuation with detent are used, each spool position can be locked, depending on the valve type.
Throttle insert
The use of a throttle insert is required when due to prevailing operating conditions, flows can occur during the switching processes, which exceed the performance limit of the valve. It is inserted in channel P of the directional valve.
Type 4WMDA 6 E5X/F
Type 4WM. 6 ..5X/..B..
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves
|
7 |
Symbol “R” in spool position "b" (A → B) |
|
8 |
Symbols “G” and “T” in central position (P → T) |
|
Symbols |
Direction of flow |
|||
|
P-A |
P-B |
A-T |
B-T |
|
|
A |
3 |
3 |
– |
– |
|
B |
3 |
3 |
– |
– |
|
C |
1 |
1 |
3 |
1 |
|
D |
5 |
5 |
3 |
3 |
|
E |
3 |
3 |
1 |
1 |
|
F |
1 |
3 |
1 |
1 |
|
G |
6 |
6 |
9 |
9 |
|
H |
2 |
4 |
2 |
2 |
|
J |
1 |
1 |
2 |
1 |
|
L |
3 |
3 |
4 |
9 |
|
M |
2 |
4 |
3 |
3 |
|
P |
3 |
1 |
1 |
1 |
|
Q |
1 |
1 |
2 |
1 |
|
R |
5 |
5 |
4 |
– |
|
T |
10 |
10 |
9 |
9 |
|
U |
3 |
3 |
9 |
4 |
|
V |
1 |
2 |
1 |
1 |
|
W |
1 |
1 |
2 |
2 |
|
Y |
5 |
5 |
3 |
3 |
Performance limits
(measured with HLP46, ϑOil = 40 ±5 °C)
Notice!
The specified switching power limits are valid for use with two directions of flow (e. g. from P to A and simultaneous return flow from B to T).
Due to the flow forces acting within the valves, the admissible switching power limits may be considerably lower with only one direction of flow (e. g. from P to A while port B is blocked)!
In such use cases, please consult us
|
Characteristic curve |
Symbol |
|
1 |
E, E1–, M, H, C, D, Y, Q, U, W |
|
2 |
J, L |
|
3 |
A, B |
|
4 |
G, P |
|
5 |
F |
|
6 |
V |
|
7 |
R |
|
8 |
T |
| 1)Example: | |
| Symbol E with spool position "a" → ordering code ..EA.. | |
| Symbol E with spool position “b" → ordering code ..EB.. | |
| 3)Symbol E1-: P → A/B pre-opening | |
| Caution in conjunction with differential cylinders due to pressure intensification! |
Notes!
Representation according to DIN ISO 1219-1.
Hydraulic interim positions are shown by dashes.
|
Type of actuation |
|
Rotary knob “WMDA” |
|
|
|
|
Dimensions in mm
Dimensions in mm
|
1 |
Name plate |
|
3 |
Identical seal rings for ports A, B, P, and T |
Subplates according to data sheet 45052 (separate order)
(without locating hole)
G 341/01 (G1/4)
G 342/01 (G3/8)
G 502/01 (G1/2)
(with locating hole)
G 341/60 (G1/4)
G 342/60 (G3/8)
G 502/60 (G1/2)
G 341/12 (SAE-6)1)
G 342/12 (SAE-8)1)
G 502/12 (SAE-10)1)
1) On request
Valve mounting screws (separate order)
Clamping length 42 mm:4 hexagon socket head cap screws, metric
ISO 4762 - M5 x 50 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
tightening torque MA = 7 Nm ± 10 %,
material no. R913000064
or
4 hexagon socket head cap screws
ISO 4762 - M5 x 50 - 10.9 (self procurement)
(friction coefficient μtotal = 0.12 to 0.17);
tightening torque MA = 8.1 Nm ± 10 %
4 hexagon socket head cap screws UNC
10-24 UNC x 2″ ASTM-A574
(friction coefficient μtotal = 0.19 to 0.24);
tightening torque MA = 11 Nm ± 15 %,
(friction coefficient μtotal = 0.12 to 0.17);
tightening torque MA = 8 Nm ± 10 %,
material no. R978800693
