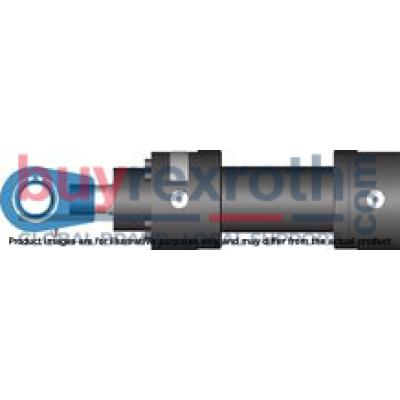

SWIVEL HEAD CGKD 25 K&

Manufacturer: Bosch Rexroth

Material #: R900323332

Model : SWIVEL HEAD CGKD 25 K&

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth SWIVEL HEAD CGKD 25 KPL. (R900323332) is a precision-engineered component designed for use in a variety of mechanical and industrial applications. This swivel head is part of Bosch Rexroth's extensive line of motion technology products, known for their durability and performance. The CGKD 25 KPL. model code indicates that this swivel head belongs to a series that is well-suited for tasks requiring rotational movement with high degrees of freedom. The product's capabilities include providing pivotal connections between moving parts, which is essential in achieving precise and smooth articulation in machinery. It is often utilized in systems where there is a need to transmit force or motion through an angle, such as in hydraulic or pneumatic cylinders, ensuring reliable operation under varying loads and conditions. The robust design of the SWIVEL HEAD CGKD 25 KPL. ensures it can withstand the rigors of industrial environments while maintaining accurate alignment and functionality. With its specific material number R900323332, customers can be assured they are getting the exact part required for their needs, minimizing the risk of compatibility issues or performance discrepancies. Bosch Rexroth's commitment to quality means that this swivel head has been manufactured to meet stringent standards, ensuring longevity and optimal performance throughout its service life. In summary, the Bosch Rexroth SWIVEL HEAD CGKD 25 KPL. (R900323332) offers a reliable solution for applications that demand precise movement and high-quality rotational joints. Its construction reflects Bosch Rexroth's reputation for producing durable and efficient components that cater to a wide range of industrial requirements.

$163.17 USD

More are expected on January 13, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as January 13, 2025 when ordered in

For applications outside these parameters, please consult us!

Dimensions: Swivel head CGKD (clampable)

ISO 8132

1)	Lubricating nipple, cone head form A according to DIN 71412
2)	Related bolt Ø m6

Dimensions: Swivel head CGKD (clampable)

ØAL	ØMM	Type	Suitable for series	Nominal force	AV	N	CH		EF	ØCN		EN		EU	KK	LF	Clamping screw	MA 3)	m 4)	C0 5)	Fadm 6)
					min.	max.			max.	2)				max.		min.	ISO 4762-10.9
mm				kN	mm	mm	mm		mm	mm		mm		mm		mm		Nm	kg	kN	kN
25	14 mm / -	CGKD 12 1)	CDM1 CGM1 CSM1 - - - -	8	17	19	38	js13	16.5	12	H7	12	h12	11	M12 x 1.25	13	M5 x 16	6	0.1	24.5	9
25	18 mm / -	CGKD 12 1)	CDM1 CGM1 CSM1 - - - -	8	17	19	38	js13	16.5	12	H7	12	h12	11	M12 x 1.25	13	M5 x 16	6	0.1	24.5	9
25	18 mm / -	CGKD 16	CDM1 CGM1 CSM1 - - - -	12.5	19	22	44	js13	20.5	16	H7	16	h12	14	M14 x 1,5	16.5	M6 x 14	10	0.2	36.5	13.5
32	18 mm / -		CDM1 CGM1 CSM1 - - - -	12.5	19	22	44	js13	20.5	16	H7	16	h12	14	M14 x 1,5	16.5	M6 x 14	10	0.2	36.5	13.5
32	22 mm / -		CDM1 CGM1 CSM1 - - - -	12.5	19	22	44	js13	20.5	16	H7	16	h12	14	M14 x 1,5	16.5	M6 x 14	10	0.2	36.5	13.5
32	22 mm / -	CGKD 20	CDM1 CGM1 CSM1 - - - -	20	23	28	52	js13	25	20	H7	20	h12	17.5	M16 x 1.5	20.5	M8 x 20	25	0.35	48	17.7
40	22 mm / -		CDM1 CGM1 CSM1 CDL2 - - -	20	23	28	52	js13	25	20	H7	20	h12	17.5	M16 x 1.5	20.5	M8 x 20	25	0.35	48	17.7
40	28 mm / -		CDM1 CGM1 CSM1 - - - -	20	23	28	52	js13	25	20	H7	20	h12	17.5	M16 x 1.5	20.5	M8 x 20	25	0.35	48	17.7
40	25 mm / -	CGKD 25	CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2	32	29	31	65	js13	32	25	H7	25	h12	22	M20 x 1.5	25.5	M8 x 20	30	0.65	78	28.8
40	28 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	32	29	31	65	js13	32	25	H7	25	h12	22	M20 x 1.5	25.5	M8 x 20	30	0.65	78	28.8
50	28 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2	32	29	31	65	js13	32	25	H7	25	h12	22	M20 x 1.5	25.5	M8 x 20	30	0.65	78	28.8
50	36 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	32	29	31	65	js13	32	25	H7	25	h12	22	M20 x 1.5	25.5	M8 x 20	30	0.65	78	28.8
50	32 mm / -	CGKD 32	CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2	50	37	38	80	js13	40	32	H7	32	h12	28	M27 x 2	30	M10 x 25	59	1.15	114	42.1
50	36 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	50	37	38	80	js13	40	32	H7	32	h12	28	M27 x 2	30	M10 x 25	59	1.15	114	42.1
63	36 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2	50	37	38	80	js13	40	32	H7	32	h12	28	M27 x 2	30	M10 x 25	59	1.15	114	42.1
63	45 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	50	37	38	80	js13	40	32	H7	32	h12	28	M27 x 2	30	M10 x 25	59	1.15	114	42.1
63	40 mm / -	CGKD 40	CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2	80	46	47	97	js13	50	40	H7	40	h12	34	M33 x 2	39	M10 x 30	59	2.1	204	75.3
63	45 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	80	46	47	97	js13	50	40	H7	40	h12	34	M33 x 2	39	M10 x 30	59	2.1	204	75.3
80	45 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2	80	46	47	97	js13	50	40	H7	40	h12	34	M33 x 2	39	M10 x 30	59	2.1	204	75.3
80	56 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	80	46	47	97	js13	50	40	H7	40	h12	34	M33 x 2	39	M10 x 30	59	2.1	204	75.3
80	50 mm / -	CGKD 50	CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2	125	57	58	120	js13	63	50	H7	50	h12	42	M42 x 2	47	M12 x 35	100	4	310	114.4
80	56 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	125	57	58	120	js13	63	50	H7	50	h12	42	M42 x 2	47	M12 x 35	100	4	310	114.4
100	56 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2	125	57	58	120	js13	63	50	H7	50	h12	42	M42 x 2	47	M12 x 35	100	4	310	114.4
100	70 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	125	57	58	120	js13	63	50	H7	50	h12	42	M42 x 2	47	M12 x 35	100	4	310	114.4
100	36 mm / -	CGKD 63	CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2	200	64	70	140	js13	72.5	63	H7	63	h12	53.5	M48 x 2	58	M16 x 40	250	7.2	430	158.7
100	70 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	200	64	70	140	js13	72.5	63	H7	63	h12	53.5	M48 x 2	58	M16 x 40	250	7.2	430	158.7
125	70 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2	200	64	70	140	js13	72.5	63	H7	63	h12	53.5	M48 x 2	58	M16 x 40	250	7.2	430	158.7
125	90 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	200	64	70	140	js13	72.5	63	H7	63	h12	53.5	M48 x 2	58	M16 x 40	250	7.2	430	158.7
125	80 mm / -	CGKD 80	CDH2 CGH2 CSH2 CDL2 - - -	320	86	91	180	js13	92	80	H7	80	h12	68	M64 x 3	74	M20 x 50	490	15	695	265.5
125	90 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	320	86	91	180	js13	92	80	H7	80	h12	68	M64 x 3	74	M20 x 50	490	15	695	265.5
160	90 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	320	86	91	180	js13	92	80	H7	80	h12	68	M64 x 3	74	M20 x 50	490	15	695	265.5
160	110 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	320	86	91	180	js13	92	80	H7	80	h12	68	M64 x 3	74	M20 x 50	490	15	695	265.5
140	90 mm / -	CGKD 90	CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	400	91	100	195	js13	101	90	H7	90	h12	72	M72 x 3	85	M20 x 60	490	19	750	276.8
140	100 mm / -	CGKD 90	CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	400	91	100	195	js13	101	90	H7	90	h12	72	M72 x 3	85	M20 x 60	490	19	750	276.8
160	100 mm / -	CGKD 100	CDH2 CGH2 CSH2 CDL2 - - -	500	96	110	210	js13	114	100	H7	100	h12	85.5	M80 x 3	94	M24 x 60	840	25.5	1060	391.1
160	110 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	500	96	110	210	js13	114	100	H7	100	h12	85.5	M80 x 3	94	M24 x 60	840	25.5	1060	391.1
200	110 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	500	96	110	210	js13	114	100	H7	100	h12	85.5	M80 x 3	94	M24 x 60	840	25.5	1060	391.1
200	140 mm / -		CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	500	96	110	210	js13	114	100	H7	100	h12	85.5	M80 x 3	94	M24 x 60	840	25.5	1060	391.1
180	110 mm / -	CGKD 110	CDH2 CGH2 CSH2 - - - -	635	106	125	235	js13	129	110	H7	110	h12	88	M90 x 3	105	M24 x 60	840	36.5	1200	442.8
180	125 mm / -	CGKD 110	CDH2 CGH2 CSH2 - - - -	635	106	125	235	js13	129	110	H7	110	h12	88	M90 x 3	105	M24 x 60	840	36.5	1200	442.8
200	125 mm / -	CGKD 125	CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 CDL2	800	113	135	260	js13	160	125	H7	125	h12	105	M100 x 3	116	M24 x 70	840	52.5	1430	442.8
200	140 mm / -	CGKD 125	CDH2 CGH2 CSH2 CDM1 CGM1 CSM1 -	800	113	135	260	js13	160	125	H7	125	h12	105	M100 x 3	116	M24 x 70	840	52.5	1430	527.7
220	140 mm / -	CGKD 160	CDH2 CGH2 CSH2 - - - -	1520	126	165	310	js13	200	160	H7	160	h12	133	M125 x 4	145	M24 x 80	840	82.5	2200	527.7
220	160 mm / -		CDH2 CGH2 CSH2 - - - -	1520	126	165	310	js13	200	160	H7	160	h12	133	M125 x 4	145	M24 x 80	840	82.5	2200	811.8
250	160 mm / -		CDH2 CGH2 CSH2 - - - -	1520	126	165	310	js13	200	160	H7	160	h12	133	M125 x 4	145	M24 x 80	840	82.5	2200	811.8
250	180 mm / -		CDH2 CGH2 CSH2 - - - -	1520	126	165	310	js13	200	160	H7	160	h12	133	M125 x 4	145	M24 x 80	840	82.5	2200	811.8
280	180 mm / -	CGKD 200	CDH2 CGH2 CSH2 - - - -	2000	161	215	390	js13	250	200	H7	200	h12	165	M160 x 4	190	M30 x 100	1700	168	3650	1346.9
280	200 mm / -		CDH2 CGH2 CSH2 - - - -	2000	161	215	390	js13	250	200	H7	200	h12	165	M160 x 4	190	M30 x 100	1700	168	3650	1346.9
320	200 mm / -		CDH2 CGH2 CSH2 - - - -	2000	161	215	390	js13	250	200	H7	200	h12	165	M160 x 4	190	M30 x 100	1700	168	3650	1346.9
320	220 mm / -		CDH2 CGH2 CSH2 - - - -	2000	161	215	390	js13	250	200	H7	200	h12	165	M160 x 4	190	M30 x 100	1700	168	3650	1346.9

1)	Bearing cannot be re-lubricated
2)	Related bolt Ø m6
3)	MA = tightening torqueThe swivel head must always be screwed against the shoulder of the piston rod. Afterwards, the clamping screws must be tightened with the specified tightening torque.
4)	m = weight of swivel head
5)	C0 = static load rating of the swivel head
6)	Fadm = max. admissible load of the swivel head for increasing or alternating loads

ØAL	=	Piston Ø
ØMM	=	Piston rod Ø

Notice:

Geometry and dimensions may differ depending on the manufacturer. In case of combination with other mounting elements, the usability must be checked.
