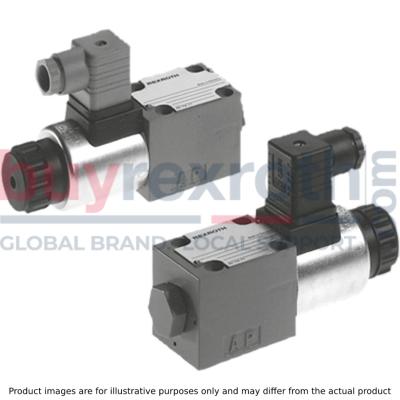

POPPET DIRECTIONAL VALVE M-3SED6CK1X/350CG96N9K4/B12

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth M-3SED6CK1X/350CG96N9K4/B12 (R900224548) is a high-performance industrial hydraulic valve designed for reliable switching of oil flow direction. Featuring a size 6, this valve comes with the spool symbol CK and is electrically operated with a solenoid. The valve has an integrated throttle insert nozzle with a diameter of . mm in channel P, ensuring precise control over the fluid flow. It is direct actuated and includes both concealed manual override and auxiliary actuation for enhanced operational flexibility. The M-3SED6CK1X/350CG96N9K4/B12 valve belongs to component series X, which signifies its advanced design and robustness. This seat valve can withstand a maximum pressure and is equipped with an electrical connection that includes a connector pole PE conforming to EN standards. Its product group ID encompasses numerous features such as the number of ports and type of actuation, which in this case, is solenoid actuation. This model adheres to CE conformity according to the Low Voltage Directive of the EU and also holds CSA approval according to CSA C. No. 0-14 standards. The electrical connector provided is again a connector pole PE designed for optimal electrical integration. The max flow rate through the valve can be efficiently managed due to its subplate mounting design, conforming to both NFPA T3.5.1 R2 D03 Size 6 CETOP D and ISO connection diagrams. The supply voltage required for operation is 24 VDC, and it has multiple switching positions for varied applications. Weighing in at . kg, it utilizes NBR seals compatible with hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC types. This makes the Bosch Rexroth M-3SED6CK1X/350CG96N9K4/B12 valve an essential component for sophisticated hydraulic systems requiring precise control and reliability in various operational conditions.
