2FRM6A76-3X/16QRV

Manufacturer: Bosch Rexroth

Material #: R900208589

Model : 2FRM6A76-3X/16QRV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

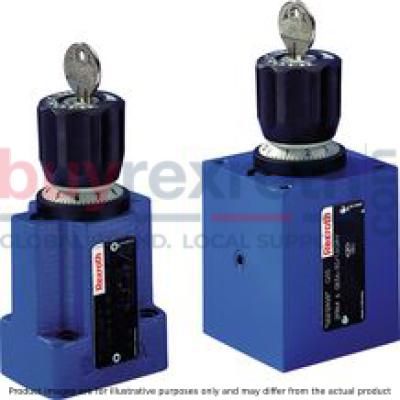

The Bosch Rexroth 2FRM6A76-3X/16QRV (R900208589) is a high-performance flow control valve designed to maintain consistent flow regardless of pressure and temperature fluctuations. This model features a sturdy housing, a rotary knob for adjustments, an orifice bush, and a pressure compensator, with the addition of an optional check valve for enhanced functionality. Specifically engineered to provide precise flow regulation, the 2FRM6A76-3X/16QRV valve offers external closing capabilities through channel P, allowing for the pressure compensator to be held in a closed position. This unique feature ensures that startup jumps are avoided and enables supply control applications with smooth transitioning. The external closing function is particularly useful when paired with directional valves that facilitate flow from P to B. For applications requiring free return flow from B to A, this model incorporates the optional check valve that allows for unidirectional flow. The valve also comes with various adjustment options such as a rotary knob with scale and a lockable rotary knob with scale, providing users with precise control over the flow settings. Designed in accordance with DIN form A for porting patterns, this unit requires separate order subplates for mounting. It is capable of operating at maximum pressures up to bar and can handle maximum flows up to l/min. The Bosch Rexroth 2FRM6A76-3X/16QRV is an essential component for systems requiring reliable and accurate flow control.

$1,086.00 USD

More are expected on February 27, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as February 27, 2025 when ordered in

This product is eligible for factory repair.

Start Repair

Porting pattern according to DIN 24340 form A Subplates (separate order) External closing of the pressure compensator Check valve, optional 2 adjustment types, optional:
– Rotary knob with scale
– Lockable rotary knob with scale

General information

The flow control valve type 2 FRM is a 2-way flow control valve.

It is used for maintaining a constant flow, independent of pressure and temperature.

The valve basically consists of housing (1), rotary knob (2), orifice bush (3), pressure compensator (4) and an optional check valve (8).

Flow control valve type 2FRM 6 A…RV

(with external closing, with check valve)

In principle, the function of this valve is the same as that of valve type 2FRM 6 B…MV.

However, the flow control valve is provided with the possibility of an external closing of the pressure compensator (4) via channel P (9). The external pressure acting in channel P (9) via orifice (10), holds the pressure compensator (4) in closed position against the compression spring (6). When the connected directional valve (11) is switched over to permit flow from P to B, control is achieved as with type 2FRM 6 B. Thus, a start-up jump is avoided.

The version with pressure compensator closing can only be used for supply control.

The free return flow from channel B to channel A is directed via the check valve (8).

Attention!

The pressure loss of port P upstream of the directional valve to port A upstream of the flow control valve makes itself felt by a reduced flow.

Type 2FRM 6 A76-3X/..RV

01	02	03	04	05		06		07	08	09	10
2FRM	6			6	–	3X	/			V	*

01	2-way flow control valve	2FRM
02	Size 6	6
03	with closing of the pressure compensator (suppression of the start-up jump)	A
Adjustment type
04	Lockable rotary knob with scale 1)	3
04	Rotary knob with scale	7
05	Zero position of the marking at port P	6
06	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)	3X
Flow (A → B)
07	up to 0.2 l/min	0,2Q
	up to 0.6 l/min	0,6Q
	up to 1.5 l/min	1,5Q
	up to 3.0 l/min	3Q
	up to 6.0 l/min	6Q
	up to 10 l/min	10Q
	up to 16 l/min	16Q
	up to 25.0 l/min	25Q
	up to 32.0 l/min	32Q
08	With check valve	R
08	Without check valve	M
Seal material
09	FKM seals (other seals upon request)	V
09	Observe compatibility of seals with hydraulic fluid used.
10	Further details in the plain text	*

	1) Key with material no. R900008158 is included in the scope of delivery.

Preferred types and standard units are contained in the EPS (standard price list).

general

Size		6
Weight (approx.)	kg	1.3
Installation position		any
Ambient temperature range	°C	-20 … +50

hydraulic

Size			6
Maximum operating pressure 1)	Anschluss A	bar	315
Pressure differential Δp with free return flow B → A			See characteristic curves
Minimum pressure differential		bar	6 … 14
Pressure stable (qV max) to Δp = 315 bar		%	± 2
Maximum flow		l/min	0.2	0.6	1.5	3	6	10	16	25	32
Minimum flow	up to 100 bar	l/min	0.01				0.03	0.05	0.07	0.1	0.25
Minimum flow	up to 315 bar	l/min	0.03					0.05	0.07	0.1	0.05
Hydraulic fluid			Mineral oil (HL, HLP) according to DIN 51524, other hydraulic fluids on request
Hydraulic fluid temperature range		°C	-20 … +80
Viscosity range		mm²/s	10 … 800
Maximum admissible degree of contamination of the hydraulic fluid 2)			Class 20/18/15 according to ISO 4406 (c)

1)	In applications with rectifier sandwich plate up to 210 bar
2)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

For applications outside these parameters, please consult us!

(measured with HLP46, ϑOil = 40 ±5 °C)

Flow dependent on the scale setting (flow control A → B)

Δp-qV characteristic curve via check valve (B → A) orifice closed

pE-qV characteristic curve

Temperature dependency at Δp = 20 bar

	simplified	Detailed
without check valve; with external closing Type 2FRM 6 A…MV
with check valve; with external closing Type 2FRM 6 A…RV

Subplate mounting – version “A” and “B”

Dimensions in mm

1	Adjustment type "3" (lockable rotary knob with scale)
2	Adjustment type "7" (rotary knob with scale)
3	Identical seal rings for ports A, B, P, and T
4	Space required to remove the key
5	Bore Ø3 mm at version "B" not bored (without external closing)
6	Name plate
7	Position of the marking at port P
8	Porting pattern according to DIN 24340 form A

Subplate mounting:

Valve mounting screws (separate order)

without rectifier sandwich plate

4 hexagon socket head cap screws

ISO 4762 - M5 x 30 - 10.9-flZn-240h-L

at friction coefficient μtotal = 0.09 to 0.14,

Tightening torque MA = 7 Nm ± 10 %,

Material no. R913000316

with rectifier sandwich plate

4 hexagon socket head cap screws

ISO 4762 - M5 x 70 - 10.9-flZn-240h-L

at friction coefficient μtotal = 0.09 to 0.14,

Tightening torque MA = 7 Nm ± 10 %,

Material no. R913000325

Subplates (separate order)

Type G 341/01 (G1/4)

Type G 342/01 (G3/8)

Type G 502/01 (G1/2)
