PRESSURE RELIEF VALVE DBDS2K2X/100

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

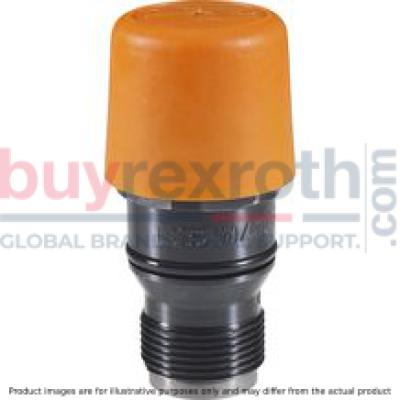

The Bosch Rexroth DBDS2K2X/100 (R900203851) is a high-performance, industrial hydraulic valve designed for reliable pressure limitation to a predefined setting value. This direct-actuated pressure relief valve is intended for block design installations and serves the purpose of system pressure limitation. The adjustment type allows for precise setting of the system pressure. Constructed with a hexagon screw featuring a protective cap, the DBDS2K2X/100 ensures secure and safe operation. It boasts a maximum pressure rating of 350 bar and is equipped with P T spool symbols indicating the ports for pressure and tank lines. The valve's number of ports, type of actuation (mechanical), size, max flow rate, and type of connection (screw-in cartridge valve) are specified to meet rigorous application requirements. Weighing in at .9 kilograms, this model is designed to be robust yet compact. It utilizes NBR seals compatible with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC types. In terms of functionality, when the system pressure exceeds the set value on the compression spring via control line and ball mechanism, the valve allows hydraulic fluid to flow into the main port T from main port P. The DBDS2K2X/100 belongs to Component series X which signifies its modern design iteration. Its maximum operating pressure capability reaches up to 350 bar with a maximum flow rate capacity that accommodates different industrial applications' demands. For user convenience and security in settings adjustment, this model offers several options: hexagon with protective cap; rotary knob with scale; lockable rotary knob with scale; or hand wheel adjustments. Overall, the Bosch Rexroth DBDS2K2X/100 (R900203851) represents a reliable solution for hydraulic systems requiring precise pressure control within an efficient and durable package.
