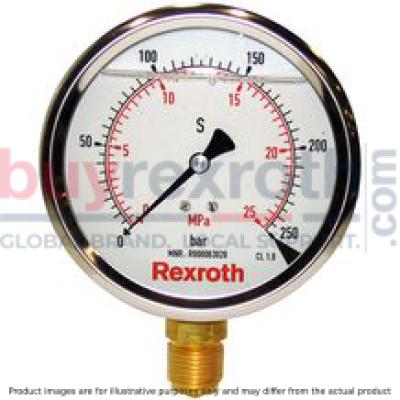

PRESSURE GAUGE ABZMM 63- 100BAR/MPA-U/V-G

Manufacturer: Bosch Rexroth

Material #: R900051035

Model : ABZMM 63- 100BAR/MPA-U/V-G

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth ABZMM 63-100BAR/MPA-U/V-G (R900051035) is a high-quality pressure gauge designed for accurately measuring and displaying pressure within hydraulic systems. This robust instrument adheres to the EN standard, ensuring reliable performance in various applications. The housing of the gauge is constructed from durable stainless steel, making it suitable for challenging industrial environments. With a dual-scale display, it offers readings in both bar and MPa units, providing versatility for different measurement preferences. The bicolored scale enhances readability under varying light conditions. The ABZMM 63-100BAR/MPA-U/V-G is filled with fluid to dampen vibrations and pulsations, which helps maintain the integrity of the readings and prolongs the lifespan of the gauge. The device features a maximum pressure capacity that ensures it can handle demanding applications without compromising accuracy or performance. It comes with a bottom connection point and includes a fitting that facilitates easy installation into hydraulic systems. Depending on installation requirements, users can mount the gauge using screws or brackets. This model is compatible with a range of hydraulic fluids including HLP, HFC, HFDR, HFDU, HETG, HEES, and HEPG, making it flexible for use with different types of hydraulic media. Its design considers both functionality and ease of use—whether for routine monitoring or critical pressure measurements in complex hydraulic circuits. In summary, the Bosch Rexroth ABZMM 63-100BAR/MPA-U/V-G pressure gauge is an essential tool for professionals requiring precise pressure measurements in hydraulic systems across various applications. Its solid construction and thoughtful design underscore its capability to deliver reliable performance in industrial settings.

$40.76 USD

More are expected on April 23, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as April 23, 2025 when ordered in

PRESSURE GAUGE ABZMM 63- 100BAR/MPA-U/V-G

For measuring and displaying pressure in hydraulic systems

Pressure gauge with fluid filling for damping

Unpacked Weight: 0.2 kg

Pressure gauges are pressure measuring instruments for measuring and displaying pressure in hydraulic systems Housing made of stainless steel Design according to standard EN 837-1 Pressure display in bar/MPa or bar/psi Bi-colored scale Measuring connection at the back or bottom Mounting type with screws or brackets

Pressure displayed in bar/MPa
Pressure gauges are pressure measuring instruments for measuring and displaying pressure in hydraulic systems
Design according to standard EN 837-2
Housing made of stainless steel

Data Sheet

Download Data Sheet

Max. pressure	100
Productgroup ID	9,10,11,12,13,14
Connection point	bottom
Type of connection	with fitting
Connection diagram	Male thread G1/4 B
Weight	0.2
Hydraulic fluid	HLP,HFC,HFDR,HFDU,HETG,HEES,HEPG

Ordering code

01	02	03		04	05		06		07	08	09
ABZM	M		‒			‒		/

Power unit accessories
01	Measuring devices	ABZM
Pressure gauge
02	Pressure gauge with bourdon tube	M
Size
03	DN40	40
	DN63	63
	DN100	100
Display range
04	See selection table	…
Version
05	Double scale in pressure range bar and MPa	BAR/MPA
	Double scale in pressure range bar and psi	BAR/PSI
Position of the measuring port
06	On the back side	R
	At the bottom	U
Mounting type
07	With fitting	V
	With mounting bracket	B
Option
08	Without option	‒
	Red marking at the dial, e.g. at 330 bar	330
Pressure gauge filling
09	With glycerin (standard)	G
	With silicone filling as low-temperature version	T

	Order example: Pressure gauge with housing Ø63 mm and double scale with a display range from 0 to 25 bar, measuring port at bottom, without mounting element: ABZMM-63-25 BAR/MPA-U/V-G

Display range
bar	MPa	psi
10	1	145
16	1,6	230
25	2,5	362
40	4	580
60	6	870
100	10	1450
160	16	2320
250	25	3625
400	40	5800
600	60	8700
1000	100	14500

DN40 Connection on the back side		DN63 Port on bottom		DN100 Port on bottom
		DN63 Connection on the back side		DN100 Connection on the back side

Resistance

Hydraulic fluids				Resistant
Mineral oils	Mineral oil	HLP	according to DIN 51524
Flame-resistant hydraulic fluids	Water solutions	HFC	according to VDMA 24317
	Phosphoric acid esters	HFD-R
	Organic esters	HFD-U
Fast bio-degradable hydraulic fluids	Triglycerides (rape seed oil)	HETG	according to VDMA 24568
	Synthetic esters	HEES
	Polyglycols	HEPG
Water	Water
Gases
	Nitrogen (others gases upon request)

For applications outside these parameters, please consult us!

Symbol

Dimensions: Pressure gauge DN40, with dual scale – connection centrally at the rear

Dimensions in mm

1	Bleed or pressure unloading opening

Dimensions: Pressure gauge DN63, with dual scale – connection at the bottom

Dimensions in mm

1	Bleed or pressure unloading opening

Dimensions: Pressure gauge DN63, with dual scale – connection centrally at the rear, with mounting clamp

Dimensions in mm

1	Bleed or pressure unloading opening

Break-through Ø63+1 mm

Mounting bracket is included in the scope of delivery of the pressure gauge.

Design according to the manufacturer’s choice.

Dimensions: Pressure gauge DN100, with dual scale – connection at the bottom

Dimensions in mm

1	Bleed or pressure unloading opening

Dimensions: Pressure gauge DN100, with dual scale – connection eccentrically at the rear, with mounting clamp

Dimensions in mm

1	Bleed or pressure unloading opening

Break-through Ø101+1 mm

Mounting bracket is included in the scope of delivery of the pressure gauge.

Design according to the manufacturer’s choice.

Dimensions: Adapter for direct installation of the pressure gauge

Version "A"

Reducing piece for mounting cavity to ISO 1179

Version "B"

Reducing piece for mounting cavity to ISO 11926-1

Version	PN	d1	d2	Ød3	Ød4	l	l1	l2	SW	Denomination	Part number
				mm	mm	mm	mm	mm
A	630	G1/4A	G1/4	4	19	34	12	14.5	22	REDUZIERSTUECK G1/4-G1/4 /FKM	R901156422
A	400	G1/4A	G1/2	4	19	35	12	16	27	REDUZIERSTUECK G1/4-G1/2 /FKM	R901156423
B	630	7/16-20UNF	G1/4	4	16	31	9	14.5	22	REDUZIERSTUECK 7/16-20UNF-G1/4 /FKM	R901156316
B	400	7/16-20UNF	G1/2	4	16	32	9	16	27	REDUZIERSTUECK 7/16-20UNF-G1/2 /FKM	R901156317

Order example

Reducing piece made of steel, galvanised and yellow-chromated as surface protection G1/4A, female thread = G1/2 with seal ring item 1, material FKM and seal ring item 2, material Cu

REDUZIERSTUECK G1/4-G1/2 /FKM, Material no. R901156423

Spare part: seal ring item 1

Version	Material	Denomination	Part number

A	FKM	PROFILDICHTUNG M14X1,5+G1/4 FKM	R900012502
B	FKM	O-Ring 8,92x1,83-FKM80+-5SH	R900024577

Spare part: Seal ring item 2

For thread d2	Material	Ød5	Ød6	s	Denomination DICHTRING....	Part number
		mm	mm	mm
G1/4	Cu	5.9	9.3	3.2	5,9/9,3X3,2-CU NR:9090800	R900004667
G1/2	Cu	8	14.8	4.2	8,0/14,8X4,2-CU NR:9090819	R900218724

Seal ring for metal sealing. After sealing has been achieved, the pressure gauge can still be turned by 360°, so that any desired position can be set.

Installation information

When assembling the measuring line at the pressure gauge, the pressure gage connection piece (SW14; SW22) is to be held by means of a counter wrench. Bleeding and/or pressure relief openingThe pressure gauges are equipped with bleeding facilities at the top side of the housings. Before commissioning the pressure gauges, the bleeding facilities are to be manually set from the “closed” position to the “open” position in order to avoid measuring errors.

Marking on the dial

On dual scales, the lettering of the outer scale division (bar) is black, that of the inner scale division red.

Note: Single or dual scales for other pressure ranges (psi, kPa, MPa) on request.

1	Part number
2	Accuracy class according to DIN EN 837
3	"REXROTH" logo

Normative cross-reference

DIN EN 837-1

Pressure gauges - part 1: Bourdon tube pressure gauges; dimensions, metrology, requirements and testing

DIN EN 837-2

Pressure gauges - part 2: Selection and installation recommendations for pressure gauges

DIN 51524

Pressure fluids; hydraulic oils

VDMA 24317

Fluid power - flame-retardant hydraulic fluids – technical minimum requirements

VDMA 24568

Fluid power; fast bio-degradable hydraulic fluids; technical minimum requirements;

Safety note according to Pressure Equipment Directive 97/23/EC

Pressure gauges are classified as pressure-holding equipment according to Article 1, Paragraph 2.1.4 of the Pressure Equipment Directive. The volume of the pressurised housings is < 0,1 l.

According to Annex 2, Diagram 4 (fluids) and Diagram 2 (nitrogen) the pressure gauges according to the present data sheet R.50205 are subject to the Pressure Equipment Directive up to PS = 1000 bar. According to Article 3, Paragraph 3 they are manufactured according to "good engineering practice" and are not CE-marked.

Use in potentially explosive atmospheres according to Directive 94/9/EC (ATEX)

The pressure gauges are provided with stainless steel housings which cannot generate igniting sparks according to DIN EN 13463-5.

The maximum surface temperature depends not on the pressure gauges, but mainly on the relevant fluid temperature and must therefore be assessed within the risk analysis of the power unit/block.

Because the pressure gauge according to the present data sheet R.50205 do not include any potential sources of ignition, they do not fall under the ATEX Directive and are not CE-marked.
