TRANSECTIONMODEL TW-HC-XM-DB 20-1-5X

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

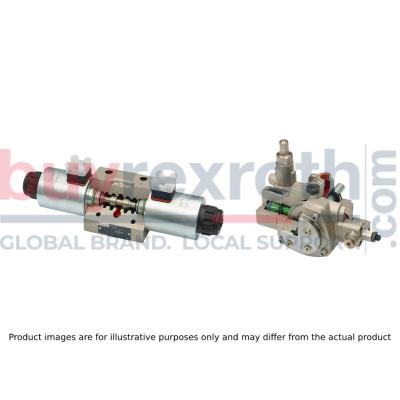

The Bosch Rexroth TRANSECTIONMODEL TW-HC-XM-DB 20-1-5X (R900018206) is a meticulously crafted cutaway model of a pressure relief valve designed to provide an in-depth look into the component's internal mechanisms. This educational tool is derived from actual industrial components, ensuring authenticity in form and function. It serves as an invaluable resource for understanding the technical functionality of pressure relief valves. The model showcases additional coloring of channels, bores, and chambers which highlights the flow paths and operational processes within the valve, enhancing the visual learning experience. The weight and dimensions are identical to the original equipment, providing a realistic representation of the valve's physical characteristics. The cutaway sections are precisely engineered to expose critical aspects related to its function without compromising on structural integrity. This allows observers to see how each part interacts during operation. Furthermore, because it retains moving elements such as the housing, cover, and plugs that match those of a working valve, users can manually actuate these parts to simulate real-world applications. This interactive aspect of the Bosch Rexroth cutaway model supports educators and technicians in explaining how pressure relief valves operate within hydraulic systems. It is especially useful for training purposes where tactile engagement and visual demonstration can significantly enhance comprehension. Overall, this model serves as an exceptional teaching aid for those looking to gain deeper insights into hydraulic component design and functionality.
