T-SLOT STONE N10 M4 ...

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

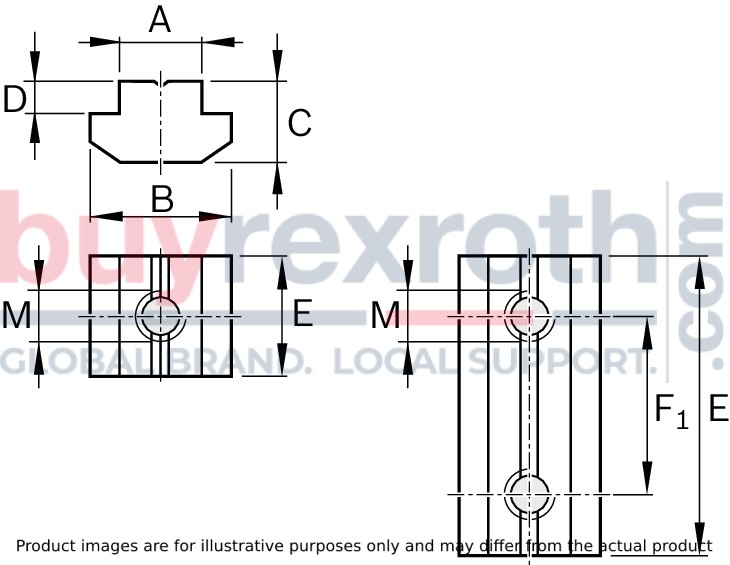

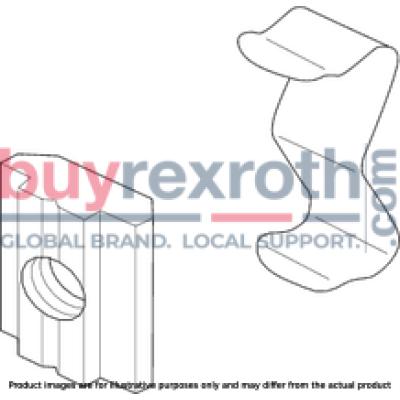

The Bosch Rexroth T-SLOT STONE N10 M4 (R344701201) is a mechanical accessory designed for use with linear axes. This particular model belongs to the product group of sliding blocks, which are integral components in the construction and maintenance of modular linear axis systems. The T-SLOT STONE N10 M4 is crafted to ensure a secure and precise fit within the T-slot of a linear axis, providing a reliable foundation for various mounting and fixture tasks. This model boasts specific design features that cater to its functionality, including an optimal tightening torque for its fixing screws. This torque specification ensures that the sliding block remains firmly in place during operation, maintaining the integrity of the assembly under dynamic loads. The recommended number of sliding blocks for effective performance is six pieces per meter and side when using one thread, ensuring uniform distribution and support along the length of the linear axis. The T-SLOT STONE N10 M4 is compatible with certain spring R outer diameters, indicating its versatility in pairing with different sizes and types of springs within Bosch Rexroth's linear motion systems. This compatibility extends to various nominal sizes denoted by CKKCKR, further showcasing its adaptability to meet diverse application requirements. In summary, the Bosch Rexroth T-SLOT STONE N10 M4 is a specialized component designed for securing elements to linear axes with precision and strength. Its recommended usage parameters and compatibility with other system components make it an essential item for users seeking reliable mechanical accessories within their linear motion setups.
