$1.45 USD
Availability: 349 In Stock
Available for immediate shipmentQty: 1 Delivered as early as January 13, 2025 when ordered in 6 hours and 29 minutes.
$1.45 USD
Qty: 1 Delivered as early as January 13, 2025 when ordered in 6 hours and 29 minutes.
Qty: 1 Delivered as early as April 1, 2025 when ordered in 6 hours and 29 minutes.

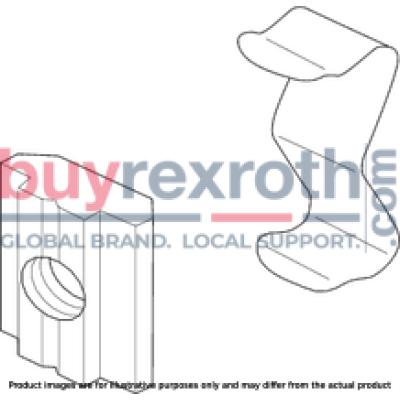

3D CAD | Download 3D CAD |
3D CAD | Download 3D CAD |
3D CAD | Download 3D CAD |
3D CAD | Download 3D CAD |
Tightening torque of fixing screws footnote | at friction factor 0.125, in accordance with strength class 8.8 |
Size A | 13 |
Productgroup ID | 17 |
Size F | 13 |
Mechanical accessories for linear axes | Sliding blocks |
Outer diameter D | 8 |
Size D | 8 |
Size G thread | M6 (1x) |
Tightening torque of fastening screws | 9.5 |
Size B | 6 |
Weight | 0.00822 |
Size C | 10 |
Nominal size | MKK-/MKR-/MLR-110 |

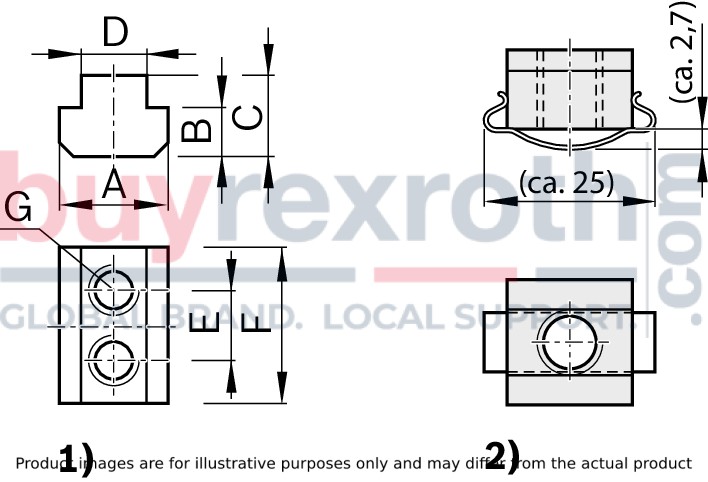

Size |
Part number |
MA 3) |
Nm |
||
MKK-/MKR-/MLR-110; TKK-155-AL | R344700101 | 9.5 |
MKK-/MKR-110; TKK-155-AL | R039175003 | |
MKK-/MKR-165; MKR-145 | R344700301 | |
R344700201 | 23 | |
R039175004 | ||
MKK-/MKR-165; MKR-145; TKK-455-AL | R344700601 | 46 |
R345403049 1) | - | |
MKK-/MKR-065/-080/-110 | R117509008 2) |
1) | Fixing spring material number R345403049 for sliding block R344700601 |
2) | Sliding block for fastening magnetic switches |
3) | for friction factor 0.125, as per strength class 8.8 |
Symbol |
Description |
Unit |
MA |
Tightening torques of fastening screws |
Nm |
1) | Sliding blocks |
2) | Fixing spring material number R345403049 for sliding block R344700601 |
Size |
Part number |
A |
B |
C |
D |
E |
F |
G |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||
MKK-/MKR-/MLR-110; TKK-155-AL | R344700101 | 13 | 6 | 10 | 8 | - | 13 | M6 (1x) |
MKK-/MKR-110; TKK-155-AL | R039175003 | 9 | 20 | M6 (2x) | ||||
MKK-/MKR-165; MKR-145 | R344700301 | 15 | 12 | 10 | - | 15 | M6 (1x) | |
R344700201 | M8 (1x) | |||||||
R039175004 | 15 | 30 | M8 (2x) | |||||
MKK-/MKR-165; MKR-145; TKK-455-AL | R344700601 | 19 | 8.8 | - | 19 | M10 (1x) | ||
R345403049 1) | - | - | - | - | - | |||
MKK-/MKR-065/-080/-110 | R117509008 2) |
1) | Fixing spring material number R345403049 for sliding block R344700601 |
2) | Sliding block for fastening magnetic switches |
