MALE CONNECTOR

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

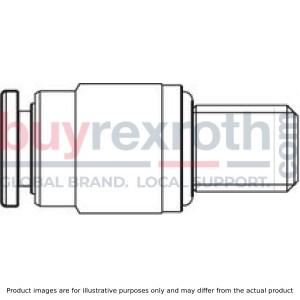

The Bosch Rexroth MALE CONNECTOR (R341703509) is a specialized fitting designed for secure and reliable connections in profiled rail systems. This straight plugin connector is tailored for ball rail systems, featuring a threaded M6 size that ensures a tight and precise fit. As part of the product group ID, this male connector is categorized under accessories for profiled rail systems, indicating its utility in enhancing or maintaining the function of linear guide setups. With dimensions specified by size d and size SW, the Bosch Rexroth MALE CONNECTOR is engineered to accommodate specific installation requirements. The nominal size M designation confirms its compatibility with standard sizing, making it an essential component for users needing to adhere to industry norms. Additionally, this fitting is designed as a push-in connector suitable for both plastic tubes and metal pipes, offering versatility in its application across different mediums. It's important to note that this male connector should not be used with Ball Runner Blocks that have accessories on the end face. This restriction highlights the importance of understanding the compatibility and limitations when integrating components within complex systems. The inclusion of this Bosch Rexroth male connector in your setup signifies a commitment to quality and precision in constructing durable and efficient linear motion applications.
