BALL GUIDE RAIL CARBON STEEL KSE-035-SNS-N

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

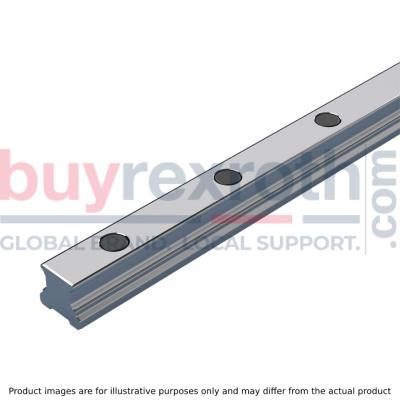

The Bosch Rexroth B.GUIDE RAIL CS (R205530451) is a high-precision guide rail designed for various linear motion applications. This BSCL ball guide rail is distinguished by its slimline width, normal length, and standard height, conforming to the SNS format. The guide rail is constructed from carbon steel CS, ensuring durability and robustness in operation. It features a fastener MA design that allows bolting from above, simplifying installation processes. The product comes with plastic caps as cover AK to protect the ends and maintain the system's integrity. The B.GUIDE RAIL CS offers a standard accuracy class and is delivered in factory lengths of four meters without end machining. These rails are suitable for T profiled rail systems of size N with tolerance profiled systems in millimeters, while also accommodating size S profiled rail systems. The dynamic load capacity of this guide rail is noteworthy, calculated based on a travel life of 100,000 meters. It has a mass of 4.2 kg/m and can handle a maximum length (Lmax) within the recommended specifications. The pitch T for the guide rail system ensures compatibility with various setups. Moreover, it includes dynamic torsional moment load capacity Mt details that are essential for understanding the loads it can sustain during operation over its designated travel life. The nominal size and recommended rail length formula provided (L = nB * T + 2mm) assist in selecting the appropriate length based on specific application requirements. The B.GUIDE RAIL CS by Bosch Rexroth is an essential component for linear motion systems requiring precision guidance with reliable performance under dynamic loads. Its standardized dimensions and compatibility features make it versatile for use in multiple industrial applications where precise linear movement is critical.
