SINGLE CAM BEARING LWA-052-SKS-FN-E-0

Manufacturer: Bosch Rexroth

Material #: R190315210

Model : SINGLE CAM BEARING LWA-052-SKS-FN-E-0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth SINGLE CAM BEARING LWA-052-SKS-FN-E-0 (R190315210) is a precision component designed for linear motion applications. This cam roller single bearing boasts an SKS format, which denotes a slimline width, short length, and standard height for compact integration into machinery. Constructed with an aluminum runner block body, it offers a standard load carrying capacity suitable for a wide range of uses. The economic accuracy class E indicates that this model has been optimized for cost-effectiveness without compromising on performance. This runner block is engineered without preservation or initial lubrication and does not include attachment elements on either the left or right front reference edges. It features an integrated lube nipple and comes in a standard version with the overall length of the runner block tailored to user requirements. The distance between runner blocks on table construction can be freely selected, providing flexibility in design. Featuring zero-clearance adjustment via socket hex screws located on the rear side of the runner blocks, this cam bearing ensures precision alignment. It is equipped with tough all-around sealing that delivers exceptional wiping action to maintain cleanliness and efficiency during operation. Grease lubrication is recommended to ensure smooth motion. The SINGLE CAM BEARING LWA-052-SKS-FN-E-0 is capable of handling maximum static loads due to resulting forces in both y and z directions (Fy max and Fz max respectively), as well as dynamic load capacities in y and z directions (Cy and Cz). It can operate effectively within a temperature range from -20°C to +80°C, accommodating various working environments. Designed for use with Rexroth's profiled rail systems sizes A, B, E, H, this cam roller guide provides versatility across different system sizes while offering self-aligning capabilities to compensate for any misalignments. With its robust design parameters—including dynamic and static torsional moments around multiple axes—it ensures reliable performance in handling and automation technology applications.

$150.53 USD

More are expected on February 19, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as February 19, 2025 when ordered in

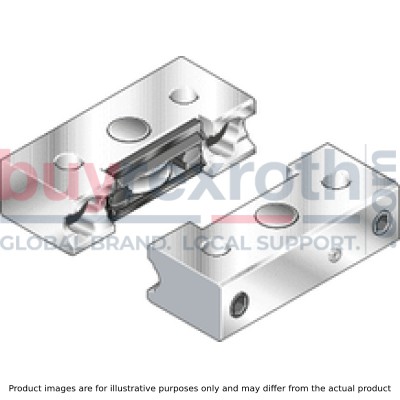

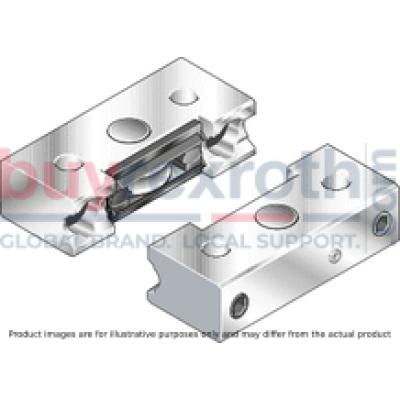

SINGLE CAM BEARING LWA-052-SKS-FN-E-0

The cam roller single bearing is characterized by the following product features: Format SKS, size 52, aluminum, accuracy economic, load class FN

The cam roller single bearing is characterized by the following product features:
Size 52
Format SKS: Width = slimline, length = short, height = standard
Runner block body made of aluminum
Standard load carrying capacity
Accuracy class E: Economic
Without preservation
Without initial lubrication
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Lube nipple integrated
Standard version
Overall length of the runner block = 104
Interchangeable element

Unpacked Weight: 0.376 kg

Rexroth cam roller guides were specially developed for handling and automation technology.

Product overview

Distance of the runner blocks on the table construction is freely selectable
Zero-clearance adjustment using socket hex screws on the rear side of the runner blocks.
Tough all-round sealing with excellent wiping action. Grease lubrication recommended.
On two half-rails

Data Sheet	Download Data Sheet
2D CAD	Download 2D CAD
2D CAD	Download 2D CAD
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Maximum static load due to a resulting force in the y-direction F0y max	2500
Height of runner block	29.5
Dynamic load capacity in z-direction Cz	10050
Maximum operating temperature	+80
Static load capacity in z-direction C0z	4900
Size E2 (profiled rail systems)	42
Maximum dynamic load in y-direction Fy max	2500
Dynamic load capacity in y-direction Cy	17150
Max. acceleration amax	50
Minimum operating temperature	-20
Static load capacity in y-direction C0y	10200
Size A (profiled rail systems)	44.5
Size A2 (profiled rail systems)	2
Self-aligning for compensation of misalignments	Without self-alignment
Maximum permissible linear speed vmax	10
Static torsional moment about the y-axis M0y	2,4 · b
Ball chain	Without roller chain
Size S1 (profiled rail systems)	22
Operating temperature	-20 °C ... +80 °C
Size O1 thread diameter footnote	Fastening screws are not included. For screws ISO 4014 8.8, a washer according to ISO 7089 is required.
Dynamic torsional moment around the z-axis Mz	8,5 · b
Static torsional moment about the z-axis M0z	5,1 · b
Maximum permissible dynamic torsional moment about the x-axis Mx max	0,75· a
Maximum permissible static torsional moment about the x-axis M0x max	1,2 · a
Height of runner block with guide rail	40
Dynamic torsional moment around the y-axis My	5,0 · b
Dynamic torsional moment around the x-axis Mx	5,0 · a
Static torsional moment about the x-axis M0x	2,4 · a
Maximum dynamic load in z-direction Fz max	1500
Size B (profiled rail systems)	104
Note: Maximum permissible speed vmax	For average load.
Maximum static load due to a resulting force in the z-direction F0z max	2500
Size O1 thread diameter	M10
Maximum permissible dynamic torsional moment about the z-axis Mz max	1,2 · b
Maximum permissible static torsional moment about the z-axis M0z max	1,2 · b
Size H (profiled rail system)	40
Size H3 (profiled rail systems)	2.5
Productgroup ID	17
Maximum permissible dynamic torsional moment about the y-axis My max	0,75· b
Size H2 (profiled rail systems)	14.9
Maximum permissible static torsional moment about the y-axis M0y max	1,2 · b
Size A1 (profiled rail systems)	65
Width of runner block	44.5
Length of runner block	104
Linear guide type	Cam roller guides
Size E1 (profiled rail systems)	66
Weight	0.376
Nominal size	52
Size H1 (profiled rail systems)	29.5

Technical data

Size		32	52	52-h	52-sh
Fy max	N	1000	2500	4500	8000
F0y max	N	1000	2500	4500	8000
Fz max	N	850	1500	2400	4800
F0z max	N	1400	2500	4000	7900
Mx max	Nm	0,42 · a	0,75· a	1,2 · a	2,4 · a
M0x max	Nm	0,7 · a	1,2 · a	2 · a	3,9 · a
My max	Nm	0,42 · b	0,75· b	1,2 · b	2,4 · b
M0y max	Nm	0,7 · b	1,2 · b	2 · b	3,9 · b
Mz max	Nm	0,5 · b	1,2 · b	2,2 · b	4 · b
M0z max	Nm	0,5 · b	1,2 · b	2,2 · b	4 · b
vmax 1)	m/s	10
amax	m/s²	50
Temperature stability		-20 °C ... +80 °C
Weight	kg	0.13	0.34	0.51	0.61

1)	For average load.
	Values Fmax and Mmax apply to four single bearing runner blocks.
	Attention: Not to be used for calculating the service life!
	For service life calculations use the load ratings and moments given in the tables.

Load ratings and moments for calculating the service life

Size		32	52	52-h	52-sh
Cy	N	7335	17150	27900	31000
C0y	N	4560	10200	15400	18200
Cz	N	4300	10050	16775	18400
C0z	N	2200	4900	7630	8750
MX	Nm	2,1 · a	5,0 · a	8,3 · a	9,3 · a
M0x	Nm	1,1 · a	2,4 · a	3,8 · a	4,4 · a
My	Nm	2,1 · b	5,0 · b	8,3 · b	9,2 · b
M0y	Nm	1,1 · b	2,4 · b	3,8 · b	4,3 · b
Mz	Nm	3,6 · b	8,5 · b	13,9 · b	15,5 · b
M0z	Nm	2,2 · b	5,1 · b	7,6 · b	9,1 · b

	Load ratings and moments for calculating the service life when using four single bearing runner blocks.
	Observe maximum permissible loads due to forces and moments as shown in the "Technical data” table!

Legend

Symbol	Description	Unit	Picture
Cy	Dynamic load capacity in y-direction	N
C0y	Static load capacity in y-direction	N
Cz	Dynamic load capacity in z-direction	N
C0z	Static load capacity in z-direction	N
Fy max	Maximum dynamic load in y-direction	N
F0y max	Maximum static load due to a resulting force in the y-direction	N
Fz max	Maximum dynamic load in z-direction	N
F0z max	Maximum static load due to a resulting force in the z-direction	N
Mx max	Maximum permissible dynamic torsional moment about the x-axis	Nm
M0x max	Maximum permissible static torsional moment about the x-axis	Nm
My max	Maximum permissible dynamic torsional moment about the y-axis	Nm
M0y max	Maximum permissible static torsional moment about the y-axis	Nm
Mz max	Maximum permissible dynamic torsional moment about the z-axis	Nm
M0z max	Maximum permissible static torsional moment about the z-axis	Nm
vmax	Maximum permissible speed	m/s
amax	Maximum acceleration travel	m/s2
MX	Dynamic torsional moment about the x-axis	Nm
M0x	Static torsional moment about the x-axis	Nm
My	Dynamic torsional moment about the y-axis	Nm
M0y	Static torsional moment about the y-axis	Nm
Mz	Dynamic torsional moment about the z-axis	Nm
M0z	Static torsional moment about the z-axis	Nm

1)	Funnel-type lube nipple ø 3 mm

Dimensions

Size		32	52	52-h	52-sh
A	mm	31	44.5	52	57
A1	mm	43	65	72.5	77.5
A2	mm	2
B	mm	87	104	118.5	123.5
E1	mm	54	66	76	81
E2	mm	27	42	45	47.5
H	mm	26	40	42
H1	mm	20.5	29.5	33.5
H2	mm	11	14.9	16.9
H3	mm	2.5		3
O1 1)	mm	M8	M10	M12
S1	mm	18	22	26

1)	Fastening screws are not included. Screws according to ISO 4014 8.8 require a washer according to ISO 7089.

Advantage

The adjusting screws allow a zero-backlash run. By means of the adjusting screws, the carriage can be slightly rotated around the z-axis, or displaced in the y-direction, and therefore optimally aligned.

Notes for mounting

Lubrication
